iFIT PRO-FORM CARBONE EL User Manual page 13

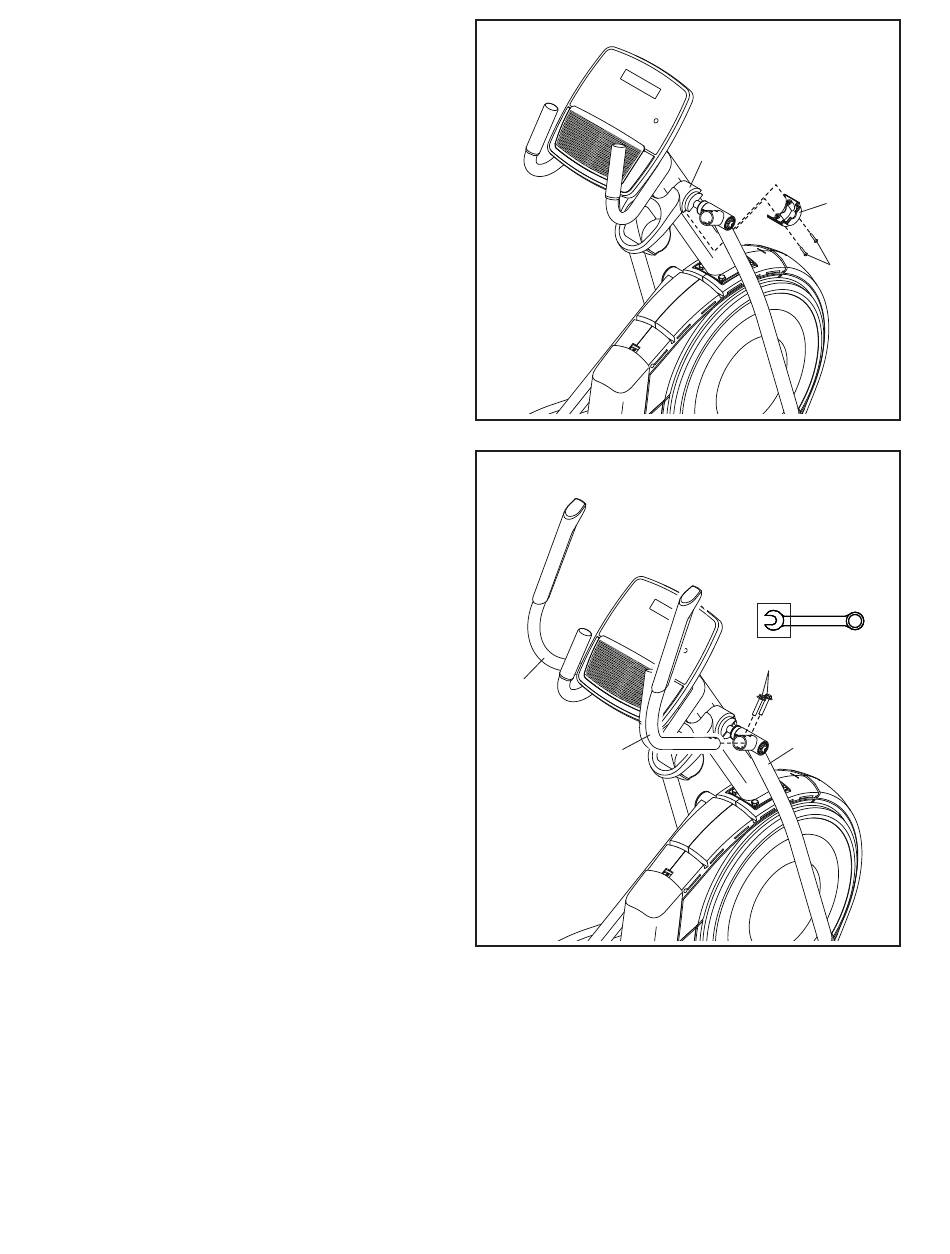

12. Orient a Lower Tray Cover (81) as shown, and
attach it to the right side of the Accessory Tray
(37) with two M4 x 16mm Screws (101).
Repeat this step on the other side of the
elliptical.
13. Identify the Right Upper Body Arm (61), orient it
as shown, and insert it into the Right Upper Body
Leg (60).
Attach the Right Upper Body Arm (61) with two
M8 x 41mm Screws (96); FIRMLY tighten the
Screws.
Repeat this step for the Left Upper Body
Arm (47).
12
13
47
61
13
37
81
101
Use the OPEN
END of the
included
wrench to
FIRMLY tighten
the Screws (96)
96
60
