6. Locate the wire tie (A) in the lower end of the
Upright (4).

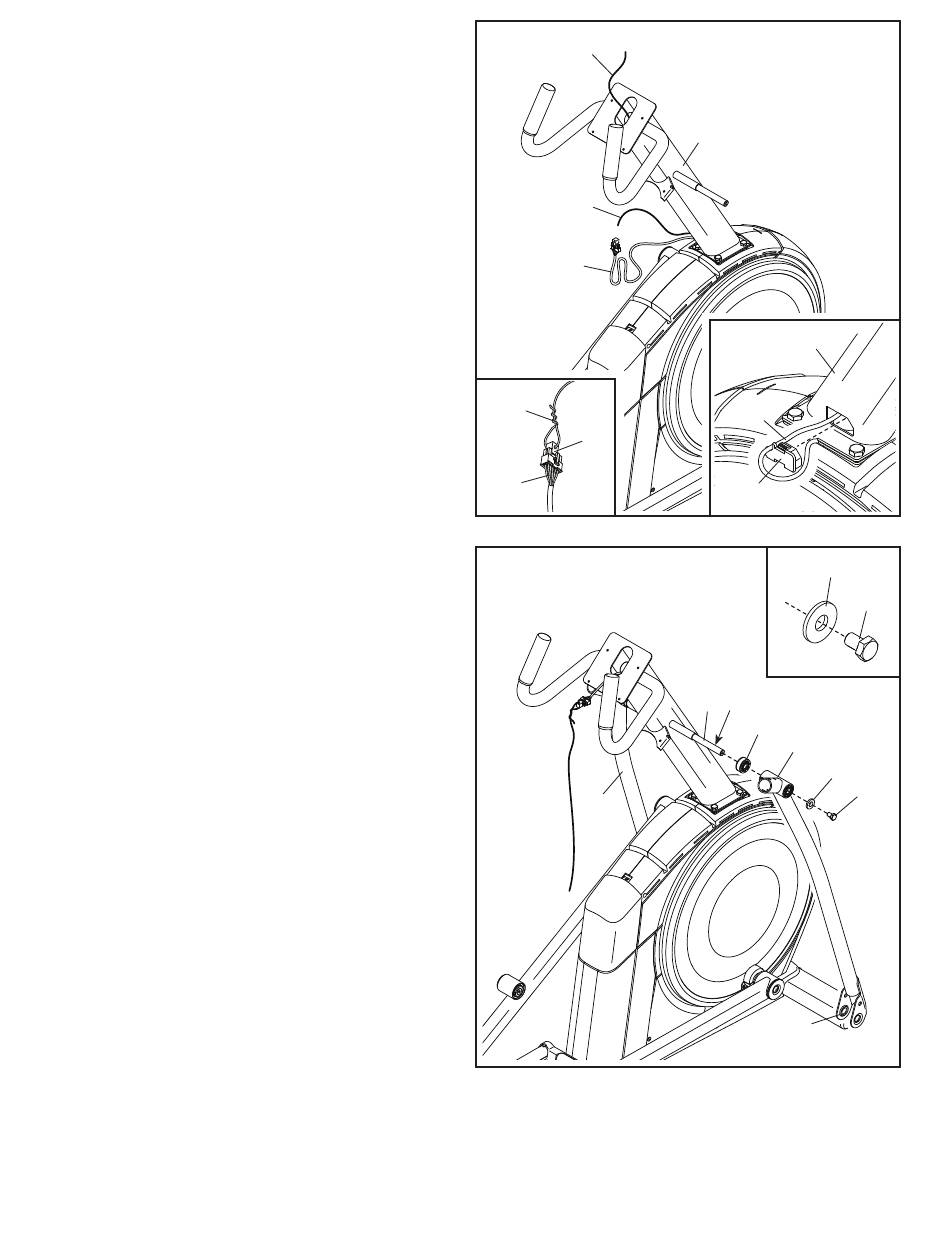

See the left inset drawing. Tie the wire tie (A)
to the wire pull (B) attached to the Main Wire
(110) as shown.
Then, pull the upper end of the wire tie (A)
until the Main Wire (110) is routed through the
Upright (4).
See the right inset drawing. Route the Main
Wire (110) through the notch in the Grommet
(99) as shown, and then press the Grommet into
the Upright (4).
To prevent the Main Wire (110) from falling
into the Upright (4), secure the Main Wire
with the wire tie (A).
7. Apply a thin coat of grease to the axle on the
right side of the Upright (4).
Next, slide a Pivot Spacer (54) onto the axle.
Then, identify the Right Upper Body Leg (60),
orient it so the bracket (G) is on the side
shown, and slide it onto the axle.
Attach the Right Upper Body Leg (60) with an
M8 x 13mm Screw (82) and an M8 x 28mm
Washer (97).
Repeat this step for the Left Upper Body
Leg (46).
