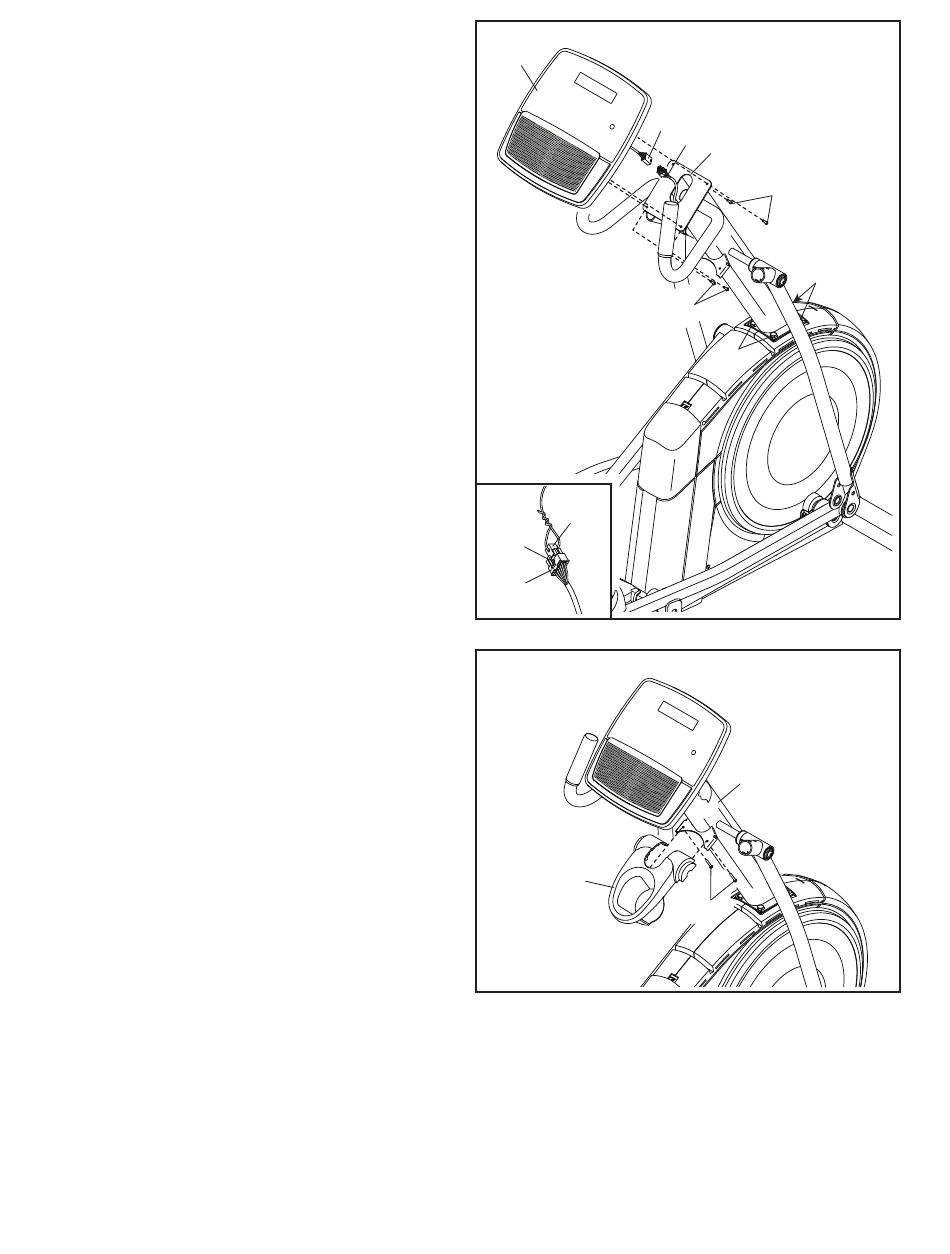

10. See step 5. FIRMLY tighten the four M10 x
25mm Screws (92).
See the inset drawing. Grip the connector on
the end of the Main Wire (110) extending from
the Upright (4). Then, press the small latch (D)
on the wire pull (B), and remove and discard the
wire pull.
While a second person holds the Console (7)
near the Upright (4), connect the Main Wire (110)
to the console wire (C).
IMPORTANT: The wire connectors should
slide together easily and snap into place
with an audible click. You must connect the
wires properly for your elliptical to function
properly.
Insert the excess wire into the Upright (4) or into
the Console (7).
Avoid pinching the wires. Attach the Console
(7) to the Upright (4) with four M4 x 16mm
Screws (101); start all four Screws, and then
tighten them.
11. Orient the Accessory Tray (37) as shown, and
attach it to the Upright (4) with two M4 x 16mm
Screws (101).
