INSTALLATION MANUAL

Parts List

1 Driver / left side bar
1 Passenger / right side bar
1 Driver / left
front mounting bracket
1 Passenger / right
front mounting bracket
2 Mounting bracket, rear
2 Bolt plate, M8
5 Hex bolt, M8
7 Flat washer, M8
7 Lock washer, M8
2 Hex nut, M8
2 Plastic retainer, M8
4 Hex bolt, M10
4 Flat washer, M10
4 Lock washer, M10
4 Bolt / nut plate, M12 stud
4 Hex bolt, M12
4 Flat washer, M12 x 32mm
4 Flat washer, M12
8 Lock washer, M12
4 Hex nut, M12
4 Plastic retainer, M12

Tools Required

Torque wrench Socket, 13mm
Utility knife Socket, 16mm
Level Socket, 18mm
Level of Difficulty
Easy

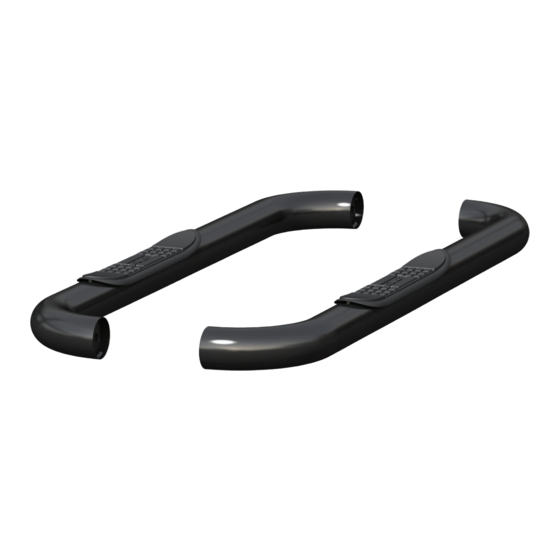

Product Image
Brackets
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product.
Do not use dish detergent, abrasive cleaners, abrasive pads,
wire brushes or other similar products that may damage the finish.
Refer to the table on page 2 when securing hardware during the
installation process to help prevent damage to the product or vehicle.
PAGE 1 • 205039-INS-RB • 800.798.0813 • NEED ASSISTANCE?
205039
Scan
for helpful
install tips
Rear
Front
