Aries 205044 Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Easy
Parts List
2 3" Sidebars
1 Driver / left
front mounting bracket
1 Passenger / right
front mounting bracket
1 Driver / left
rear mounting bracket
1 Passenger / right
rear mounting bracket
1 Driver / left
front support bracket
1 Passenger / right
front support bracket
1 Driver / left
rear support bracket
1 Passenger / right side
rear support bracket
4 Hex bolts, 1/2" x 2"
4 Flat washers, 1/2" x 1-1/2" x 1/8"
4 Lock washers, 1/2"
12 Nylon lock nuts, 8-1.25mm
12 Flat washers, 8mm x 24mm x 2mm
* Footnote
Torque Specifications
M6 bolt 3 ft-lbs.
M8 bolt 7 ft-lbs.
M10 bolt 16 ft-lbs.
M12 bolt 28 ft-lbs.
1/4" bolt 3 ft-lbs.
5/16" bolt 7 ft-lbs.
3/8" bolt 16 ft-lbs.
7/16" bolt 20 ft-lbs.
1/2" bolt 28 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM

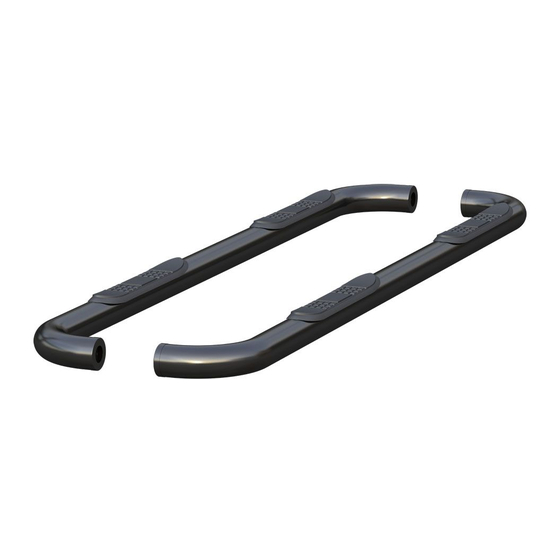

Product Photo
Brackets and Hardware
Passenger / right
rear mounting bracket
Passenger / right front
mounting bracket
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the last page of this manual for warranty and product registration information.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
• NEED ASSISTANCE? • 877.287.8634
Front
Passenger / right
rear support bracket
Passenger / right
front support bracket
• 205044-INS-RB • PAGE 1
205044
Driver / left
rear mounting bracket
Driver / left
rear support bracket
Driver / left
front support bracket
Driver / left front
mounting bracket
Rear
