INSTALLATION MANUAL
Parts List
1
Driver / left side bar
1
Passenger / right side bar
1
Driver / left
mounting bracket, front
1
Passenger / right
mounting bracket, front
1
Driver / left
mounting bracket, rear
1
Passenger / right
mounting bracket, rear
1
Driver / left brace bracket,
front (02 - 10 1500 Quad cab)
1
Passenger / right brace bracket,
front (02 - 10 1500 Quad cab)
1
Driver / left brace bracket,
front (02 - 05 2500 / 3500
Quad cab)
1
Passenger / right brace bracket,
front (02 - 05 2500 / 3500
Quad cab)
1
Driver / left brace bracket,
front (06 - 10 2500 / 3500
Quad cab)
1
Passenger / right brace bracket,
front (06 - 10 2500 / 3500
Quad cab)
2
T-bolt plate, 10mm
2
Hex bolt, 10mm x 40mm
6
Flat washer,
10mm x 25mm x 2mm
4
Lock washer, 10mm
4
Hex nut, 10mm
4
Half-tooth hex bolt,
12mm x 120mm
4
Hex bolt, 12mm x 60mm
8
Flat washer,
12mm x 30mm x 2.5mm
4
Flat washer,
12mm x 35mm x 3mm
8
Lock washer, 12mm
4
Hex nut, 12mm
4
Flat washer, 14mm x 48mm x 3mm
Level of Difficulty
Easy

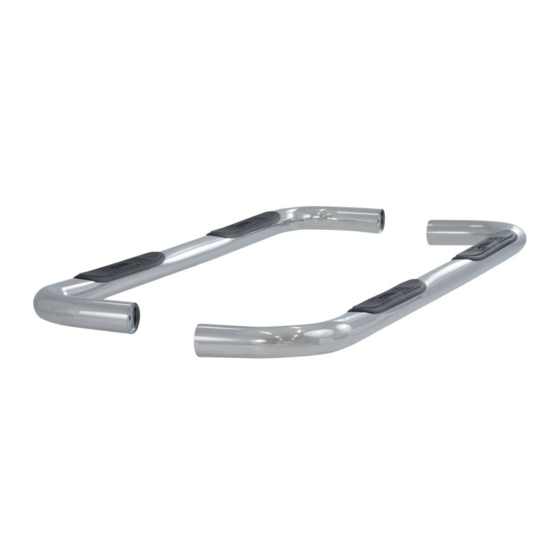

Product Image
Brackets and Hardware
Rear brackets
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may
contain abrasives that could damage the finish.
For stainless steel and aluminum, polish may be used to clear small scratches
and scuffs on the finish. Mild soap may be used also to clean the product.
PAGE 1 • 205008-2-INS-RA • 800.798.0813 • NEED ASSISTANCE?
Front
brace
Front brackets
02 - 10
205008-2
Scan
for helpful
install tips
Rear
Front
Front
Front
brace
brace
Bolt
plate
02 - 05
06 - 10
• ARIESAUTOMOTIVE.COM
Advertisement
Table of Contents
Related Manuals for Aries 205008-2
Summary of Contents for Aries 205008-2
- Page 1 Mild soap may be used also to clean the product. 12mm x 30mm x 2.5mm Flat washer, 12mm x 35mm x 3mm Lock washer, 12mm Hex nut, 12mm Flat washer, 14mm x 48mm x 3mm • ARIESAUTOMOTIVE.COM PAGE 1 • 205008-2-INS-RA • 800.798.0813 • NEED ASSISTANCE?
- Page 2 Congratulations on the installation of your new Locate the correct brackets. Secure the brace bracket aries 3" round side bars. With the side bars installed, to the T-bolt plate with one 10mm flat washer, one periodic inspections should be performed to ensure all 10mm lock washer and one 10mm nut.
- Page 3 Front Brace Figure 1.3 – Driver-Side Front Mount Assembly View (2500 / 3500 Series Set-Up) Figure 1.4 – 1500 Front Mount Assembly Figure 1.5 – 2500 / 3500 Front Mount • ARIESAUTOMOTIVE.COM PAGE 3 • 205008-2-INS-RA • 800.798.0813 • NEED ASSISTANCE?
