INSTALLATION MANUAL
Parts List
1
Driver side / left side bar
1
Passenger side / right side bar
2
Mounting bracket, front
2
Mounting bracket, rear
2
Mounting brace, front
2
Mounting brace, rear
4
Self-tapping screw,
6mm x 25mm
4
Hex bolt, 10mm x 25mm
8
Flat washer, 10mm
2
Lock washer, 10mm
4
Hex nut, 10mm
4
Hex bolt, 12mm x 50mm
4
Hex bolt, 12mm x 120mm
8
Flat washer, 12mm
8
Lock washer, 12mm
Level of Difficulty
Easy

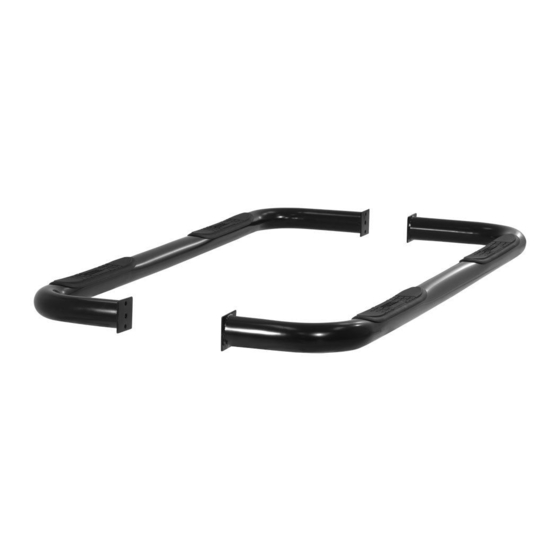

Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may
contain abrasives that could damage the finish.
For gloss black finishes, mild soap may be used to clean the product.
PAGE 1 • 205003-INS-RB • 877.287.8634 • NEED ASSISTANCE?
205003
Scan
for helpful
install tips
Rear
Front
• ARIESAUTOMOTIVE.COM
Advertisement
Related Manuals for Aries 205003
Summary of Contents for Aries 205003
- Page 1 Do not use any type of polish or wax that may contain abrasives that could damage the finish. For gloss black finishes, mild soap may be used to clean the product. • ARIESAUTOMOTIVE.COM PAGE 1 • 205003-INS-RB • 877.287.8634 • NEED ASSISTANCE?
- Page 2 Congratulations on the installation of your new 3. Fasten the front mounting brace bracket to the front ARIES 3" round side bars. With the side bars installed, mounting bracket using one 10mm x 25mm hex bolt, periodic inspections should be performed to ensure all two 10mm flat washers, one 10mm lock washer and mounting hardware remains tight.
