MultiModem ZDX Quick Start Guide

Modem Installation

Overview of the Connections
Turn off your computer. Place the modem in a convenient location,
and then connect it to your computer's serial port, the phone line, AC
power, and your phone (the phone is optional).

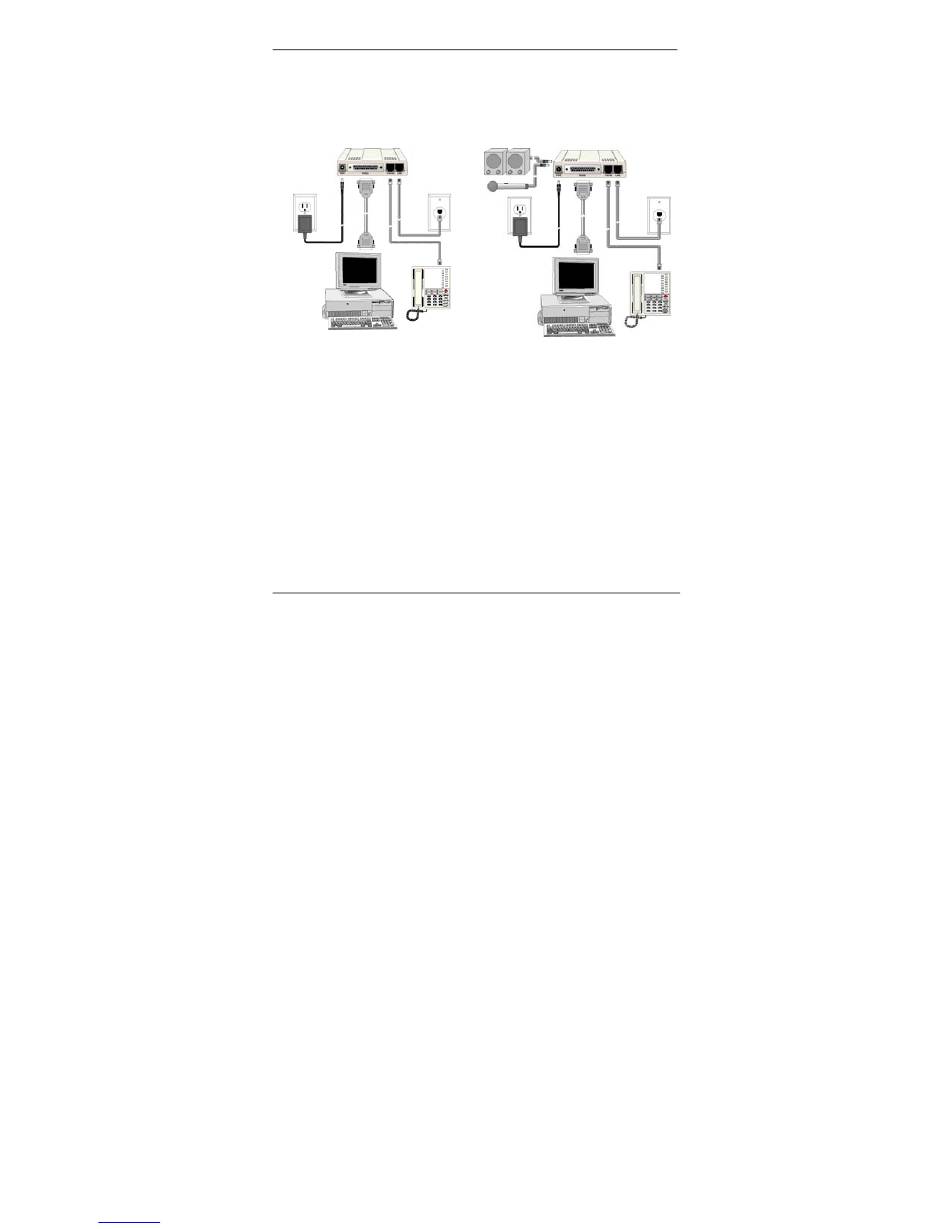

Connections Without Voice & Connections With Voice

Connect the Modem to Your PC

Plug one end of the RS-232 serial cable into the RS-232 connector
on the modem, and plug the other end into a serial port connector
on your computer..

Connect the Modem to the Telephone Line

Plug one end of the phone cable into the modem's LINE jack, and
the other end into a telephone wall jack. The phone cable is
included in your modem kit.
Important: The LINE jack is not interchangeable with the PHONE
jack. Do not plug the phone into the LINE jack or the line cable into
the PHONE jack.
Note: The Federal Communications Commission (FCC)
and Industry Canada impose certain restrictions on
equipment connected to public telephone systems.
4 Multi-Tech Systems, Inc.
