MT2834ZDX-Series Quick Start Guide

Modem Installation

Step 1: Attach the Self-Adhesive Feet

The modem comes with a set of self-adhesive plastic feet,
which you can optionally attach to the modem. To install, simply
peel them from their paper strip and press them into the
recesses on the bottom of the modem.

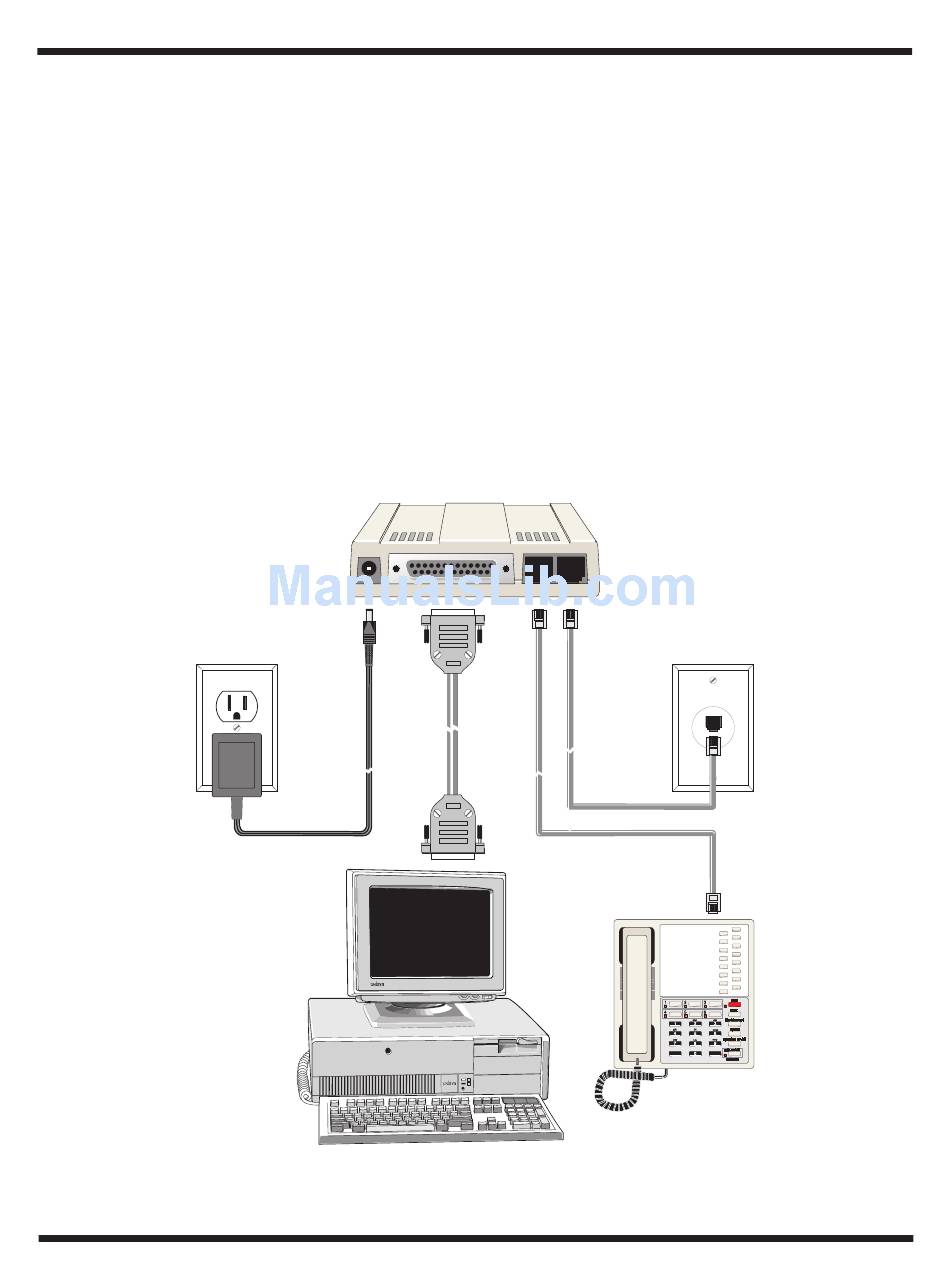

Step 2: Connect the Modem to Your System

Turn off your computer. Place the modem in a convenient
location, and then connect it to your computer's serial port, the
phone line, AC power, and your phone.
PWR RS232 PHONE LINE
