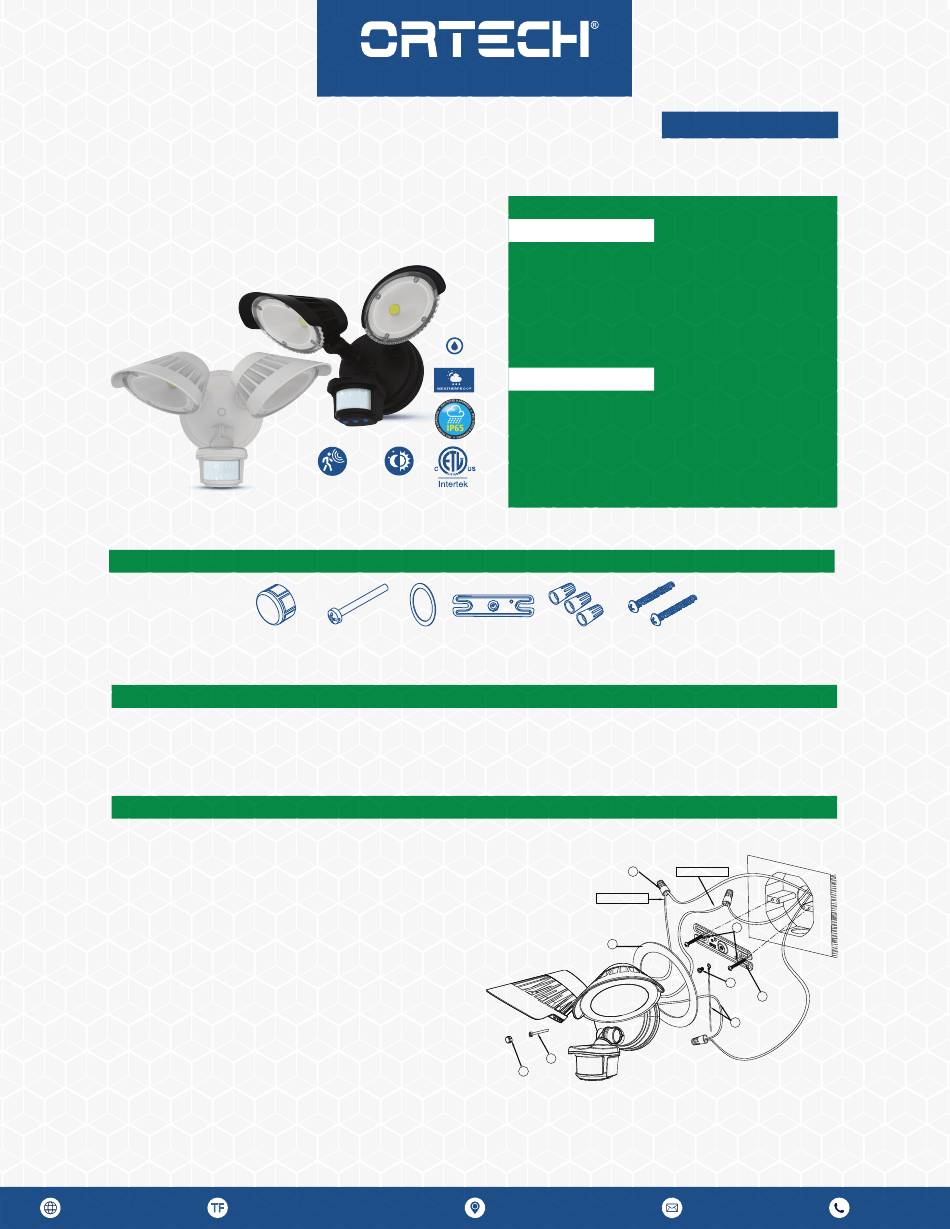

Ortech SSL-A2-5CCT Quick Start Manual

Before assembly, installation or operation of product, make sure all pats are present. Compare parts with package contents list and diagram on
previous page. lf any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for
replacement parts.
NOTE: DO NOT MOUNT ON THE GROUND, RECOMMENDED INSTALLATION HEIGHT IS 6½ FEET TO 10 FEET
1. Install the cross bar (D) to the junction box and secure with the (2)
mounting screws (F).
2. On the cross bar locate GND, attach the ground wire (G) with the
grounding Screw (G) to the cross bar.
3. Use a wire nut (E) to connect the ground wire (G) to the house ground
wire (typically copper). For proper connection, place wire nut over wires
and twist clockwise until tight.
4. Connect supply wires with wire nuts (E) as shown in the figure above.
• Black supply wire connects to the Black power supply wire (Live).
• White product wire connects to the White supply wire (Neutral).
5. You may use the optional gasket (C) at this time.
6. Install the light fixture to the cross bar (D). Use silicon sealant (not
included) around the perimeter of the light to seal for moisture.
7. Screw in the stainless steel screw (B) to hold fixture in place. Insert
plastic screw cover (A) into screw hole.
8. Turn on your electricity after the install has been completed.
9. Turn on power switch. (If power switch is not on, the light will not
cycle on or off).
ORTECH reserves the right to modify at any time, without notice, any or all of our product's features, designs, components
www.ortechindustries.ca 1.888.543.6473
Instruction Manual
PIR Motion D2D Mode
Sensor
HARDWARE CONTENTS (not actual size)
Plastic Screw Stainless Steel Gasket
Cove x 1 Screw x 1 x 1
MOUNTING AND WIRING THE LIGHT
and specifications to meet market changes.
13376 Comber Way,
Surrey, BC V3W 5V9
WARNING
WARNING — THE INSTALLATION MUST BE CARRIED
OUT BY A QUALIFIED ELECTRICIAN.
▪ LED Security Lights are suitable for using in wet
locations
▪ Please keep the LED Security lights away from any
corrosive substance, and please use dry cloth when
you clean it
▪ Before installation or maintenance, please
disconnect the power to prevent electric shock
Wet Location
CAUTION
PLEASE READ INSTRUCTION BEFORE
COMMENCING INSTALLATION AND RETAIN FOR
FUTURE REFERENCES.
▪ Electrical products can cause death or injury, or
damage to property.
▪ If in any doubt about the installation or use of this
product, consult a competent electrician.
Mounting Cross Wire Nuts
Bar x 1 x 3
PREPARATION
Black to Black
B
A
205 Summerlea Road,
Brampton, Ontario
SECURITY LIGHTS
SSL-A2-5CCT
Mounting Screws
x 2
E
White to White
F
C
H
D
G
info@ortechindustries.com 604.543.6473
