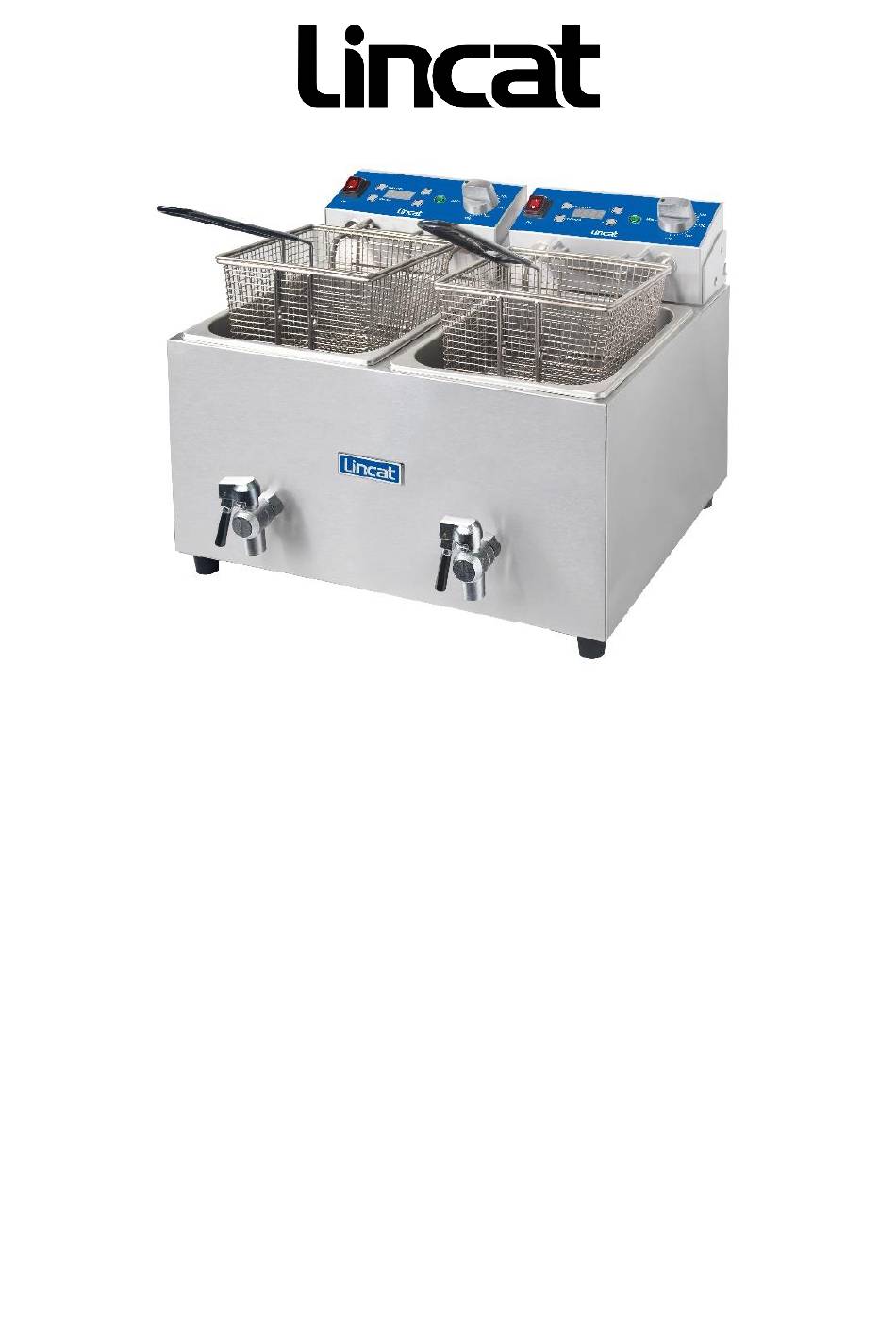

Electric Fryer
MODEL: LPDF LPDF2 LPDFT LPDF2T
Installation and Operation Instructions
ATTENTION:
This manual contains important safety instructions
which must be strictly followed when using this equipment.
ATTENTION: These models are designed, built, and sold for
commercial use only. If these models are positioned so the public can
use the equipment, make sure that cautions, warnings, and operating
instructions are clearly posted near each unit so that anyone using the
equipment will use it correctly and not injure themselves or harm the
equipment.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lincat LPDF
Summary of Contents for Lincat LPDF
- Page 1 Electric Fryer MODEL: LPDF LPDF2 LPDFT LPDF2T Installation and Operation Instructions ATTENTION: This manual contains important safety instructions which must be strictly followed when using this equipment. ATTENTION: These models are designed, built, and sold for commercial use only. If these models are positioned so the public can...
-
Page 2: Table Of Contents
Installation and Operation Instructions Catalogue Foreword………………………………………………………… 3 Safety tips ………………………………………………………4-7 Introduction ………………………………………………………8 Specifications………………………………………………………9 Operation………………………………………………………10-11 Cleaning and maintenance …………………………………… 12 Troubleshooting ………………………………………………13-14 Explosion view and spare part list ………………………… 15-22 Compliance…………………………………………………… 23-24 Circuit diagram ……………………………………………… 25-26... -
Page 3: Foreword
Foreword Congratulations on your purchase of LINCAT commercial cooking equipment. LINCAT takes pride in the design and quality of our products. When used as intended and with proper care and maintenance, you will experience years of reliable operation from this equipment. -
Page 4: Safety Tips
WARNING: A factory authorised agent should handle all maintenance and repair. Before doing any maintenance or repair, contact LINCAT. CAUTION: In the installation or cleaning or in use process, prevent water from splashing into the oil to avoid accidental burns or injury. - Page 5 Do not remove any components or service panels on this product. The manufacturers of LINCAT products take every care to ensure that all products are safe. Steel cutting procedures used to manufacture these items result in sharp edges. These sharp edges are removed to...
- Page 6 Installation and Operation Instructions when in contact with this piece of equipment. Switch off the Fryer and remove the plug from the power socket before cleaning, draining oil, or filling with oil. Before filling new oil or cleaning every time, please cool oil to room temperature for hot oil can cause serious damage to the skin.
- Page 7 Installation and maintenance should be performed by a qualified installer who thoroughly read, understand, and follow the instructions. If you have questions concerning the installation, operation, maintenance, or service of this product, contact LINCAT. All the product of Lincat has been checked and test strictly before Delivery.
-
Page 8: Introduction
Installation and Operation Instructions Introduction Lincat fryer mainly consists of the following seven components： *Cover assembly *Basket *Oil pan *Electric box head assembly *Baffle Assy *Main body assembly *Manual If you found missing or damaged any of parts upon receipt of the... -
Page 9: Specifications
Installation and Operation Instructions Specifications Dimensions (mm) Voltage Power Capacity Oil Pan Model （KG） Wide Deep Hight LPDFT 2900 220- LPDF2T 2×2900 2×1 2×8L 240V LPDF 2800 50HZ LPDF2 2×2800 2×0.7 2×5L... -
Page 10: Operation
Installation and Operation Instructions Operation It is the user's responsibility to ensure compliance with the codes of use and safety regulations relating to product placement, installation, electrical safety, and fire prevention. Place the appliance on a flat workbench which size is more than 20cm larger than the maximum projection of the appliance. - Page 11 Installation and Operation Instructions Fitting head unit to the Fryer body. 1. MODEL: LPDF / LPDF2 *Put the head unit onto the main body of the appliance, using the tabs(A) on the rear of head unit and the lugs(B) on the rear of the main body.
-
Page 12: Cleaning And Maintenance
• Check the temperature with a suitable probe thermometer; 40º C is the MAXIMUM temperature at which oil should be removed. • For best performance, Lincat recommend that the appliance is cleaned after each day of operation. • Remove the head unit for ease of cleaning. -
Page 13: Troubleshooting
Installation and Operation Instructions Troubleshooting Problem Cause Remedy The appliance is not switched Check the appliance is plugged in correctly and switched on Plug and lead are damaged Call agent or qualified technician Fuse in the plug has blown Replace the plug fuse The appliance is not Power supply Check power supply... - Page 14 2. Press the small reset switch down until it clicks, using a blunt pointed instrument. 3. The appliance is now reset and can be used as normal. If the Lincat Fryer does not operate, please check the following before placing a service call. • It is connected to the correct power supply.
-
Page 15: Explosion View And Spare Part List
Installation and Operation Instructions Explosion View And Spare Part List MODEL: LPDF... - Page 16 Installation and Operation Instructions...
- Page 17 Installation and Operation Instructions MODEL: LPDF2...
- Page 18 Installation and Operation Instructions...
- Page 19 Installation and Operation Instructions MODEL: LPDFT...
- Page 20 Installation and Operation Instructions...
- Page 21 Installation and Operation Instructions MODEL: LPDF2T...
- Page 22 Installation and Operation Instructions Pin NO.
-
Page 23: Compliance
For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area. Lincat parts have undergone strict product testing to comply with regulatory standards and specifications set by international, independent, and federal authorities. - Page 24 Lincat. Every effort is made to ensure all details are correct at the time of going to press, however, Lincat reserve the...
-
Page 25: Circuit Diagram
Installation and Operation Instructions Circuit Diagram Model: LPDF/LPDF2... - Page 26 Installation and Operation Instructions Model: LPDFT/LPDF2T This circuit diagram has been provided to assist qualified electricians, only Lincat service agents or qualified electricians should carry out repairs if required. Do not remove any components or service panels on this product.
- Page 28 Lincat, if not, the warranty may be void. ATTENTION Any parts that aren’t made by Lincat may void warranty. ATTENTION Lincat and manufacturer of Lincat keep the right to modify the product. Lincat Limited Whisby Road Lincoln LN6 3QZ United Kingdom Version A...
