Amphenol Charles SH52-243024xNER General Description And Installation

Universal broadband enclosure
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1.
GENERAL INTRODUCTION ...................................................... 1
1.1. Document Purpose ................................................................... 1
1.2. Product Purpose ....................................................................... 1
1.3. Product Mounting and Location ............................................... 1
2.
PRODUCT DESCRIPTION ........................................................... 2
3.
INSTALLATION ............................................................................ 4
3.1. Inspecting the Product .............................................................. 4
3.2. Following and Using Safety Precautions.................................. 4
3.3. Obtaining Tools and Equipment ............................................... 4
3.4. Preparing the Installation Site .................................................. 4
3.5. Lifting the SHRD52 .................................................................. 5
3.6. Mounting the SHRD52 ............................................................. 5
3.7. SHRD52 Wiring and Equipment ............................................... 6
3.8. Customer Equipment Mounting ................................................ 6
4.
PERIODIC MAINTENANCE ........................................................ 8
5.
6.
WARRANTY & CUSTOMER SERVICE ................................... 10
7.
SPECIFICATIONS ....................................................................... 10

1. GENERAL INTRODUCTION

1.1. Document Purpose

This document provides general information for the SH52-243024xNER universal backplane radio shroud. Figure 1 shows a closed front
view of the enclosure.
Hereafter, the Charles Universal Broadband Enclosure SH52-243024xNER shroud will be referred to as the "SHRD52."

1.2. Product Purpose

This SHRD52 provides outdoor mounting for radio equipment. Brackets for the specified configuration ship with the SHRD52. All radio
equipment is customer supplied.

1.3. Product Mounting and Location

This enclosure is suitable for outside plant-type (OSP) locations and those that may require NEC compliance. The outdoor, weather-
resistant SHRD52 is to be mounted on a pole (using a pole-mount bracket kit, purchased separately). The installer connects the power,
fiber, and copper connections. Detailed mounting and installation information is covered in Section 3.
©Copyright 2024 Charles Industries LLC. All rights reserved.
Availability of features and technical specifications herein are subject to change without notice.
Charles is a registered trademark of Charles Industries.
Charles Universal Broadband Enclosure
SH52-243024xNER
General Description and Installation

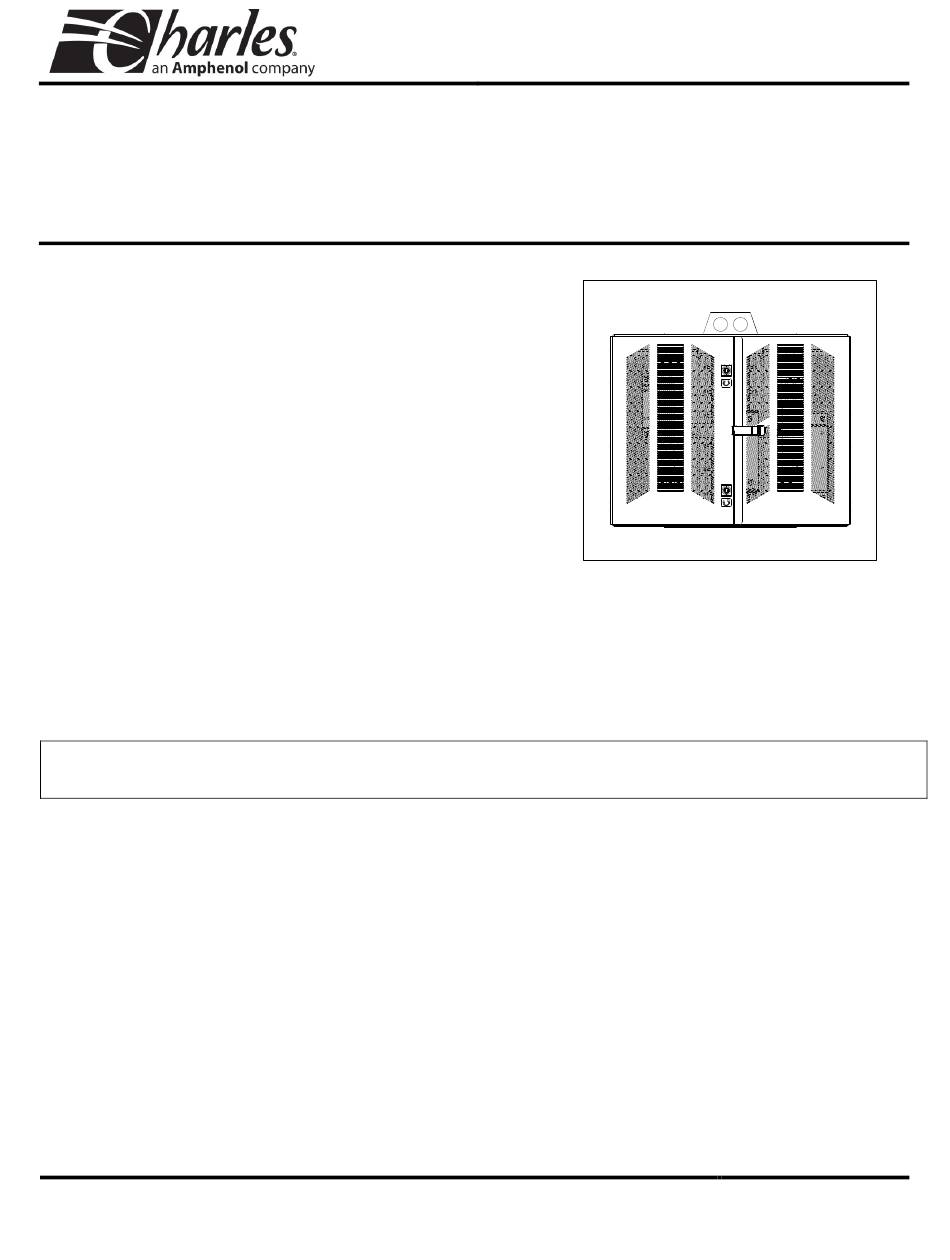

Figure 1
-NOTE-
LT-SH52-243024
2
Printing, October 7, 2024
nd
Front View of the SHRD52
Page 1 of 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Charles SH52-243024xNER and is the answer not in the manual?

Questions and answers

Related Manuals for Amphenol Charles SH52-243024xNER

Summary of Contents for Amphenol Charles SH52-243024xNER

  • Page 1: Table Of Contents

    LT-SH52-243024 Printing, October 7, 2024 Charles Universal Broadband Enclosure SH52-243024xNER General Description and Installation GENERAL INTRODUCTION ............1 1.1. Document Purpose ..............1 1.2. Product Purpose ............... 1 1.3. Product Mounting and Location ..........1 PRODUCT DESCRIPTION ............2 INSTALLATION ................4 3.1.

  • Page 2: Product Description

    LT-SH52-243024 2. PRODUCT DESCRIPTION The SHRD52 is a vented radio enclosure with a universal backplane that accommodates Charles radio mounting brackets. The customer installs the radio equipment onto the backplane. Figure 2 shows the SHRD52 dimensions. Figure 3 shows the main components of the SHRD52. 9.26 5.75 5.75 (3) Ø1.75/2.50 KNOCKOUTS DOOR...
  • Page 3 LT-SH52-243024 LIFTING EYES MOUNTING BRACKET FOR MOUNTING BRACKET FOR ERICSSON FRONTHAUL ERICSSON AC-08 POWER SUPPLY 6585 DWDM (2) MOUNTING BRACKETS FOR MOUNTING BRACKET FOR ERICSSON 220X/440X RADIOS ERICSSON 8863 RADIO DRAW LATCH (2) QTR TURN 216 STYLE PADLOCKABLE LATCHES (2) 2X8 POSITION WIND LATCH GROUND BARS (1 PER DOOR)

  • Page 4: Installation

    LT-SH52-243024 3. INSTALLATION 3.1. Inspecting the Product The SHRD52 is shipped lying down on a skid. Remove the bolts, unpack the unit, and dispose of the packaging material. -INSPECTION NOTE- Visually inspect the unit for damages prior to installation. If the equipment was damaged in transit, immediately report the extent of the damage to the transportation company.

  • Page 5: Lifting The Shrd52

    LT-SH52-243024 3.5. Lifting the SHRD52 See Table 1 for SHRD52 weight. Charles recommends the following procedure for lifting the SHRD52. 3.5.1. Required Equipment One derrick (crane) capable of lifting the SHRD52 • • Two lifting slings or chains with each having a 2,500 lbs. capacity •...

  • Page 6: Shrd52 Wiring And Equipment

    LT-SH52-243024 3.7. SHRD52 Wiring and Equipment After the SHRD52 is properly mounted in the desired location, apply No-Ox where bus bar and other 2-hole lug connections will be made. Install ground and power connections. Always ground the equipment first, before making any other connections. WARNING Perform all bonding and grounding connections prior to any electrical and communications connections.
  • Page 7 LT-SH52-243024 3.8.1. SHRD52-243024xNER – Configuration 1 This configuration includes the following brackets. Coordinates for the bracket hooks are shown in the table and figure below. C3, D3, C10, D10 (2) Ericsson 220x/440x radios G3, H3, G10, H10 (1) Ericsson 8863 radio V8, V8, U18, Y18 (1) Ericsson AC-08 power supply S2, S10...
  • Page 8 LT-SH52-243024 3.8.2. SHRD52-243024xNER – Configuration 2 This configuration includes the following brackets. Coordinates for the bracket hooks are shown in the table and figure below. C3, D3, C10, D10 (2) Ericsson 4435 radios X3, Y4, X10, Y10 (1) Ericsson FrontHaul 6585 DWDM P8, P16 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Figure 9...
  • Page 9 LT-SH52-243024 3.8.3. SHRD52-243024xNER – Configuration 3 This configuration includes the following brackets. Coordinates for the bracket hooks are shown in the table and figure below. C3, D3, C10, D10 (2) Ericsson 220x/440x radios G3, H3, G10, H10 (1) Ericsson 4435 radio X3, Y4, X10, Y10 (1) Ericsson FrontHaul 6585 DWDM P8, P16...

  • Page 10: Periodic Maintenance

    LT-SH52-243024 4. PERIODIC MAINTENANCE In the event that the enclosure must be opened in freezing conditions, use a narrow, pointed metallic object such as a screwdriver or chisel, along with a non-metallic device like a rubber mallet, to remove excessive ice buildup around the door and locking mechanism. A commercial aerosol de-icer spray can be used to free up locks and latches if needed.
