1. GENERAL INTRODUCTION

1.1. Document Purpose

This document provides general information for the CUBE-SS4C2288N2 and CUBE-SS4C2288N3of the Charles Industries' Universal

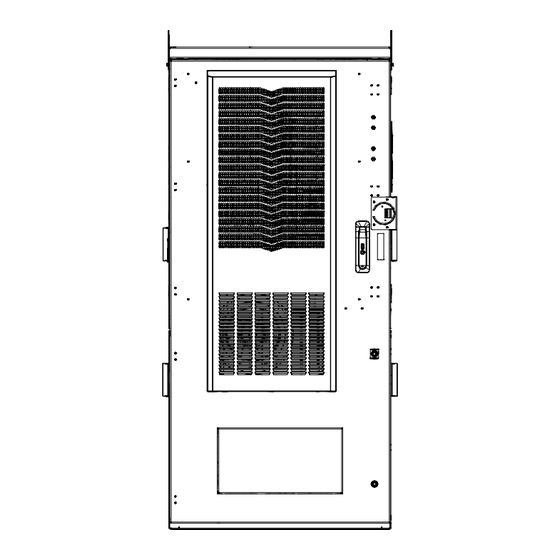

Broadband Enclosure (CUBE) product line. Figure 1 shows a closed front view of the enclosure.
Hereafter, the Charles Universal Broadband Enclosure CUBE-SS4C2288N2 and CUBE-SS4C2288N3 will be referred to as the "CUBE."

1.2. Product Purpose

The CUBE consists of a protective enclosure for an integrated system of electronic components and equipment that can serve fiber and
copper interfaces.

1.3. Product Mounting and Location

This enclosure is suitable for outside plant-type (OSP) locations and those that may require NEC compliance. The outdoor, weather-
resistant CUBE is to be mounted on a concrete pad or steel grate platform. The installer connects the power, fiber and copper connections.
Detailed mounting and installation information is covered in Section 3.
©Copyright 2024 Charles Industries LLC. All rights reserved.
Availability of features and technical specifications herein are subject to change without notice.
Charles is a registered trademark of Charles Industries.
Charles Universal Broadband Enclosure
General Description and Installation
Figure 1
-NOTE-
LT-SS4C2288N2
15
Printing, August 20, 2024
th
Front View of the CUBE
Page 1 of 14
