Amphenol Charles CUBE-PM628155N4 General Description And Installation

Charles universal broadband enclosure
Hide thumbs Also See for Charles CUBE-PM628155N4:
Table of Contents

Advertisement

Quick Links

Download this manual
CUBE-PM628155N4 and CUBE-PM62815IN4
1.
GENERAL INTRODUCTION .......................................................... 1
1.1. Document Purpose ........................................................................ 1
1.2. Product Purpose ........................................................................... 1
1.3. Product Mounting and Location .................................................. 1
2.
PRODUCT DESCRIPTION .............................................................. 2
3.
INSTALLATION ................................................................................. 5
3.1. Inspecting the Product .................................................................. 5
3.2. Following and Using Safety Precautions .................................... 5
3.3. Obtaining Tools and Equipment .................................................. 5
3.4. Preparing the Installation Site ..................................................... 5
3.5. Lifting the CUBE........................................................................... 6
3.6. Mounting the CUBE ..................................................................... 6
3.7. CUBE Wiring and Equipment ...................................................... 7
3.8. Conduit Seals ................................................................................ 9
3.9. Verifying the Installation .............................................................. 9
4.
PERIODIC MAINTENANCE ......................................................... 10
5.
6.
WARRANTY & CUSTOMER SERVICE ...................................... 10
7.
SPECIFICATIONS ............................................................................ 10
7.1. Regulatory Specifications ........................................................... 10
7.2. Product Specifications ................................................................ 11

1. GENERAL INTRODUCTION

1.1. Document Purpose

This document provides general information for the CUBE-PM628155N4 and CUBE-PM62815IN4 of the Charles Industries' Universal

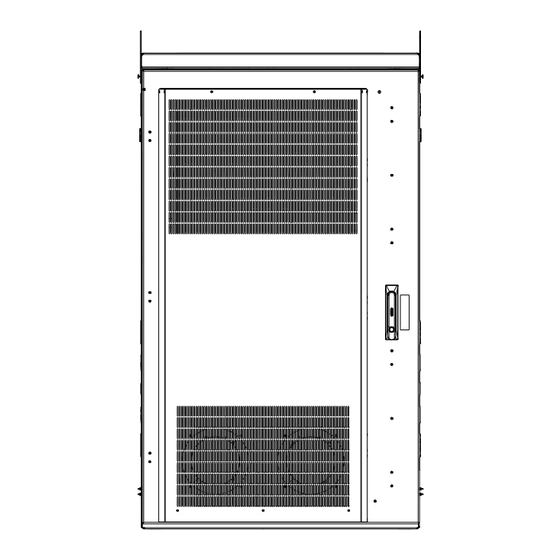

Broadband Enclosure (CUBE) product line. Figure 1 shows a closed front view of the enclosure.
Hereafter, the Charles Universal Broadband Enclosure CUBE-PM628155N4 and CUBE-PM62815IN4 will be referred to by individual

1.2. Product Purpose

The CUBE consists of a protective enclosure for an integrated system of electronic components and equipment that can serve fiber and
copper interfaces.

1.3. Product Mounting and Location

This enclosure is suitable for outside plant-type (OSP) locations and those that may require NEC compliance. The outdoor, weather-
resistant CUBE is to be mounted on a steel grate platform. It can also be mounted on a wall or concrete pad using the appropriate mounting
kit (see section 3.6). The installer connects the power, fiber and copper connections. Detailed mounting and installation information is
covered in Section 3.
©Copyright 2021 Charles Industries LLC. All rights reserved. Printed in the United States of America.
Availability of features and technical specifications herein are subject to change without notice.
Charles is a registered trademark of Charles Industries.
Charles Universal Broadband Enclosure
General Description and Installation
part number or collectively as the "CUBE."

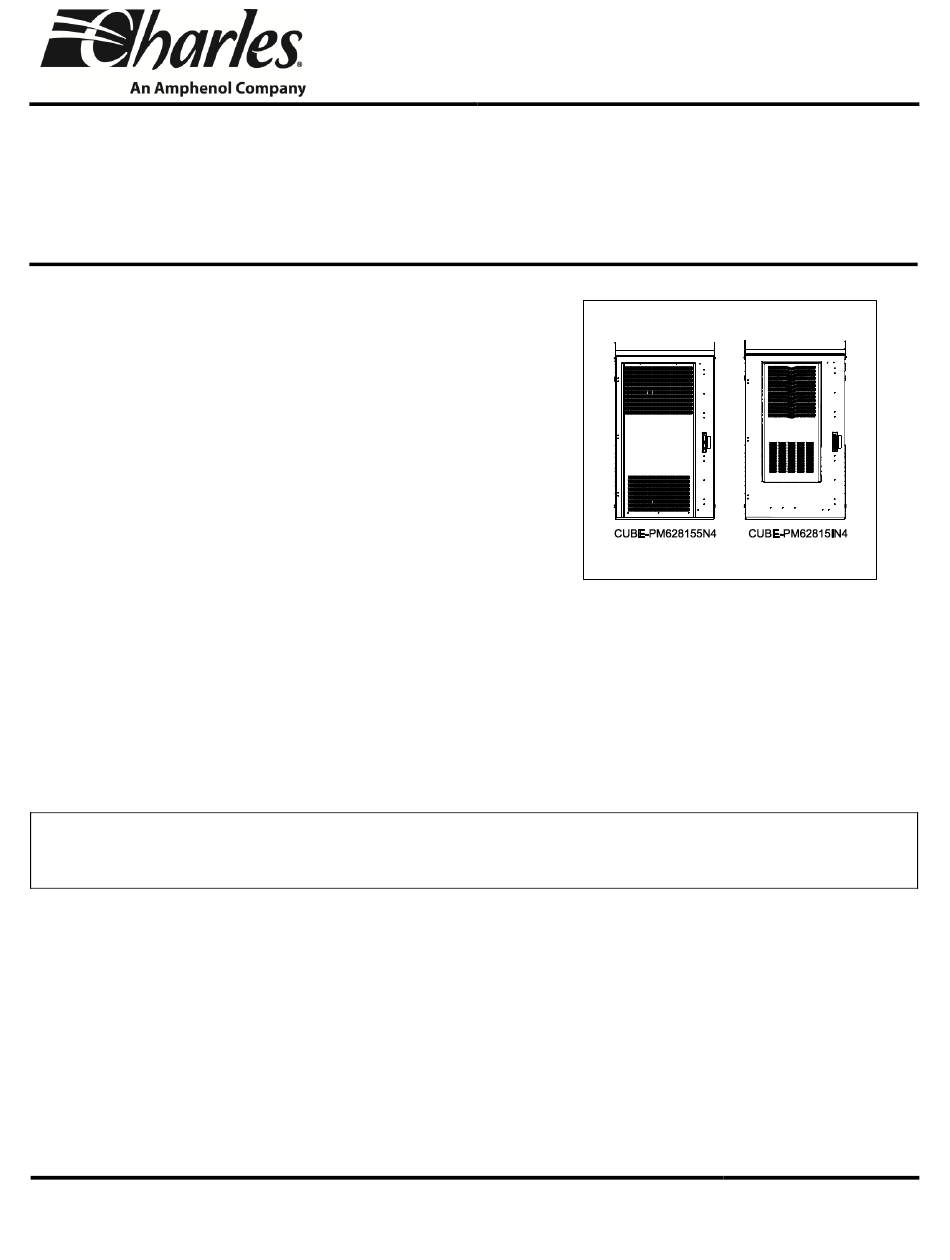

Figure 1
-NOTE-
LT-PM62815xN4
rd
3
Printing, July 26, 2021
Front View of the CUBE
Page 1 of 11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Charles CUBE-PM628155N4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amphenol Charles CUBE-PM628155N4

Summary of Contents for Amphenol Charles CUBE-PM628155N4

  • Page 1: Table Of Contents

    LT-PM62815xN4 Printing, July 26, 2021 Charles Universal Broadband Enclosure CUBE-PM628155N4 and CUBE-PM62815IN4 General Description and Installation GENERAL INTRODUCTION ............1 1.1. Document Purpose ................ 1 1.2. Product Purpose ................1 1.3. Product Mounting and Location ..........1 PRODUCT DESCRIPTION .............. 2 INSTALLATION .................

  • Page 2: Product Description

    LT-PM62815xN4 2. PRODUCT DESCRIPTION The CUBE is a single equipment compartment with 28RU of 23” horizontal rack mount spacing and a 600A 48VDC rack mounted ABB power system. The PM628155N4 has a 6000W heat exchanger, and the PM62815IN4 has a 6000BTU HVAC system. Figure 2 shows the CUBE dimensions.
  • Page 3 LT-PM62815xN4 Figure 3 PM628155N4 Components Printing Page 3 of 11...
  • Page 4 LT-PM62815xN4 Figure 4 PM62815IN4 Components Page 4 of 11 Printing...

  • Page 5: Installation

    LT-PM62815xN4 3. INSTALLATION 3.1. Inspecting the Product The CUBE is shipped mounted upright on a skid. Remove the bolts, unpack the unit, and dispose of the packaging material. -INSPECTION NOTE- Visually inspect the unit for damages prior to installation. If the equipment was damaged in transit, immediately report the extent of the damage to the transportation company.

  • Page 6: Lifting The Cube

    LT-PM62815xN4 3.5. Lifting the CUBE See Table 1 for CUBE weight. Charles recommends the following procedure for lifting the CUBE. Prior to lifting, remove the lifting brackets that hold the mounting gasket in place. Set aside the gasket, and then WARNING replace the brackets.

  • Page 7: Cube Wiring And Equipment

    LT-PM62815xN4 3.7. CUBE Wiring and Equipment After the CUBE is properly mounted in the desired location, apply No-Ox where bus bar and other 2-hole lug connections will be made. Install ground and power connections. Always ground the equipment first, before making any other connections. Perform all bonding and grounding connections prior to any WARNING electrical and communications connections.
  • Page 8 LT-PM62815xN4 Figure 7 PM628155N4 Electrical Diagram (Both CTMS and HX Versions) Figure 8 PM62815IN4 Electrical Diagram Page 8 of 11 Printing...

  • Page 9: Conduit Seals

    LT-PM62815xN4 3.7.5. HVAC Operation (PM62815IN4 Only) The 6000BTU DC powered HVAC compressor has an internal thermostat. The compressor turns on when the air inside the cabinet is at 28°C and runs for at least three minutes, turning off at 26°C. The heating cycle turns on at 5°C and off at 15°C. The CUBE is equipped with a cutoff switch that shuts off the HVAC compressor when a door is opened to minimize condensation buildup on the coils.

  • Page 10: Periodic Maintenance

    LT-PM62815xN4 4. PERIODIC MAINTENANCE In the event that the enclosure must be opened in freezing conditions, use a narrow, pointed metallic object such as a screwdriver or chisel, along with a non-metallic device like a rubber mallet, to remove excessive ice buildup around the door and locking mechanism. A commercial aerosol de-icer spray can be used to free up locks and latches if needed.

  • Page 11: Product Specifications

    LT-PM62815xN4 7.2. Product Specifications Physical Dimensions 74”Hx32”Wx32”D Weight PM628155N4, CTMS: Approx. 355 lbs. as shipped PM628155N4, VHT: Approx. 396 lbs. as shipped PM62815IN4: Approx. 330 lbs. as shipped 23” Equipment Rack Space and Hole Spacing 68.25” (28RU) rack spacing with tapped EIA #12-24 mounting holes Materials 0.1”...

This manual is also suitable for:

Charles cube-pm62815in4
