1.
GENERAL INTRODUCTION ................................................... 1
1.1. Document Purpose ............................................................... 1
1.2. Product Purpose ................................................................... 1
1.3. Product Mounting and Location ............................................ 1
2.
PRODUCT DESCRIPTION ....................................................... 2
3.
INSTALLATION ........................................................................ 4
3.1. Inspecting the Product .......................................................... 4
3.2. Following and Using Safety Precautions................................ 4
3.3. Obtaining Tools and Equipment ............................................ 4
3.4. Preparing the Installation Site ............................................... 4
3.5. Lifting the CUBE .................................................................. 5
3.6. Mounting the CUBE ............................................................. 5
3.8. CUBE Wiring and Equipment................................................ 7
3.9. Conduit Seals ....................................................................... 9
3.10. Verifying the Installation ....................................................... 9
4.
PERIODIC MAINTENANCE .................................................... 9
5.
6.
WARRANTY & CUSTOMER SERVICE ................................. 10
7.
SPECIFICATIONS ................................................................... 10
7.1. Regulatory Specifications .................................................... 10
7.2. Product Specifications ........................................................ 10
7.3. Macro Alarm Panel Connections ......................................... 11

1. GENERAL INTRODUCTION

1.1.

Document Purpose

This document provides general information for the CUBE-PM63915CN1 of the Charles Industries' Universal Broadband Enclosure
(CUBE) product line. Figure 1 shows a closed front view of the enclosure.
Hereafter, the Charles Universal Broadband Enclosure CUBE-PM63915CN1 will be referred to as the "CUBE."

1.2. Product Purpose

The CUBE consists of a protective enclosure for an integrated system of electronic components and equipment that can serve fiber and
copper interfaces.

1.3. Product Mounting and Location

This enclosure is suitable for outside plant-type (OSP) locations and those that may require NEC compliance. The outdoor, weather-
resistant CUBE is to be mounted on a concrete pad or steel grate platform. The installer connects the power, fiber, and copper connections.
Detailed mounting and installation information is covered in Section 3.
©Copyright 2024 Charles Industries LLC. All rights reserved.
Availability of features and technical specifications herein are subject to change without notice.
Charles is a registered trademark of Charles Industries.
Charles Universal Broadband Enclosure
CUBE-PM63915CN1
General Description and Installation

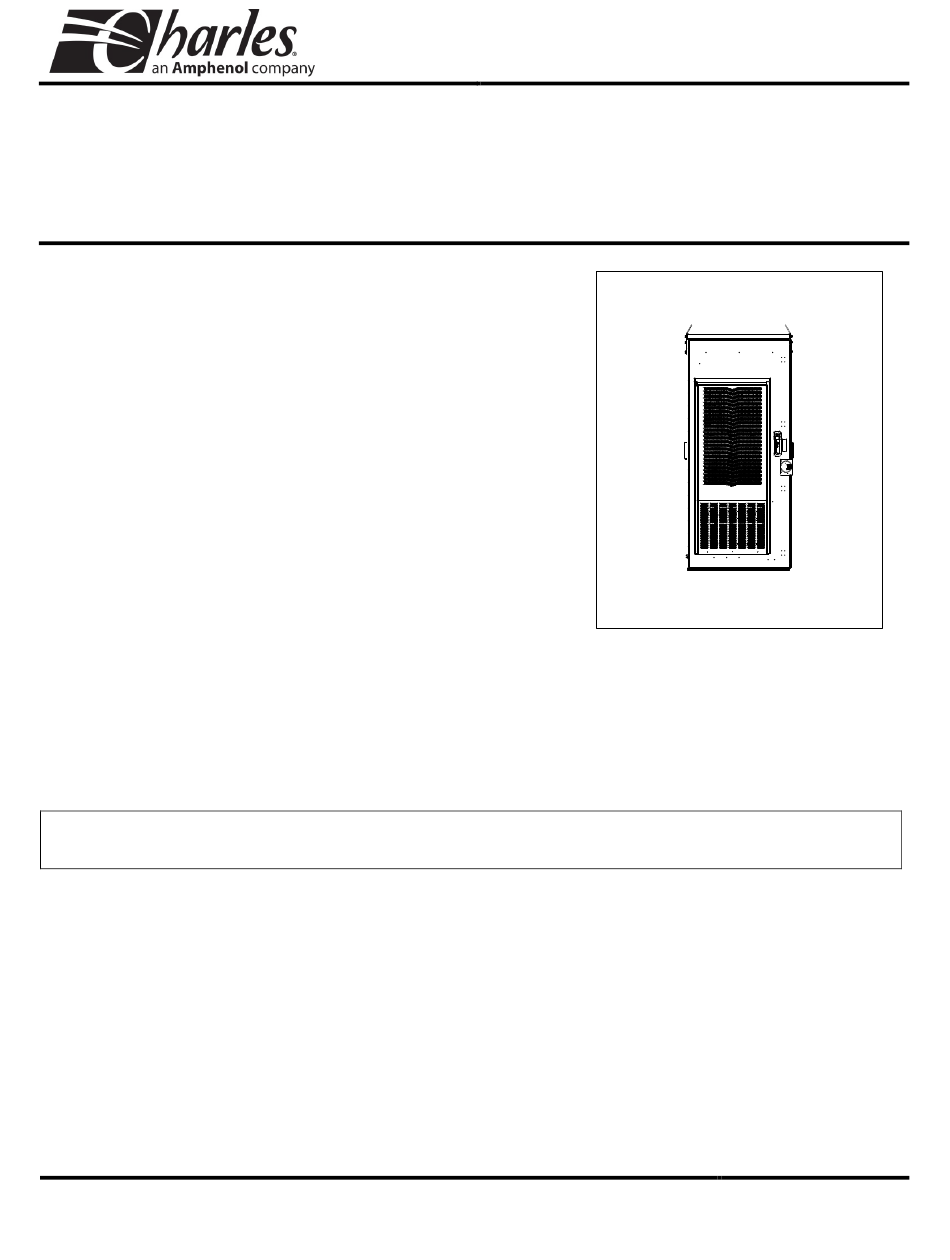

Figure 1
-NOTE-
LT-PM63915CN1
1
st
Printing, May 3, 2024

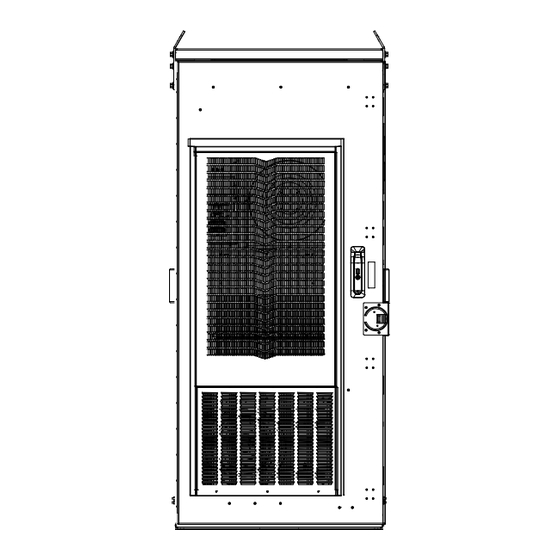

Front View of the CUBE
Page 1 of 11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Charles CUBE-PM63915CN1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amphenol Charles CUBE-PM63915CN1

Summary of Contents for Amphenol Charles CUBE-PM63915CN1

  • Page 1: Table Of Contents

    LT-PM63915CN1 Printing, May 3, 2024 Charles Universal Broadband Enclosure CUBE-PM63915CN1 General Description and Installation GENERAL INTRODUCTION ........... 1 1.1. Document Purpose ............... 1 1.2. Product Purpose ..............1 1.3. Product Mounting and Location ..........1 PRODUCT DESCRIPTION ............2 INSTALLATION ................ 4 3.1.

  • Page 2: Product Description

    LT-PM63915CN1 2. PRODUCT DESCRIPTION The CUBE consists of a single compartment with 39RU of 19” horizontal rack mounting space, 6RU of 19” vertical rack mounting space, and a 17kBTU HVAC system. Figure 2 shows the CUBE dimensions. Figure 3 shows the main components of the CUBE. 32.00 13.50 32.25...
  • Page 3 LT-PM63915CN1 (4) LIFTING HOISTS ALARM TERMINAL PANEL DOOR ALARM AND HVAC CUTOFF SWITCHES 3PT LATCH 216 STYLE PADLOCKABLE DOOR HANDLE (2) 2X8 POSITION GROUND BARS GFCI OUTLET WIND LATCH OVERHEAT THERMOSTAT 39RU, 23” HORIZONTAL RACK SPACE SOLAR SHIELD (2) QTR TURN 216 STYLE PADLOCKABLE LATCHES...

  • Page 4: Installation

    LT-PM63915CN1 3. INSTALLATION 3.1. Inspecting the Product The CUBE is shipped mounted upright on a skid. Remove the bolts, unpack the unit, and dispose of the packaging material. -INSPECTION NOTE- Visually inspect the unit for damages prior to installation. If the equipment was damaged in transit, immediately report the extent of the damage to the transportation company.

  • Page 5: Lifting The Cube

    LT-PM63915CN1 3.5. Lifting the CUBE See Table 1 for CUBE weight. Charles recommends the following procedure for lifting the SLINGS/CHAINS CUBE. (32” MINIMUM LENGTH 3.5.1. Required Equipment 60º ANGLE AT EACH HOIST One derrick (crane) capable of lifting the CUBE •...
  • Page 6 LT-PM63915CN1 3.6.2. Constructing a New Pad Use only concrete for new pad construction. Do not use substitute materials • since they lack the rigidity for CUBE placement. • Observe local building practices for pad construction. Charles recommends 7.48 17.00 that the pad should extend a minimum of 8” beyond the CUBE base on all 3.50 sides.

  • Page 7: Cube Wiring And Equipment

    LT-PM63915CN1 3.8. CUBE Wiring and Equipment After the CUBE is properly mounted in the desired location, apply No-Ox where bus bar and other 2-hole lug connections will be made. Install ground and power connections. Always ground the equipment first, before making any other connections. WARNING Perform all bonding and grounding connections prior to any electrical and communications connections.
  • Page 8 LT-PM63915CN1 3.8.1. Ground Connection Use the two 2x8 position ground bars provided in the equipment compartment for all NUTS grounding of internal equipment. Stack hardware as shown in Figure 8. External ground BELLEVILLE WASHERS lugs are available on the sides and rear of the CUBE for connecting a site ground wire. FLAT WASHERS GROUNDING LUG 3.8.2.

  • Page 9: Conduit Seals

    LT-PM63915CN1 3.8.4. Macro Alarm Terminal Panel An integrated macro-site alarm panel is mounted on the left wall of the cabinet. This panel provides forty protected dry contact alarm inputs to screw down terminals or 66-block connections CABLE 5-PIN SURGE 66-BLOCK ALARM (Figure 9).

  • Page 10: Warranty & Customer Service

    LT-PM63915CN1 6. WARRANTY & CUSTOMER SERVICE Charles Industries LLC offers a one-year warranty on the CUBE product. The Charles warranty is limited to the operation of the CUBE hardware as described in this documentation and does not cover equipment that may be integrated by a third party. The terms and conditions applicable to any specific sale of product shall be defined in the resulting sales contract.

  • Page 11: Macro Alarm Panel Connections

    LT-PM63915CN1 7.3. Macro Alarm Panel Connections Alarm Number Description Door Intrusion Commercial Power Failure Surge Suppressor/Lightening Arrestor Rectifier Failure Multiple Rectifier Failure Battery Discharge Low Voltage DC Power Failure Generator Running CC10 Generator Low Fuel CC11 Generator Failure CC12 HVAC Failure CC13 High Temp CC14...
