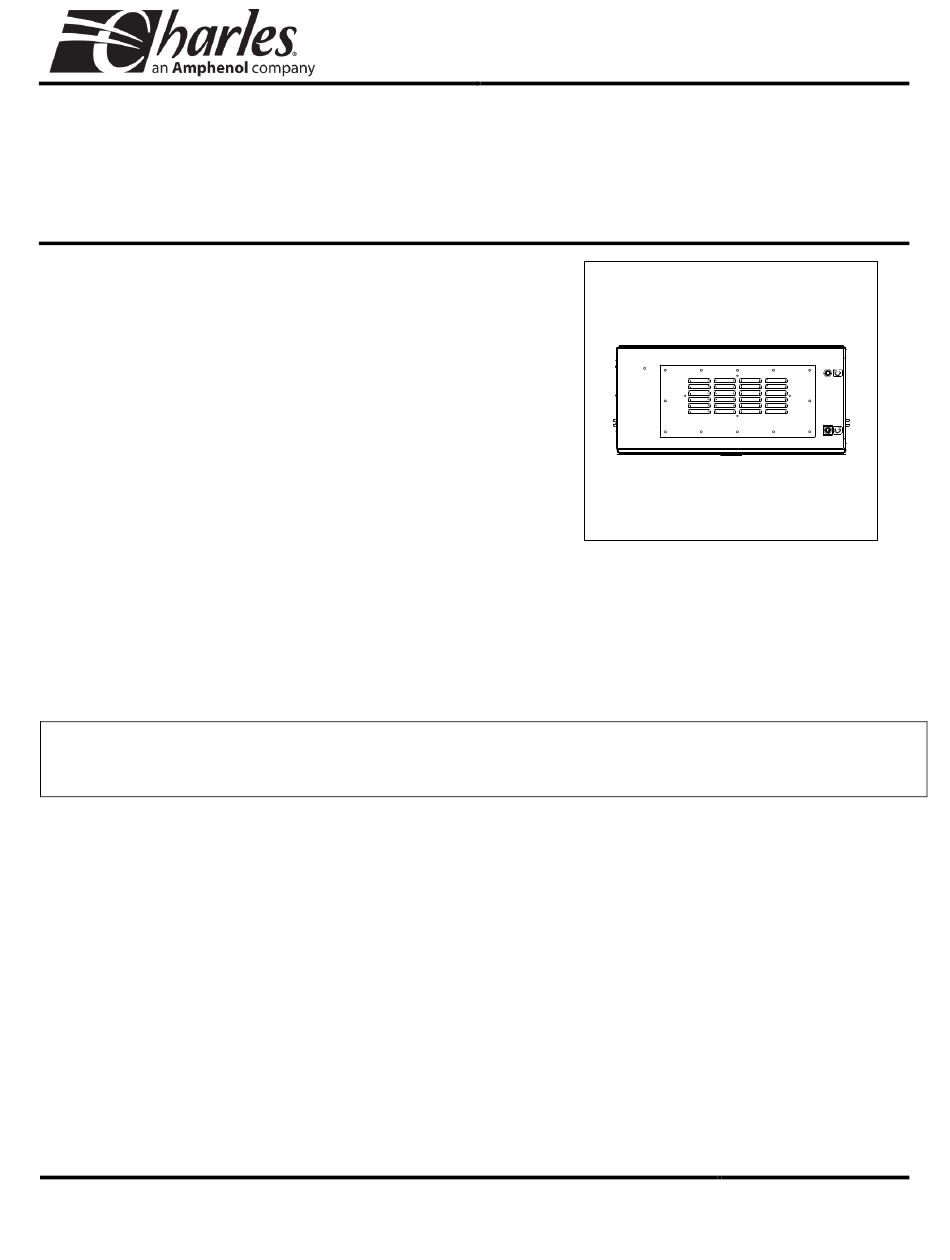

1. GENERAL INTRODUCTION

1.1. Document Purpose

This document provides general information for the CUBE-BB48A1GV2 of the Charles Industries' Universal Broadband Enclosure
(CUBE) product line. Figure 1 shows a closed front view of the enclosure.
Hereafter, the Charles Battery Backup Enclosure CUBE-BB48A1GV2 will be referred to as the "BB." The Charles Universal Broadband

1.2. Product Purpose

The BB consists of a protective enclosure for an integrated system of electronic components and equipment that can serve fiber and copper
interfaces.

1.3. Product Mounting and Location

This enclosure is suitable for outside plant-type (OSP) locations and those that may require NEC compliance. The outdoor, weather-
resistant BB is to be mounted on a concrete pad. The installer connects the power, fiber, and copper connections. Detailed mounting and
installation information is covered in Section 3.
The BB is mounted underneath a CUBE to provide battery support for the equipment in the CUBE.
©Copyright 2024 Charles Industries LLC. All rights reserved.
Availability of features and technical specifications herein are subject to change without notice.
Charles is a registered trademark of Charles Industries.
Charles Universal Broadband Enclosure
CUBE-BB48A1GV2
General Description and Installation
Enclosure CUBE-PM639158N2 will be referred to as the "CUBE."

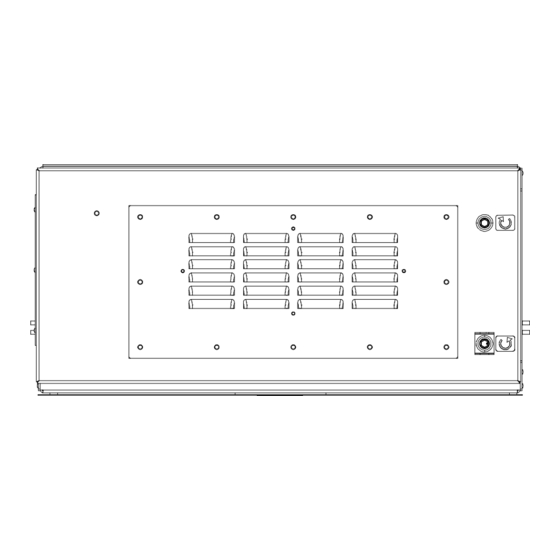

Figure 1
-NOTE-
LT-BB48A1GV2
1
Printing, October 10, 2024
st
Front View of the BB
Page 1 of 7
