3onedata MES5300-28GS Series Quick Installation Manual

MES5300-28GS Series
Layer 2 Managed Industrial Ethernet
Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1. Switch
2. Mounting lug x 2
3. AC power line x 2 (only for AC device)
4. Warranty card
5. Certificate
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This series products are rack-mounted layer 2 managed
industrial Ethernet switches. For convenience, the products of
this series adopt the following number on the left in this guide,
please confirm the number of your product:
Model I. MES5300-28GS-2LV (28 Gigabit SFP slots + 2
24/48VDC (18-72VDC) redundant power supply
inputs)
Model II. MES5300-28GS-2HV (28 Gigabit SFP slots + 2
110/220VAC/DC
redundant power supply inputs)

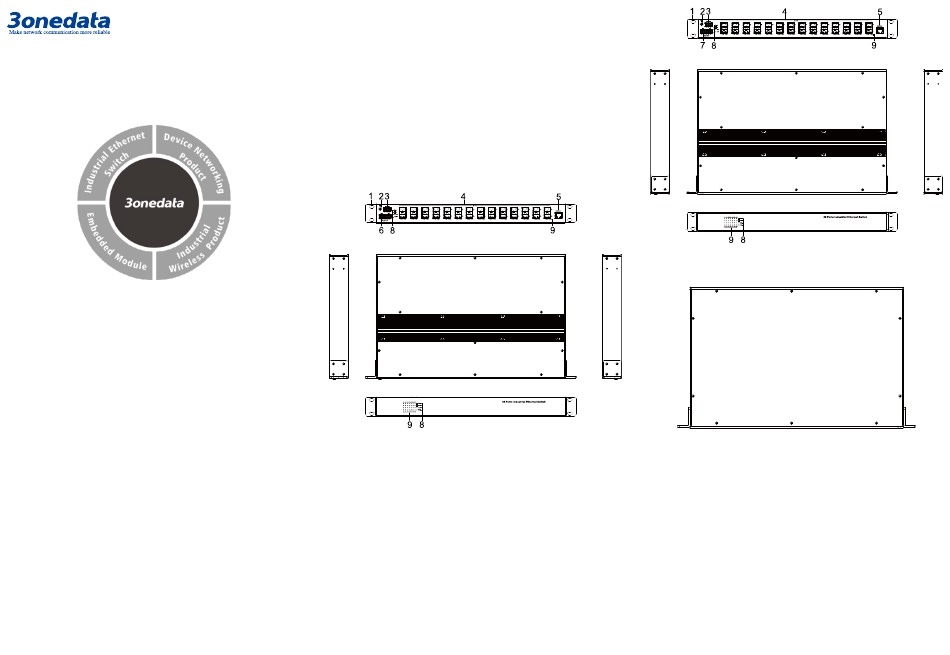

【Panel Design】
Bottom view, right view, front view, left view, and top

view
Nanshan District,
(85-264VAC/77-300VDC)
Model I
Model II
Rear View

Model I, II
1. Lugs
2. Grounding screw (M4)
3. Relay alarm output terminal block
4. Gigabit SFP slot (GS1-GS28)
5. CONSOLE port
6. DC power input terminal block
7. AC power input terminal block
8. System indicators, from top to bottom in turn they
are:
Power supply indicator (P2-P1)
—
Alarm indicator (ALM)
—
Running indicator (RUN)
—
