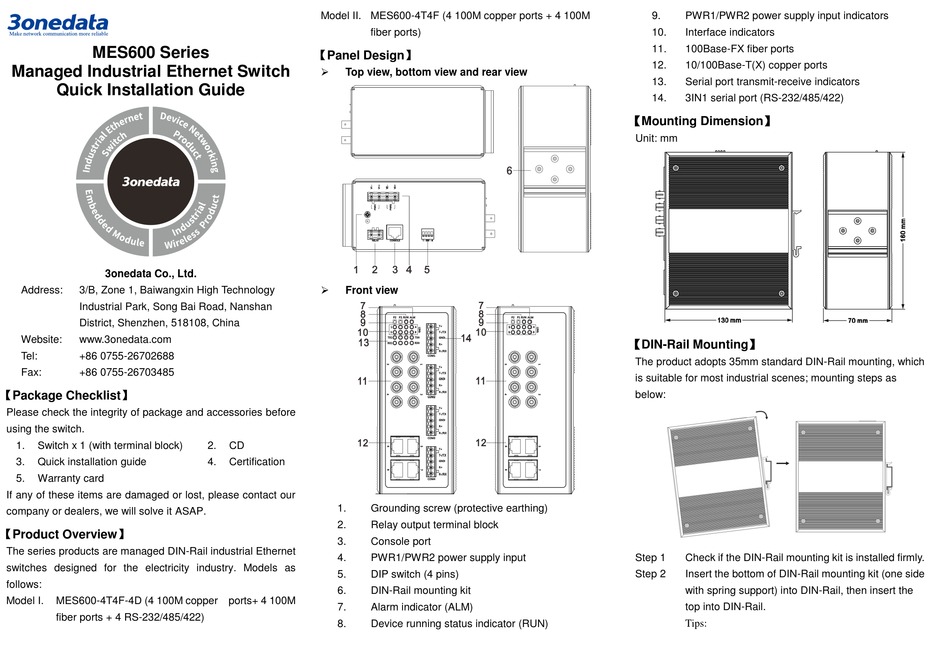

MES600 Series
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Song Bai Road, Nanshan
District, Shenzhen, 518108, China
Website:
www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories before
using the switch.
1.
Switch x 1 (with terminal block)
3.
Quick installation guide
5.
Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

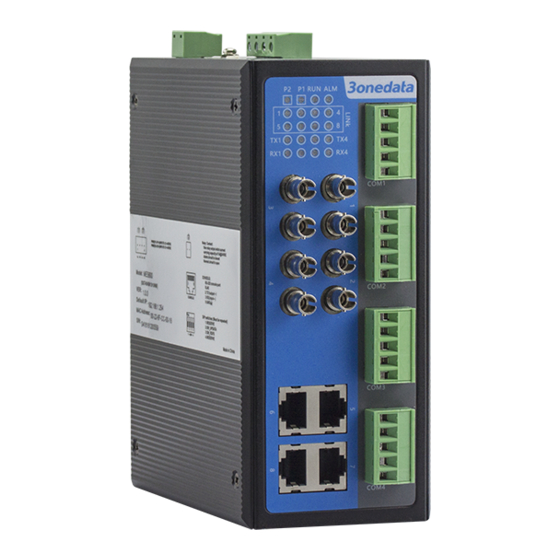

The series products are managed DIN-Rail industrial Ethernet
switches designed for the electricity industry. Models as
follows:
Model I.
MES600-4T4F-4D (4 100M copper ports+ 4 100M
fiber ports + 4 RS-232/485/422)
Model II. MES600-4T4F (4 100M copper ports + 4 100M
fiber ports)
【Panel Design】
Top view, bottom view and rear view
Front view
2.
CD
4.
Certification
1.
Grounding screw (protective earthing)
2.
Relay output terminal block
3.
Console port
4.
PWR1/PWR2 power supply input
5.
DIP switch (4 pins)
6.
DIN-Rail mounting kit
7.
Alarm indicator (ALM)
8.
Device running status indicator (RUN)
9.
PWR1/PWR2 power supply input indicators
10.
Interface indicators
11.
100Base-FX fiber ports
12.
10/100Base-T(X) copper ports
13.
Serial port transmit-receive indicators
14.
3IN1 serial port (RS-232/485/422)
【Mounting Dimension】
Unit: mm
【DIN-Rail Mounting】
The product adopts 35mm standard DIN-Rail mounting, which
is suitable for most industrial scenes; mounting steps as
below:
Step 1
Check if the DIN-Rail mounting kit is installed firmly.
Step 2
Insert the bottom of DIN-Rail mounting kit (one side
with spring support) into DIN-Rail, then insert the
top into DIN-Rail.
Tips:
