3onedata IES2300SL Quick Installation Manual

IES2300SL with Fiber-Port Series
Layer 2 Unmanaged Industrial
Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch
2. DIN-Rail mounting attachment
3. Warranty card
4. Certificate
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This series product is a Gigabit unmanaged DIN-Rail
industrial Ethernet switch. For convenience, the products of
this series adopt the following number on the left in this guide,
please confirm the number of your product:
Model I. IES2300SL-4GT2GS-2LV (4 Gigabit copper ports +
2 Gigabit SFP slots, 12~60VDC redundant power
supply).
Model II. IES2300SL-8GT2GS-2LV (8 Gigabit copper ports +
2 Gigabit SFP slots, 12~60VDC redundant power
supply).
Model III. IES2300SL-8GP2GS-2LV (8 Gigabit PoE ports + 2
Gigabit SFP slots, 44~57VDC redundant power
supply).
Model IV. IES2300SL-16GT2GS-2LV (16 Gigabit copper ports
+ 2 Gigabit SFP slots, 12~60VDC redundant power
supply).
Model V. IES2300SL-16GP2GS-2LV (16 Gigabit PoE copper
ports + 2 Gigabit SFP slots, 44~57VDC redundant
power supply).

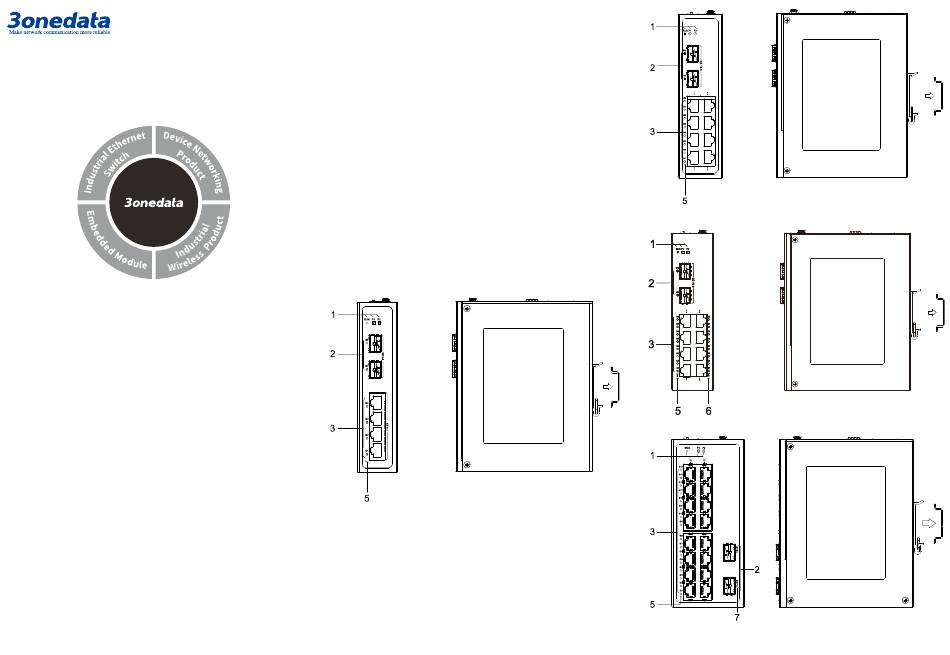

【Panel Design】
Main view and right view

Nanshan District,
Model I
Model II
Model III
Model IV
