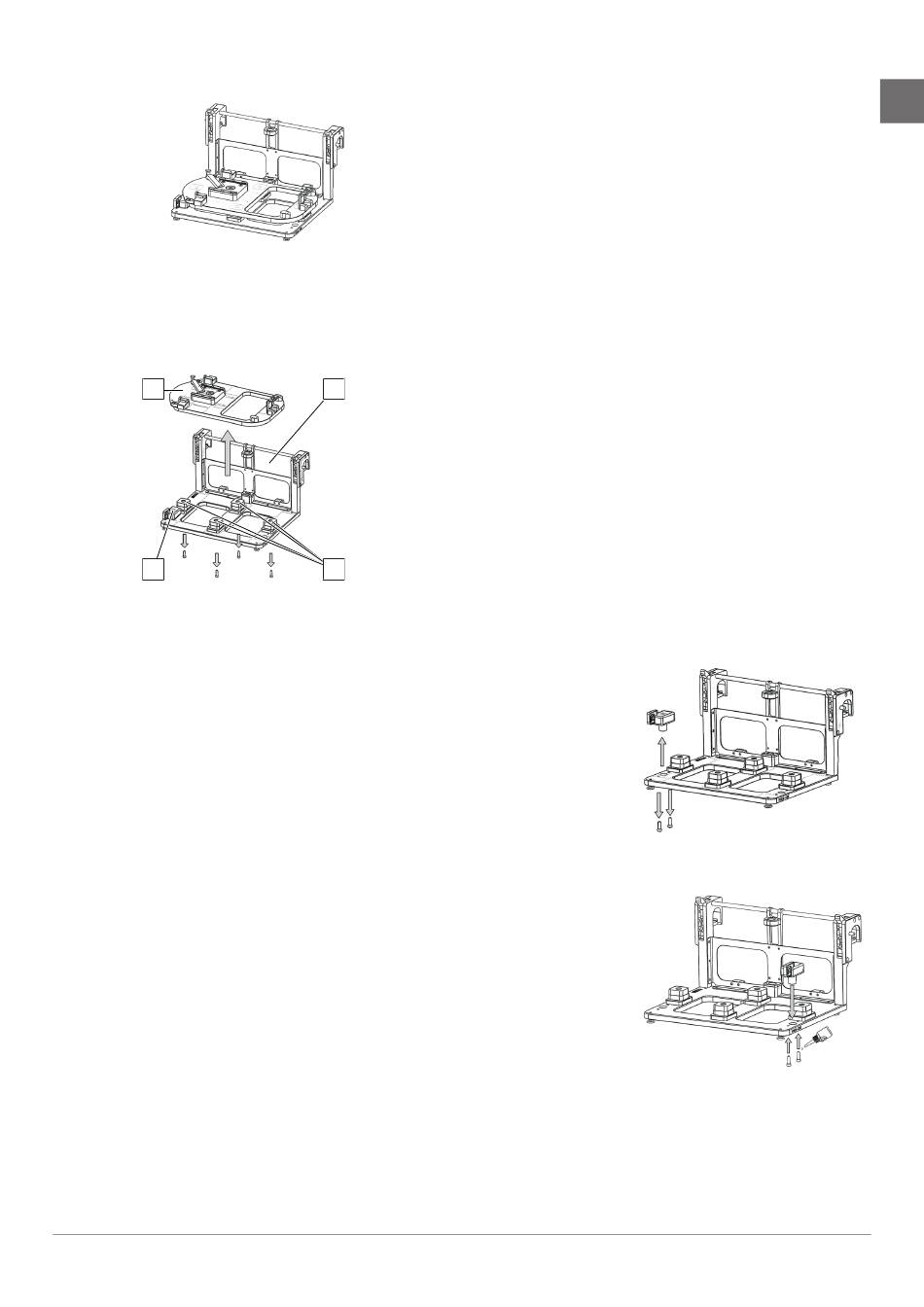

Fig. 3: Mobile holder on left -
Note: In order to avoid safety risks. Secure all screws with thread-locking adhesive to prevent them from
becoming loose.
Note: All screws are additionally secured. As such, additional force may be required to release the screws.
1
4
Fig. 4: Disassembly of the holding plate
1 Unscrew the 4 socket screws (M6; TX30).
2 Remove the holding plate [1].
3 Unscrew the two socket screws (M6; TX30).
4 Remove the holding plate locking mechanism [4].
5 Position the right locking mechanism supplied on the right-hand
side of the holder.
6 Secure the locking mechanism with 2 socket screws (M6; TX30) with the corresponding tightening
torque (9 Nm).
Use the thread-locking adhesive to fix the screws.
| Accessories for Patient Transport |
2
1 Holding plate
2 Holder
3 Vibration absorbers
3
4 Locking mechanism
4 Installation and Operation
Fig. 5: Holding plate locking mechanism
Fig. 6: Holding plate locking mechanism
