| 10 | 4 Installation and Operation
7 Position the holding plate [1] on the vibration absorbers as per
en
Figure 7.
8 Secure the holding plate [1] with 4 socket screws (M6; TX30) with the corresponding tightening torque
(9 Nm).
Use the thread-locking adhesive to fix the screws.
9 Check that the screws are secure.
10 Check that the holder is working properly.
▶ The operating interface of the CARDIOHELP is now positioned on the right-hand side of the mobile
holder.
4.3 Attaching and Adjusting the Infusion Mast (Optional)
1 In order to attach the infusion mast, press and hold the locking
device of the mast retainer [2].
2 Insert the mast through the
3 Make sure that the locking device is firmly engaged and that the
infusion mast is securely fixed in place.
4 In order to adjust the height of the infusion mast, move the plastic
Instructions for Use | 2.2 | en | 06
Copyright Maquet Cardiopulmonary GmbH
| Accessories for Patient Transport |
holder [1] into the retainer [2] from above and release the locking device.

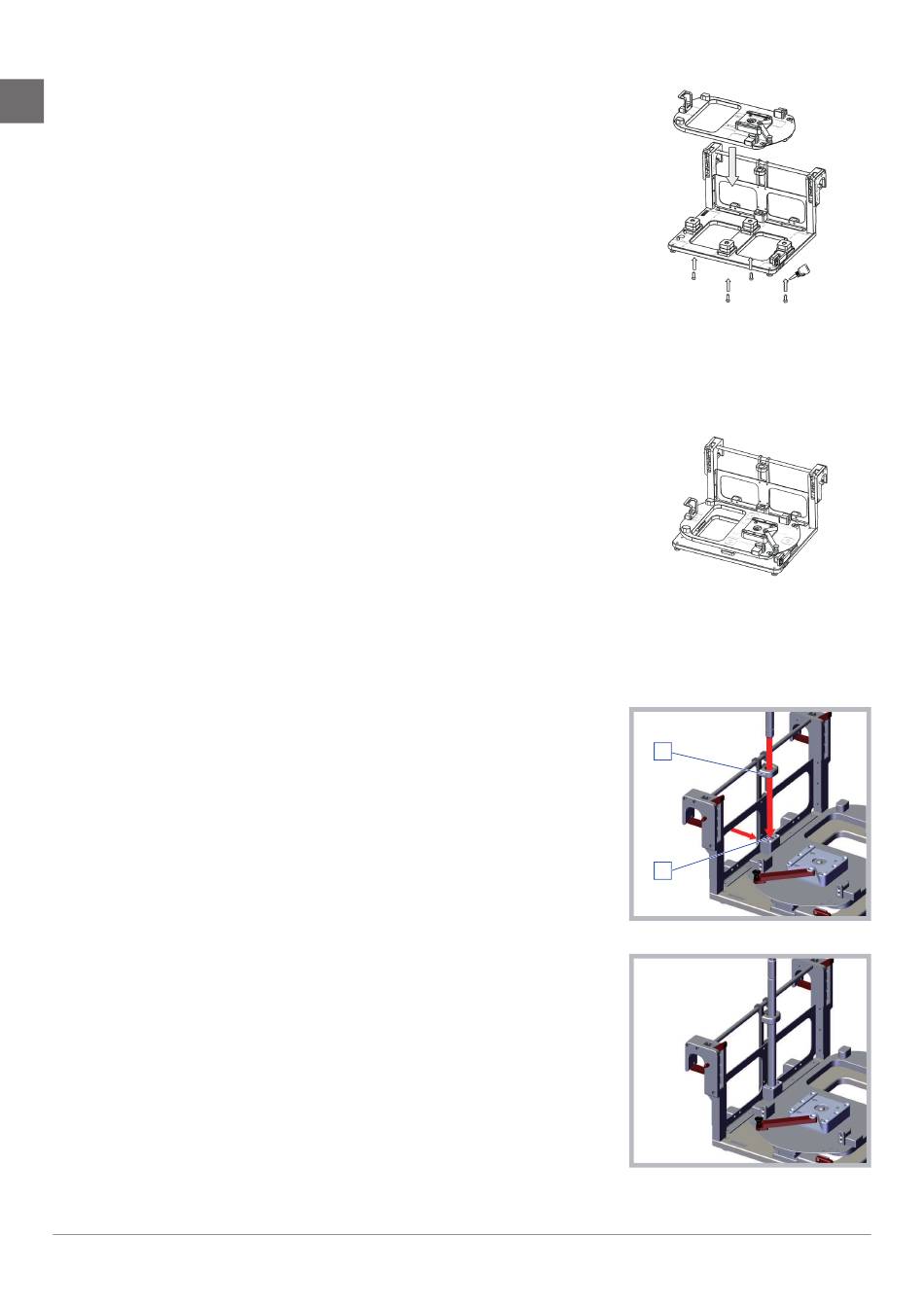

Fig. 7: Mounting the holding plate
Fig. 8: Mobile holder on right
1
2
ring [3] upward.
