| 8 | 4 Installation and Operation

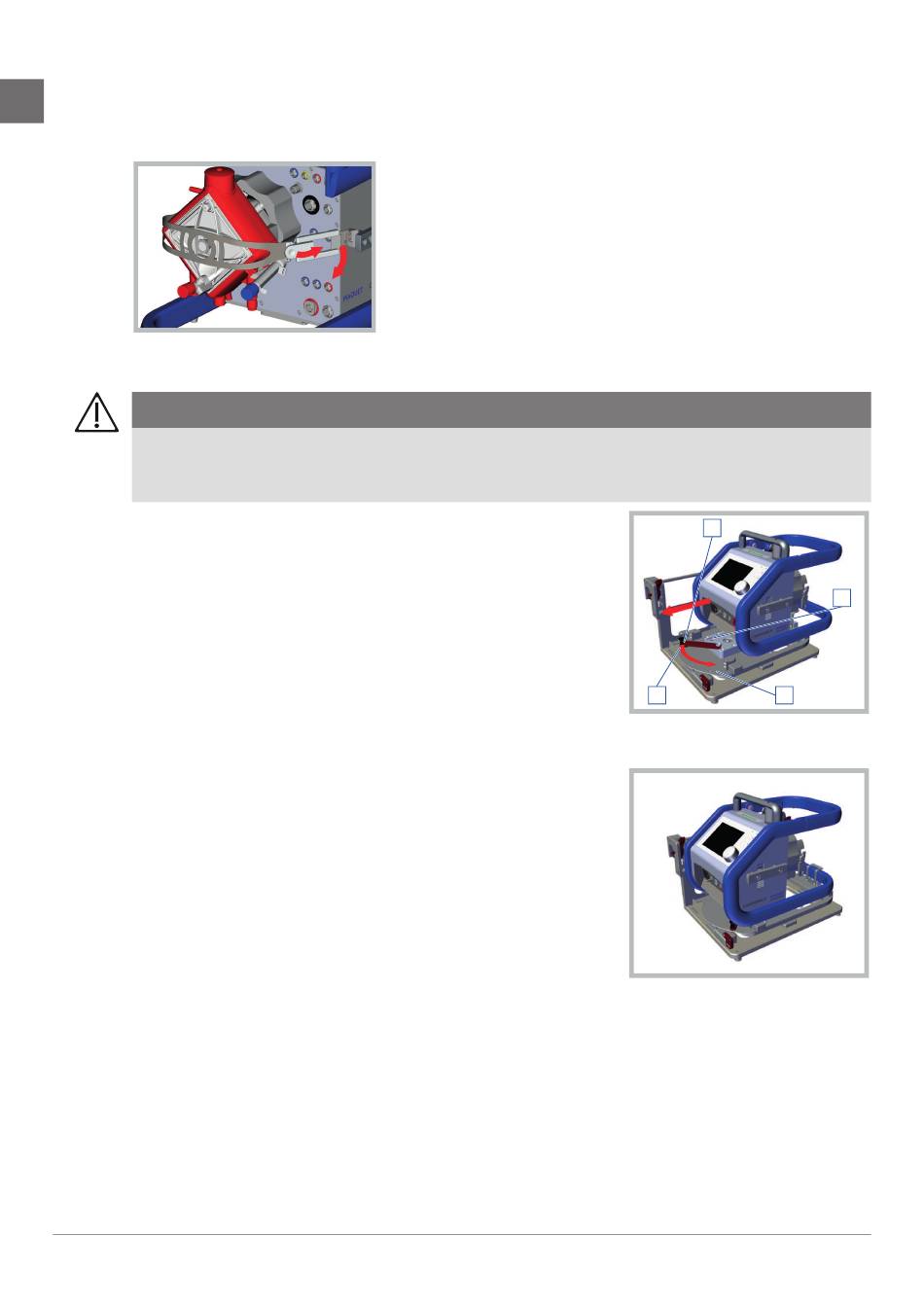

4.1.1 Removing the Transport Guard for CARDIOHELP Disposables
en
n Open the fastener of the Transport Guard for CARDIOHELP Disposables and remove the fixing hooks
from the openings.
4.2 Attaching the CARDIOHELP to the Mobile Holder HKH 8860
CAUTION!
The Cardiohelp Mobile Holder HKH 8860 is mounted on the left-hand side on delivery: The position of
operation of the CARDIOHELP-i is on the left side of the mobile holder.
If the position of operation is required on the right side, the mobile holder must be converted.
1 Check that the locking device is open.
▶ Locking
2 Slide the CARDIOHELP-i onto the mobile holder.
3 Ensure that the sled on the underside of the CARDIOHELP-i
slides into the retainer [2].
4 Lock the CARDIOHELP-i: Set the locking lever
5 Ensure that the locking device has correctly clicked into place and that the CARDIOHELP-i is securely
fixed.
4.2.1 Mobile holder conversion
The Cardiohelp Mobile Holder HKH 8860 is mounted on the left-hand side on delivery: The position of
operation of the CARDIOHELP-i is on the left side of the mobile holder.
If, due to the application, the operating interface of the CARDIOHELP is required on the right side of the
holder, the holder can be converted accordingly.
Instructions for Use | 2.2 | en | 06
Copyright Maquet Cardiopulmonary GmbH
| Accessories for Patient Transport |
lever [1] on the [Open] symbol [4].
[1] to the [Locked]
1
4 3
symbol [3].
2
