Backyard Discovery 12x10 BRINDLEWOOD GAZEBO AU Assembly Manual
  1. Manuals
  2. Brands
  3. Backyard Discovery Manuals
  4. Outdoor Furnishing
  5. 12x10 BRINDLEWOOD GAZEBO AU
  6. Assembly manual
Backyard Discovery 12x10 BRINDLEWOOD GAZEBO AU Assembly Manual

Backyard Discovery 12x10 BRINDLEWOOD GAZEBO AU Assembly Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Manufactured by:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476
J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990

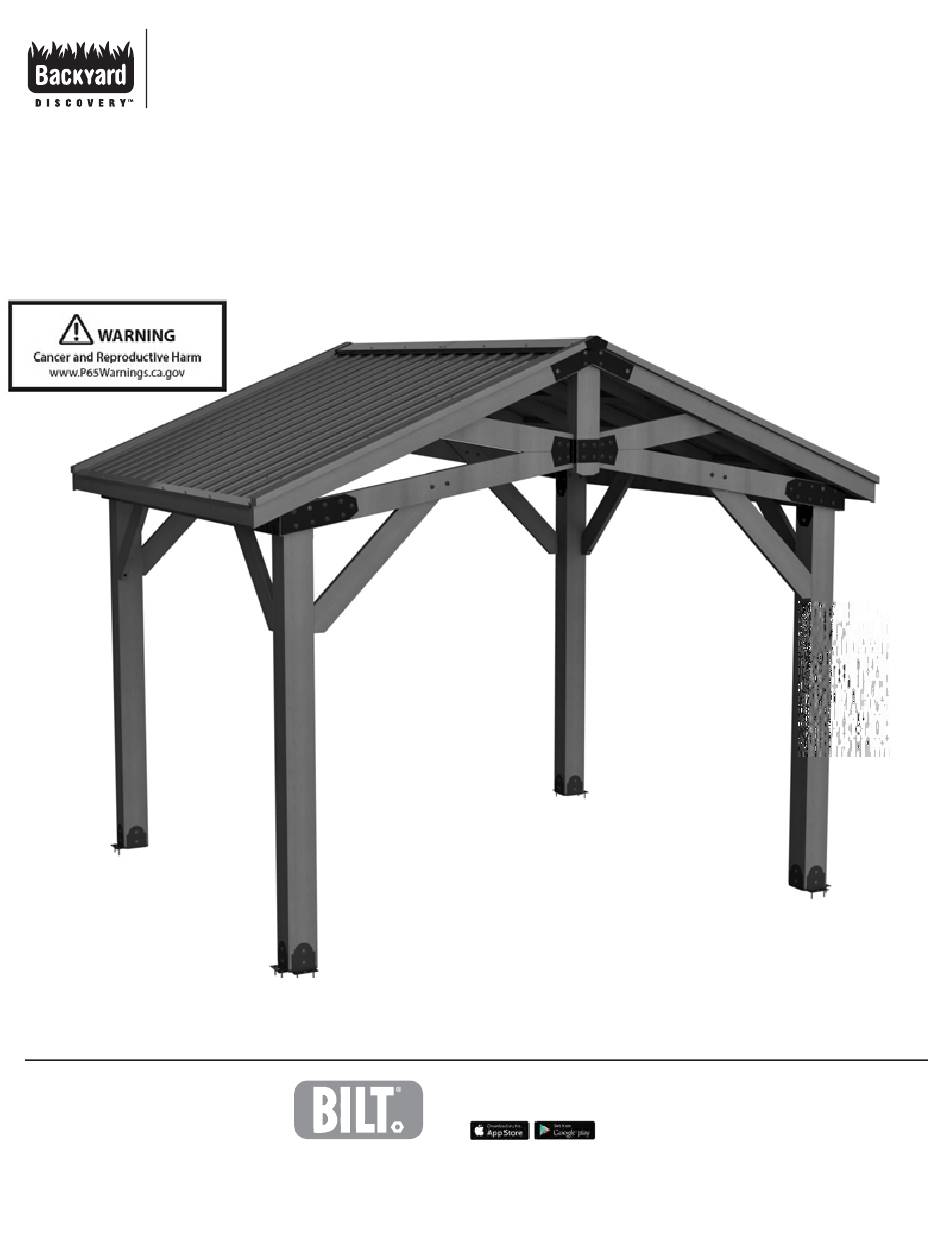

12x10 BRINDLEWOOD GAZEBO AU
MODEL # : 2106550B
THE ASSEMBLY MANUAL MUST BE RETAINED
SINCE IT CONTAINS IMPORTANT INFORMATION
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your product, or to order
replacement parts Para obtener instrucciones en español, visite
www.backyarddiscovery.com
EASY STEP-BY-STEP
3D INTERACTIVE INSTRUCTIONS
DOWNLOAD THE FREE APP
INS-2106550B-A-12x10 BRINDLEWOOD GAZEBO AU-ENG 02-10-2023
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the 12x10 BRINDLEWOOD GAZEBO AU and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Discovery 12x10 BRINDLEWOOD GAZEBO AU

Summary of Contents for Backyard Discovery 12x10 BRINDLEWOOD GAZEBO AU

  • Page 1 For the most up to date assembly manual, to register your product, or to order replacement parts Para obtener instrucciones en español, visite www.backyarddiscovery.com EASY STEP-BY-STEP 3D INTERACTIVE INSTRUCTIONS DOWNLOAD THE FREE APP Made in China INS-2106550B-A-12x10 BRINDLEWOOD GAZEBO AU-ENG 02-10-2023...
  • Page 2 OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES It is critically important that you start with square and level footings, concrete pad or deck to attach your structure Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step. •...
  • Page 3 OWNER'S MANUAL - ANCHORING LAYOUT...
  • Page 4 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) | RIDGE CAP STIFFENER-W4L13590 (x2) | 15/16"x2 3/8"x47 5/8" (24x60x1210) | RIDGE CAP STIFFENER-W4L13591 (x2) | 15/16"x2 3/8"x69 5/16" (24x60x1760) | GABLE BOARD-W4L16231 (x4) | 1 7/16"x5 1/4"x24 3/16" (36x134x615) | TOP RAIL-W4L17221 | 1 7/16"x5 1/4"x30 5/16"...
  • Page 5 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) | SHEATHING BOARD-W4L16239 (x8) | 1 7/16"x3 3/8"x73 1/4" (36x86x1861) | SHEATHING BOARD-W4L16240 (x8) | 1 7/16"x3 3/8"x45 3/4" (36x86x1161) | FASCIA-W4L16241 (x2) | 15/16"x3 3/8"x74 11/16" (24x86x1896) | FASCIA-W4L16242 (x2) | 15/16"x3 3/8"x44"...
  • Page 6 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) | GABLE PANEL-W2A03379 (x2) | 2 13/16"x5 1/4"x80 3/16" (72x134x2037) | GABLE PANEL-W2A03380 (x2) | 2 13/16"x5 1/4"x80 3/16" (72x134x2037) | POST-W2A03517 (x2) | 6"x6"x89 1/2" (152x152x2274) | POST-W2A03518 (x2) | 6"x6"x89 1/2"...
  • Page 7 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components (Not to Scale) H100468 | BOLT WH BLK | 5/16x1 (x22) H100192 | NUT BARREL WH BLK | 5/16x7/8 (x95) H100459 | BOLT WH BLK (x54) | 5/16x1 1/4 H100193 | NUT BARREL WH BLK (x30) | 5/16x1 1/2 H100407...
  • Page 8 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components (Not to Scale) H100200 | SCREW PFH BLK H100405 | WASHER LOCK EXT BLK (x33) | 8x1 1/2 (x22) | 6x15 H100391 | SCREW PFH BLK (x64) | 8x2 H100198 | WASHER LOCK EXT BLK (x47) | 8x19 H100483...
  • Page 9 OWNER'S MANUAL - PARTS IDENTIFICATION Accessory Components (Not to Scale) A4M01130 A4M01129 A4M01147 | GABLE BRACKET (x4) | GABLE BRACKET | PEAK SEAM BRACKET (x2) (x2) A4M01155 A4M01554 | RIGHT OUTSIDE A4M01555 | LEFT OUTSIDE | TIE BRACKET (x4) (x2) | BRACKET (x2) | BRACKET...
  • Page 10 OWNER'S MANUAL - PARTS IDENTIFICATION Accessory Components (Not to Scale) A4M01124 29 GA STEEL SHEETING (x8) A4M01127 RIDGE CAP SPLICE (x1) A4M01116 RIDGE CAP 29 GA (x2) A4M00983 ROOF EDGE TRIM SPLICE (x2) A4M00982 ROOF EDGE TRIM (x4)

  • Page 11: Hardware Parts

    PRE-ASSEMBLY STEP 1 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the wood and hardware. WOOD PARTS: • Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01). •...
  • Page 12 PRE-ASSEMBLY STEP 2 - TOOLS REQUIRED Drill Attachments: Phillips Head Open End Wrenches 1/2" & 7/16" 1/8", 3/16", 3/8" & 7/16" Drill Bits Cordless Drill or Electric Drill 3/8" Drive Ratchet, 1/2" & 7/16" STD Sockets, 1/2" & 7/16" Deep Sockets Phillips Screw Driver 3/8 &...
  • Page 13 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
  • Page 14 STEP 1 - GAZEBO ASSEMBLY | POST-W2A03517 (x2) | 6"x6"x89 1/2" (152x152x2274) A6P00308 | 6x6 POST FOOT | POST-W2A03518 (x2) | 6"x6"x89 1/2" (152x152x2274) (x4)
  • Page 15 STEP 2 - GAZEBO ASSEMBLY A4M01129 (x4) | GABLE BRACKET | GABLE TRUSS-W2A03519 | GABLE BOARD-W4L16231 | GABLE BOARD-W4L16235 | 1 7/16"x33 5/8"x64 9/16" (36x854x1640) (x4) (x4) | 1 7/16"x5 1/4"x24 3/16" (36x134x615) | 1 7/16"x1 1/2"x5 1/4" (36x38x134) (x2)
  • Page 16 STEP 3A - GAZEBO ASSEMBLY A4M01232 | LEFT ANGLE A4M01233 | RIGHT ANGLE (x2) | BRACKET (x2) | BRACKET A4M01554 | RIGHT OUTSIDE | TOP RAIL-W4L17221 A4M01555 | LEFT OUTSIDE (x2) | BRACKET (x4) | 1 7/16"x5 1/4"x30 5/16" (36x134x770) (x2) | BRACKET...
  • Page 17 STEP 3B - GAZEBO ASSEMBLY...
  • Page 18 STEP 4 - GAZEBO ASSEMBLY | TRUSS-W4L16238 (x4) | 1 7/16"x1 15/16"x74 15/16" (36x50x1904)
  • Page 19 STEP 5 - GAZEBO ASSEMBLY | CORBEL-W4L17223 (x4) | 1 7/16"x5 1/4"x45 7/8" (36x134x1165)
  • Page 20 STEP 6 - GAZEBO ASSEMBLY | GABLE PANEL-W2A03379 (x2) | 2 13/16"x5 1/4"x80 3/16" (72x134x2037) | GABLE PANEL-W2A03380 A4M01147 | PEAK SEAM A4M01130 (x2) | 2 13/16"x5 1/4"x80 3/16" (72x134x2037) | GABLE BRACKET BRACKET (x2) (x2)
  • Page 21 STEP 7 - GAZEBO ASSEMBLY | TOP RAIL-W4L17222 (x2) | 1 7/16"x5 1/4"x64 5/16" (36x134x1634) | CORBEL-W4L16234 (x2) | 1 7/16"x5 1/4"x35 7/8" (36x134x910)
  • Page 22 STEP 8 - GAZEBO ASSEMBLY | CORBEL-W4L16234 (x1) | 1 7/16"x5 1/4"x35 7/8" (36x134x910) | CORBEL W/TAG-W2A03384 (x1) | 1 7/16"x5 1/4"x35 13/16" (36x134x910)
  • Page 23 STEP 9 - GAZEBO ASSEMBLY | RAFTER-W4L16237 (x8) | 1 7/16"x3 3/8"x77 3/8" (36x86x1965) | RAFTER-W4L16243 (x2) | 15/16"x3 3/8"x39 13/16" (24x86x1011) | FASCIA-W4L16241 (x2) | 15/16"x3 3/8"x74 11/16" (24x86x1896) | FASCIA-W4L16242 | RAFTER-W4L16244 (x2) | 15/16"x3 3/8"x44" (24x86x1118) (x2) | 15/16"x3 3/8"x70 7/16"...
  • Page 24 STEP 10 - GAZEBO ASSEMBLY | SHEATHING BOARD-W4L16239 (x8) | 1 7/16"x3 3/8"x73 1/4" (36x86x1861) | SHEATHING BOARD-W4L16240 (x8) | 1 7/16"x3 3/8"x45 3/4" (36x86x1161)
  • Page 25 STEP 11 - GAZEBO ASSEMBLY NOTE: USE THIS PAGE TO FAMILIARIZE YOURSELF WITH THE ROOF PANEL & ASSIST YOU IN THE COMING STEPS. WARNING: GLOVES SHOULD BE WORN WHEN HANDLING ROOF PANELS; EDGES ARE SHARP. • Note the pre-drilled holes on the top end of each sheet shown below. These holes will always go towards the ridge of the roof and will be used to install the ridge cap in a later step.
  • Page 26 STEP 12 - GAZEBO ASSEMBLY A4M01124 29 GA STEEL SHEETING (x2)
  • Page 27 STEP 13 - GAZEBO ASSEMBLY...
  • Page 28 STEP 14 - GAZEBO ASSEMBLY A4M01124 29 GA STEEL SHEETING (x2)
  • Page 29 STEP 15 - GAZEBO ASSEMBLY A4M00983 ROOF EDGE TRIM SPLICE (x2) A4M00982 ROOF EDGE TRIM (x4) REPEAT STEP FOR OTHER ROOF PANEL...
  • Page 30 STEP 16 - GAZEBO ASSEMBLY...
  • Page 31 STEP 17 - GAZEBO ASSEMBLY...
  • Page 32 STEP 18 - GAZEBO ASSEMBLY A4M01148 | TRUSS BRACKET (x2)
  • Page 33 STEP 19 - GAZEBO ASSEMBLY A4M01155 | TIE BRACKET (x4)
  • Page 34 STEP 20 - GAZEBO ASSEMBLY A4M01127 RIDGE CAP SPLICE (x1) A4M01116 RIDGE CAP 29 GA (x2)
  • Page 35 STEP 21 - GAZEBO ASSEMBLY | RIDGE CAP STIFFENER-W4L13590 (x2) | 15/16"x2 3/8"x47 5/8" (24x60x1210) | RIDGE CAP STIFFENER-W4L13591 A6P00398 RIDGE CAP PROTECTOR | 15/16"x2 3/8"x69 5/16" (24x60x1760) (x2) (x2)
  • Page 36 STEP 22 - GAZEBO ASSEMBLY RIDGE CAP ASSEMBLY FROM PREVIOUS STEP...
  • Page 37 STEP 23 - GAZEBO ASSEMBLY A4M01794 | POST PLATE A4M01793 | POST ANCHORING PLATE (x8) (x8)
  • Page 38 STEP 24 - GAZEBO ASSEMBLY A100241 | BYD ID TAG (x1)
  • Page 39 STEP 25 - GAZEBO ASSEMBLY...

  • Page 40: Power Port

    PowerPort™ 9220409 POWERPORT (x1) FOR POWERPORT INSTALLATION REFER TO ASSEMBLY INSTRUCTIONS THAT COME PACKAGED WITH THE POWERPORT KIT. INSTALL ON ANY POST THAT IS DESIRED. FOLLOW DIRECTIONS FOR PROPER INSTALLATION.

This manual is also suitable for:

2106550b
