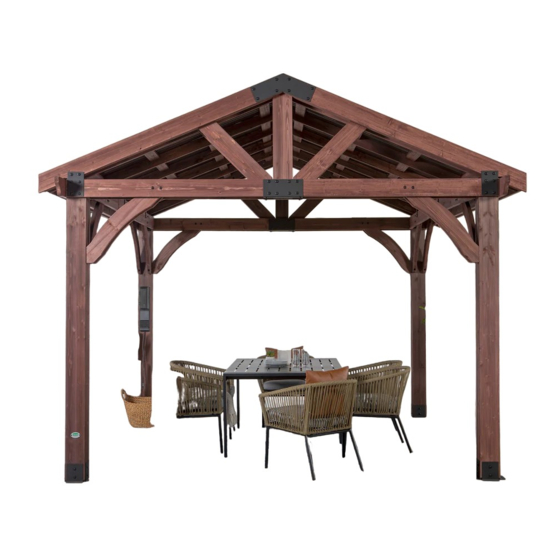

Backyard Discovery 12 x 10 BROOKDALE Owner's Manual & Assembly Instructions

Gazebo with electric
Hide thumbs Also See for 12 x 10 BROOKDALE:

Advertisement

Quick Links

Download this manual
12 x 10 BROOKDALE
MANUFACTURED BY:
Backyard Discovery
GAZEBO WITH ELECTRIC
3305 Airport Drive
Pittsburg, KS 66762
Model # 2006522
Owner's Manual & Assembly Instructions
800-856-4445
average 2 person assembly time
assembly time may vary based on skill level
For the most up to date assembly manual,
to register your set, or to order replacement parts please visit
www.backyarddiscovery.com
SAVE THIS ASSEMBLY MANUAL FOR FUTURE REFERENCE IN THE EVENT THAT
YOU NEED TO ORDER REPLACEMENT PARTS.
Made in China INS-2006522-A-BROOKDALE-ENG 12/03/2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the 12 x 10 BROOKDALE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Backyard Discovery 12 x 10 BROOKDALE

Summary of Contents for Backyard Discovery 12 x 10 BROOKDALE

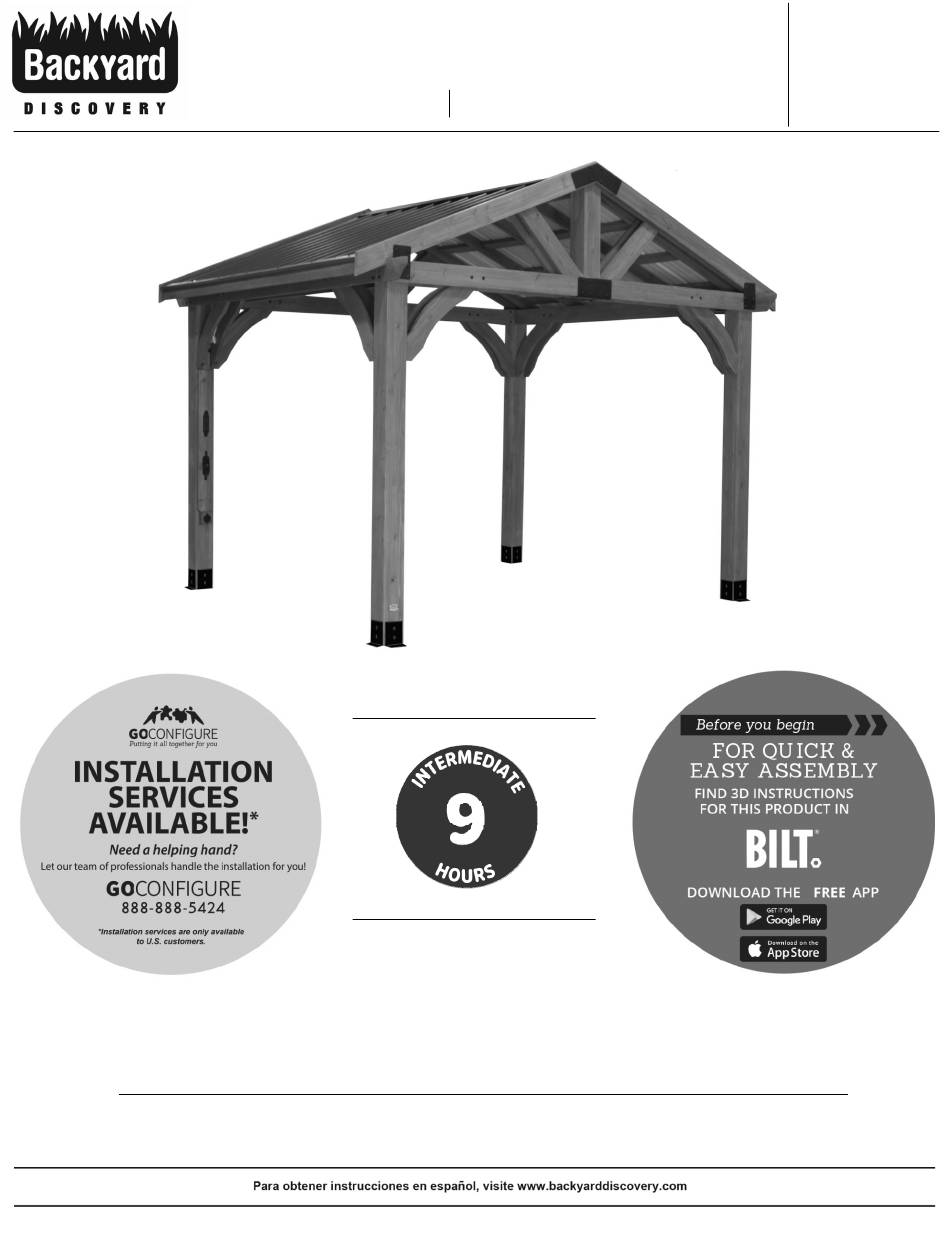

  • Page 1 12 x 10 BROOKDALE MANUFACTURED BY: Backyard Discovery GAZEBO WITH ELECTRIC 3305 Airport Drive Pittsburg, KS 66762 Model # 2006522 Owner's Manual & Assembly Instructions 800-856-4445 average 2 person assembly time assembly time may vary based on skill level For the most up to date assembly manual, to register your set, or to order replacement parts please visit www.backyarddiscovery.com...
  • Page 2 INSTALLATION SERVICES AVAILABLE! Need a helping hand? Let our team of professionals handle the installation for you! *Installation services are only available to U.S. customers. With Go Con gure, we bring you 18 years of experience right to your doorstep. We service a wide array of indoor and outdoor recreation products that most consumers don’t have the time or ability to deliver &...
  • Page 3 Owner’s Manual Please Read This Before Starting Assembly MISSING A PART? CALL US BEFORE GOING BACK TO THE STORE The store where you made your purchase does not stock parts for this item. If you have assembly questions or you are missing or have damaged parts, please call 1-800-856-4445 you can also visit www.backyarddiscovery.com...
  • Page 4 Botanical, Adventure Playsets, and Leisure Time Products. Backyard Discovery warrants that this product is free from defect in materials and workmanship for a period of one (1) year from the original date of purchase. This one (1) year warranty covers all parts including wood, hardware, and accessories. All wood carries a ve (5) year pro-rated warranty against rot and decay. Refer to the schedule below for charges associated with replacement of parts under this Limited Warranty.
  • Page 5 Owner’s Manual Safety Warnings and Maintenance Instructions WARNING IT IS IMPORTANT TO CHECK AND TIGHTEN ALL HARDWARE AT THE BEGINNING AND DURING THE SEASON AS THEY MAY LOOSEN DUE TO WOOD EXPANSION AND CONTRACTION. • DO NOT climb or walk on the roof for any reason •...
  • Page 6 About Our Wood Backyard Discovery uses 100% Cedar (C. Lanceolata) wood. Although we take great care in selecting the best quality lumber available, wood is still a product of nature and susceptible to weathering which can change the appearance of your set.
  • Page 7 Owner’s Manual Assembly Tips Protrusion Hazard Incorrect Correct If you see exposed threads and your bolt protrudes beyond the T-Nut you may have over tightened the bolt or used incorrect hardware. If you’ve overtightened, remove the bolt and add washers to eliminate the protrusion.

  • Page 8: Assembly Tip

    Owner’s Manual Assembly Tips ASSEMBLY TIP: Keep and eye out for these boxes which will contain helpful pictures and information making the assembly process as quick and painless as possible. Sorting Wood When removing the wood from the boxes we recommend arranging them by part number before you begin assembly.
  • Page 9 Tools Required for Installation Owner's Manual (2 NEEDED)
  • Page 10 Basic Setup Dimensions & Assembly Notes Owner's Manual It is critically important that you start with square and level footings, concrete pad or deck to attach your structure • Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step.

  • Page 11: Parts Identification

    Owner's Manual Parts Identification Wood Components (Not to Scale) ANGLE BRACE - W2A02967 1 5/16"x6 7/16"x35 3/4" (34x163x908) ANGLE BRACE - W2A02968 1 5/16"x6 7/16"x35 3/4" (34x163x908) BEAM - W4L13079 1 3/8"x5 1/4"x111 1/8" (36x134x2824) BEAM - W4L13080 1 3/8"x5 1/4"x64 5/8" (36x134x1640) BEAM - W4L13072 1 3/8"x5 1/4"x11 1/2"...
  • Page 12 Owner's Manual Parts Identification Wood Components (Not to Scale) SHEATHING BOARD - W4L13074 1 3/8"x3 3/8"x91 3/4" (36x86x2330) SHEATHING BOARD - W4L13081 1 3/8"x3 3/8"x27 1/4" (36x86x692) CORD COVER - W4L13083 1"x5 1/4"x43 5/8" (24x134x1109) RAFTER - W4L13077 1"x3 3/8"x105 1/8" (24x86x2670) FASCIA - W4L13078 1"x3 3/8"x59 3/8"...

  • Page 13: Hardware Components

    Owner's Manual Parts Identification Hardware Components H100829 BOLT WH BLK (x4) 5/16x9 1/2 H100765 BOLT WH 5/16x8 BLK (26) H100354 BOLT WH 5/16x6 1/2 BLK (18) H100194 BOLT WH BLK H100193 NUT BARREL WH BLK (x18) 5/16x2 1/2 (x42) 5/16x1-1/2 H100205 BOLT WH BLK H100192...
  • Page 14 Owner's Manual Parts Identification Hardware Components H100201 SCREW PFH BLK (x7) 8x2-1/2 H100630 WASHER FLAT BLK (x17) 8x19 H100391 SCREW PFH BLK (x86) H100198 WASHER LOCK EXT BLK (x92) 8x19 H100200 SCREW PFH BLK (x33) 8x1 1/2 H100536 SCREW PWH BLK (x33) 8x1 1/4 H100199...
  • Page 15 Owner's Manual Parts Identification Accessory Components (Not to Scale) A100241 A100314 BYD ID TAG (SMALL) WITHOUT AGES "A" REVISION TAG (x1) (x1) A4M00619 A4M00961 L BRACKET 66x66x127 - BLK ROOF BRACKET (x4) (x6) A4M00972 A4M00973 BRACKET BRACKET (x2) (x4) A4M00974 BRACKET A4M00979 (x4)
  • Page 16 Owner's Manual Parts Identification Accessory Components (Not to Scale) A4M00978 A4M00977 POST PLATE POST ANCHORING PLATE (x8) (x8) A6P00308 6x6 POST FOOT (x4) A6P00265 ELECTRICAL OUTLET KIT - PATENT PENDING A6P00171 STAIN MARKER (x1)
  • Page 17 Owner's Manual Parts Identification Accessory Components (Not to Scale) A4M01124 29 GA STEEL SHEETING (x8) A4M01116 RIDGE CAP 29 GA (x2) A4M01127 RIDGE CAP SPLICE (x1) A6P00398 RIDGE CAP PROTECTOR (x2) A4M00982 ROOF EDGE TRIM (x4) A4M00983 ROOF EDGE TRIM SPLICE (x2)
  • Page 18 STEP 1 Phase 1 POST - W2A02963 6"x6"x92 1/16" (152x152x2338) A6P00308 6x6 POST FOOT H100200 SCREW PFH BLK (x4) (x16) 8x1 1/2 POST - W2A020610 6"x6"x92 1/16" (152x152x2338) COMPLETE THIS STEP TWICE TIP: FOR EASE OF ASSEMBLY WE RECOMMEND USING SAW HORSES FOR STEPS 1 THROUGH 3.
  • Page 19 STEP 2 Phase 1 2'-1" [636 mm] A4M00619 PILOT HOLE BEAM - W4L13080 L BRACKET 66x66x127 - BLK (x4) DOWN 1 3/8"x5 1/4"x64 5/8" (36x134x1640) A4M00972 BRACKET (x4) POST - W2A02965 A4M00974 7"x7"x32 1/2" (152x152x845) BRACKET (x4) H100765 BOLT WH BLK (x24) 5/16x8 H100193...
  • Page 20 STEP 3 Phase 1 ANGLE BRACE - W2A02968 1 5/16"x6 7/16"x35 3/4" (34x163x908) H100206 LAG SCREW WH BLK H100205 BOLT WH BLK H100192 NUT BARREL WH BLK 5/16x3 (16) 5/16x2-1/4 (16) 5/16x7/8 H100198 WASHER LOCK EXT BLK H100199 WASHER LOCK EXT BLK (24) 8x19 (16)
  • Page 21 STEP 4 Phase 1 H100468 BOLT WH BLK (x8) 5/16x1 BEAM - W4L13075 1 3/8"x5 1/4"x102 3/8" (36x134x2600) H100192 H100199 WASHER LOCK EXT BLK NUT BARREL WH BLK (x8) (x8) 5/16x7/8 12x19 (x8) WASHER - 12x19 (x8) NUT BARREL - 7/8" (x8) BOLT WH - 1"...
  • Page 22 STEP 5 Phase 1 H100354 BOLT WH BLK BEAM - W4L13079 (x16) 5/16x6 1/2 1 3/8"x5 1/4"x111 1/8" (36x134x2824) (x2) BEAM - W4L13072 A4M00979 BRACKET H100193 NUT BARREL WH BLK H100199 WASHER LOCK EXT BLK 1 3/8"x5 1/4"x11 1/2" (36x134x292) (x4) (x4) (x16)
  • Page 23 STEP 6 Phase 1 H100205 BOLT WH BLK H100206 LAG SCREW WH BLK (x16) 5/16x2-1/4 H100192 NUT BARREL WH BLK 5/16x3 (x16) 5/16x7/8 ANGLE BRACE - W2A02967 1 5/16"x6 7/16"x35 3/4" (34x163x908) H100199 H100198 WASHER LOCK EXT BLK WASHER LOCK EXT BLK (x16) 12x19 (x24)
  • Page 24 STEP 7 Phase 1 END RAFTER - W2A02962 END RAFTER - W2A02966 ANGLE BRACE - W4L13071 A4M00973 BRACKET 2 13/16"x5 1/4"x80 5/8" (72x134x2048) 2 13/16"x5"x80 5/8" (72x134x2048) 1 3/8"x5 1/4"x30 1/4" (36x134x769) (x2) H100194 BOLT WH BLK H100206 LAG SCREW WH BLK H100407 BOLT WH BLK 5/16x2 1/2...
  • Page 25 STEP 8 Phase 1 RAFTER - W4L13073 OUTSIDE RAFTER - W4L13076 H100200 SCREW PFH BLK 1 3/8"x3 3/8"x77 3/8" (36x86x1965) 1 3/8"x3 3/8"x77 3/8" (36x86x1965) (10) 8x1 1/2 RAFTER - W4L13077 FASCIA - W4L13078 H100391 SCREW PFH BLK 1"x3 3/8"x59 3/8" (24x86x1507) 1"x3 3/8"x105 1/8"...
  • Page 26 STEP 9 Phase 1 SHEATHING BOARD - W4L13081 H100379 T-NUT BLK H100198 WASHER LOCK EXT BLK 1 3/8"x3 3/8"x27 1/4" (36x86x692) (16) 5/16 (16) 8x19 SHEATHING BOARD - W4L13074 H100391 SCREW PFH BLK H100459 BOLT WH BLK 1 3/8"x3 3/8"x91 3/4" (36x86x2330) (40) (16) 5/16x1 1/4...
  • Page 27 PREPARATION Phase 2 NOTE: USE THIS PAGE TO FAMILIARIZE YOURSELF WITH THE ROOF PANEL & ASSIST YOU IN THE COMING STEPS. WARNING: GLOVES SHOULD BE WORN WHEN HANDLING ROOF PANELS; EDGES ARE SHARP. • Note the pre-drilled holes on the top end of each sheet shown below. These holes will always go towards the ridge of the roof and will be used to install the ridge cap in a later step.
  • Page 28 STEP 1 Phase 2 H100760 10-16x1-1/4 WOODGRIP SCREW (x8) A4M01124 29 GA STEEL SHEETING (x2) 1/8 in [3 mm] 5/16 in HOLD SHEETING INSIDE OF FRAME [8 mm] (x8) SCREW - 1 1/4" NOTE: MAKE SURE YOUR ROOF PANEL IS NOTE THRU HOLES SQUARE BEFORE MOVING ON.
  • Page 29 STEP 2 Phase 2 H100760 10-16x1-1/4 WOODGRIP SCREW (x24) (x24) SCREW - 1 1/4" SHEATHING BOARD...
  • Page 30 STEP 3 Phase 2 H100760 10-16x1-1/4 WOODGRIP SCREW (x32) A4M01124 29 GA STEEL SHEETING (x2) 1/8 in [3 mm] HOLD SHEETING INSIDE OF FRAME (x32) SCREW - 1 1/4" NOTE HOLE LOCATIONS NOTE RIB OVERLAP (x2) 29 GA STEEL SHEETING FLUSH SHEETING...
  • Page 31 STEP 4 Phase 2 H100760 10-16x1-1/4 WOODGRIP SCREW (x8) A4M01124 29 GA STEEL SHEETING (x2) 5/16 in [8 mm] 1/8 in [3 mm] HOLD SHEETING TO INSIDE OF FRAME. NOTE: (x8) MAKE SURE YOUR ROOF PANEL IS SCREW - 1 1/4" SQUARE BEFORE MOVING ON.
  • Page 32 STEP 5 Phase 2 H100760 10-16x1-1/4 WOODGRIP SCREW (x24) (x24) SCREW - 1 1/4"...
  • Page 33 STEP 6 Phase 2 H100760 10-16x1-1/4 WOODGRIP SCREW (x32) A4M01124 29 GA STEEL SHEETING (x2) (x32) SCREW - 1 1/4" NOTE HOLE LOCATIONS 1/8" [3 mm] HOLD SHEETING TO INSIDE OF FRAME. (x2) 29 GA STEEL SHEETING FLUSH SHEETING NOTE RIB OVERLAP...
  • Page 34 STEP 7 Phase 2 H100759 SCREW TAPPING A4M00982 A4M00983 (16) 1/4x3/4 ROOF EDGE TRIM ROOF EDGE TRIM SPLICE (x4) (x2) COMPLETE THIS STEP TWICE NOTE: SCREWS GO THROUGH EDGE TRIM AND INTO THE TOP TIP: OF THE RIBS IN THE APPROXIMATE LOCATIONS SHOWN. DUE TO MULTIPLE LAYERS OF METAL ON THE EDGE TRIM, IT IS RECOMMENDED THAT A 1/8"...

  • Page 35: Two Person Lift

    STEP 8 Phase 2 H100829 BOLT WH BLK H100479 NUT LOCK BLK H100770 WASHER FLAT (x4) 5/16x9 1/2 H100391 SCREW PFH BLK (x4) (x4) 5/16 5/16 BLK (x4) COMPLETE THIS STEP TWICE TO INSTALL BOTH ROOF PANELS NOTE: WITH AT LEAST TWO PEOPLE LIFT ASSEMBLED ROOF PANEL AND SLIDE IT INTO THE TRACKS ON THE RAFTERS.
  • Page 36 STEP 9 Phase 2 H100407 H100192 H100198 H100199 BOLT WH BLK NUT BARREL WH BLK WASHER LOCK EXT BLK WASHER LOCK EXT BLK (x4) 5/16x1 1/2 (x4) 5/16x7/8 (x4) 8x19 (x4) 12x19 (x4) BOLT - 1 1/2" (x4) WASHER - 8x19 (x4) NUT BARREL - 7/8"...
  • Page 37 STEP 1 0 Phase 2 H100194 BOLT WH BLK H100205 BOLT WH BLK H100192 NUT BARREL WH BLK (x8) 5/16x2 1/2 (x8) (x16) 5/16x2-1/4 5/16x7/8 ANGLE BRACE - W4L13082 1 3/8"x5 1/4"x32 3/8" (36x134x823) H100199 H100198 WASHER LOCK EXT BLK WASHER LOCK EXT BLK (x16) 12x19...
  • Page 38 STEP 1 1 Phase 2 H100536 SCREW PWH BLK (x30) 8x1 1/4 A4M00961 ROOF BRACKET (x6) NOTE: CENTER ROOF BRACKETS ON EACH RAFTER AND ATTACH. (x30) SCREW - 1/4" (x6) ROOF BRACKET...
  • Page 39 STEP 1 2 Phase 2 A4M01127 A4M01116 RIDGE CAP SPLICE RIDGE CAP 29 GA (x1) (x2) RIDGE CAP ASSEMBLY PREPARATION NOTE: INSTALL THE PROVIDED RIDGE CAP SPLICE BY SLIDING EACH RIDGE CAP INTO THE SPLICE AS SHOWN UNTIL CENTERED. (x1) RIDGE CAP 29 GA (x1) RIDGE CAP SPLICE...

  • Page 40: Top View

    STEP 1 3 Phase 2 RIDGE CAP STIFFENER - W4L13591 1"x2 3/8"x69 1/4" (24x60x1760) (x2) H100833 SCREW WOODGRIP A6P00398 (16) RIDGE CAP PROTECTOR 10x3/4 (x2) RIDGE CAP STIFFENER - W4L13590 1"x2 3/8"x47 5/8" (24x60x1210) (x2) NOTE: ASSEMBLE BY ALIGNING THE HOLES ON EACH RIDGE CAP TO THE HOLES IN THE RIDGE CAP NOTE: SPLICE TO ENSURE THAT THE OVERALL...
  • Page 41 STEP 1 4 Phase 2 117 1/16 in [2974 mm] H100392 SCREW PWH BLK (x16) 8x3/4 RIDGE CAP ASSEMBLY FROM PREVIOUS STEP RIDGE CAP ASSEMBLY FROM PREVIOUS STEP NOTE: USING AN ADULT HELPER, SLIDE RIDGE CAP ASSEMBLY CAREFULLY ACROSS THE ROOF RIDGE UNTIL BOTH ENDS SIT INSIDE RAFTERS AS SHOWN.
  • Page 42 STEP 1 Phase 3 H100201 SCREW PFH BLK CORD COVER - W4L13083 CORD COVER - W4L13084 (x2) 8x2-1/2 1"x5 1/4"x43 5/8" (24x134x1109) 1"x2 3/8"x7 7/8" (24x60x201) H100391 SCREW PFH BLK A6P00265 (x8) ELECTRICAL OUTLET KIT - PATENT PENDING NOTE: PRESS THE ELECTRICAL CORD ASSEMBLY INTO THE CUT OUTS ON THE G5 CORD COVER, AS SHOWN.
  • Page 43 STEP 2 Phase 3 A4M00977 A4M00978 H100471 LAG SCREW WH BLK POST ANCHORING PLATE POST PLATE (x8) (x8) (x32) 5/16x1 1/2 (x32) LAG SCREW - 1 1/2" (x8) POST PLATE (x8) POST ANCHORING PLATE...
  • Page 44 STEP 3 Phase 3 H100200 SCREW PFH BLK A100241 A100314 BYD ID TAG (SMALL) WITHOUT AGES (x4) 8x1 1/2 "A" REVISION TAG (x1) (x1) (x1) BYD ID TAG (x2) SCREW - 1 1/2" FRONT (x1) REVISION TAG REAR (x2) SCREW - 1 1/2"...
  • Page 45 STEP 4 Phase 3 H100120 SCREW CONCRETE ANCHOR H100630 WASHER FLAT BLK (x16) 1/4x2 (x16) 8x19 NOTE: MANUFACTURER RECOMMENDS INSTALLATION ON CONCRETE SURFACE OR CONCRETE POST PADS. SEE BELOW. FOR INSTALLATION ON WOOD DECK, YOU MUST ENSURE THERE IS AMPLE STRUCTUAL SUPPORT UNDER DECK. (x16) SCREW - 2"...

This manual is also suitable for:

2006522
