Summary of Contents for Hyundai power products HMO130-210

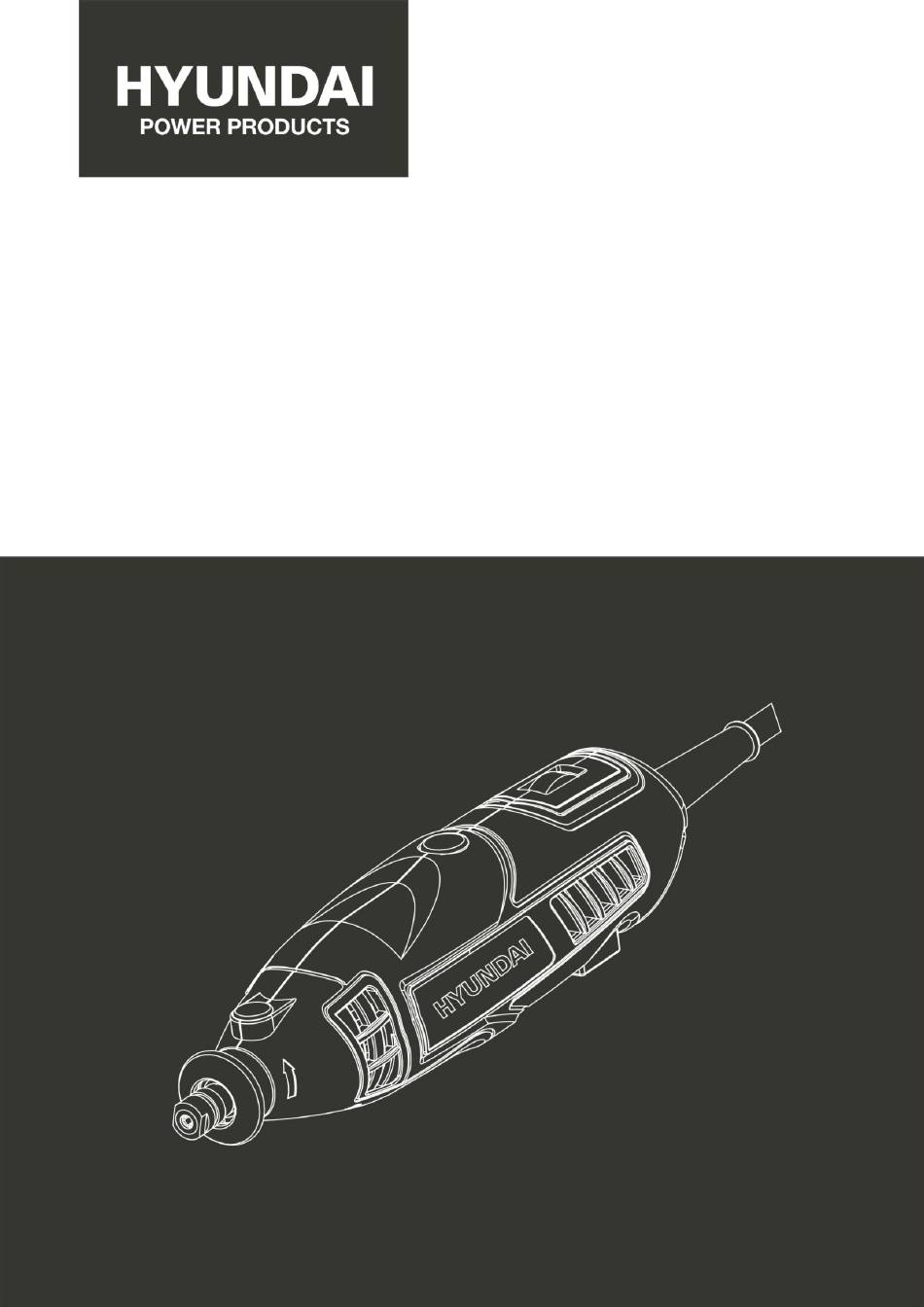

- Page 1 MULTI-FUNCTION ROTARY TOOL HMO130-210 ORIGINAL INSTRUCTIONS CAUTION : Read the instructions before using the machine.
-
Page 2: Table Of Contents
CONTENT 1. SAFETY INSTRUCTIONS 2. SYMBOLS 3. INTENDED USE 4. DESCRIPTION 5. CONTENTS OF PACKING 6. TECHNICAL DATA 7. ASSEMBLY 8. OPERATIONS 9. CLEANING AND MAINTENANCE 10. DISPOSAL 11. DECLARATION OF CONFORMITY WARRANTY PRODUCT FAILURE 14. WARRANTY EXCLUSIONS... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS 1.1 GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... -
Page 4: Safety Instructions For All Operations
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. -
Page 5: Further Safety Instructions For All Operations
e) The arbour size of wheels, sanding drums or any other accessory must properly fit the spindle or collet of the power tool. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control. Mandrel mounted wheels, sanding drums, cutters or other accessories must be fully inserted into the collet or chuck. - Page 6 Kickback and related warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel, sanding band, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out.
-
Page 7: Symbols
Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece. g) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. -
Page 8: Intended Use
3. INTENDED USE This machine is intended for grinding, sanding, polishing, wire brushing or cutting on metals, glass, wood and ceramics with the appropriate attachments. Do not use machine attachments for works other than those for which they are designed for! All other applications are expressly ruled out. 4. - Page 9 Collets Sanding bands Sanding bands Mandrel for cut-off wheel Mandrel for felt wheel Sanding shanks Grinding wheels Wet stone Cut off wheels 30+36=66 Rubber emery wheel...
- Page 10 Wrench Polishing compound Cut off wheels Sanding paper Felt wheels Felt wheels Felt wheel pointed Drill bits Nylon brush Wire brush...
-
Page 11: Technical Data
Flapwheel Grit L pin 6. TECHNICAL DATA Power supply 230V~, 50Hz Power input 160W No load speed 8000-35000/min Collet capacity (max) ： Ø3.2mm (Sound pressure level): 80.4 dB(A) K=3 dB(A) (Sound power level): 91.4 dB(A) K=3 dB(A) Vibration level a 3.819 m/s K=1.5m/s Weight:... -
Page 12: Assembly
7. ASSEMBLY 7.1 INSTALLING AND CHANGING A TOOL NOTE: the tool must not be plugged to a power socket during this operation. Wear glove during this operation to avoid injury which is caused by accessories. Press and maintain the spindle lock button (B); rotate the collet nut (D) slowly until it is loosen. -
Page 13: Operations
You can install an accessory on the flexible shaft by following the same procedure than explained above. Before use, be sure that the accessory is well installed and fixed on the flexible shaft. Collet Collets with various sizes are provided with this tool. They can be used according the size of the accessory which will be used. -
Page 14: Cleaning And Maintenance
Whet stone Cut off wheels fiberglass 4500~35000 Rubber emery wheel 4500~11000 Wrench Polishing compound Cut off wheels 4500~35000 Sanding paper 4500~20000 Felt wheels 4000~20000 Felt wheel pointed 4000~20000 Flap wheel 4000~20000 HSS cutters 9000~35000 Drill bits 4500~35000 Brush 4000~15000 L pin ... -
Page 15: Disposal
9.2 CLEANING This tool does not require any special maintenance. Regularly clean the ventilation slots. Avoid using solvents when cleaning plastic parts. Most plastic parts are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, carbon dust, etc. 9.3 LUBRICATION All the bearings in this tool are lubricated with a sufficient amount of high grade lubricant for the life of the unit under normal operating conditions;... -
Page 16: Declaration Of Conformity
BUILDER SAS ZI, 32 rue Aristide Bergès - 31270 Cugnaux - France Declare that the Product named below: 160 Watt Multi-Function Rotary Tool Model: HMO130-210 Serial number: 20210906101-20210907100 Meets the requirements of the Council Directives: Machine Directive 2006/42 / EC... -
Page 17: Warranty
11. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 18: Product Failure
12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 19: Warranty Exclusions
13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
