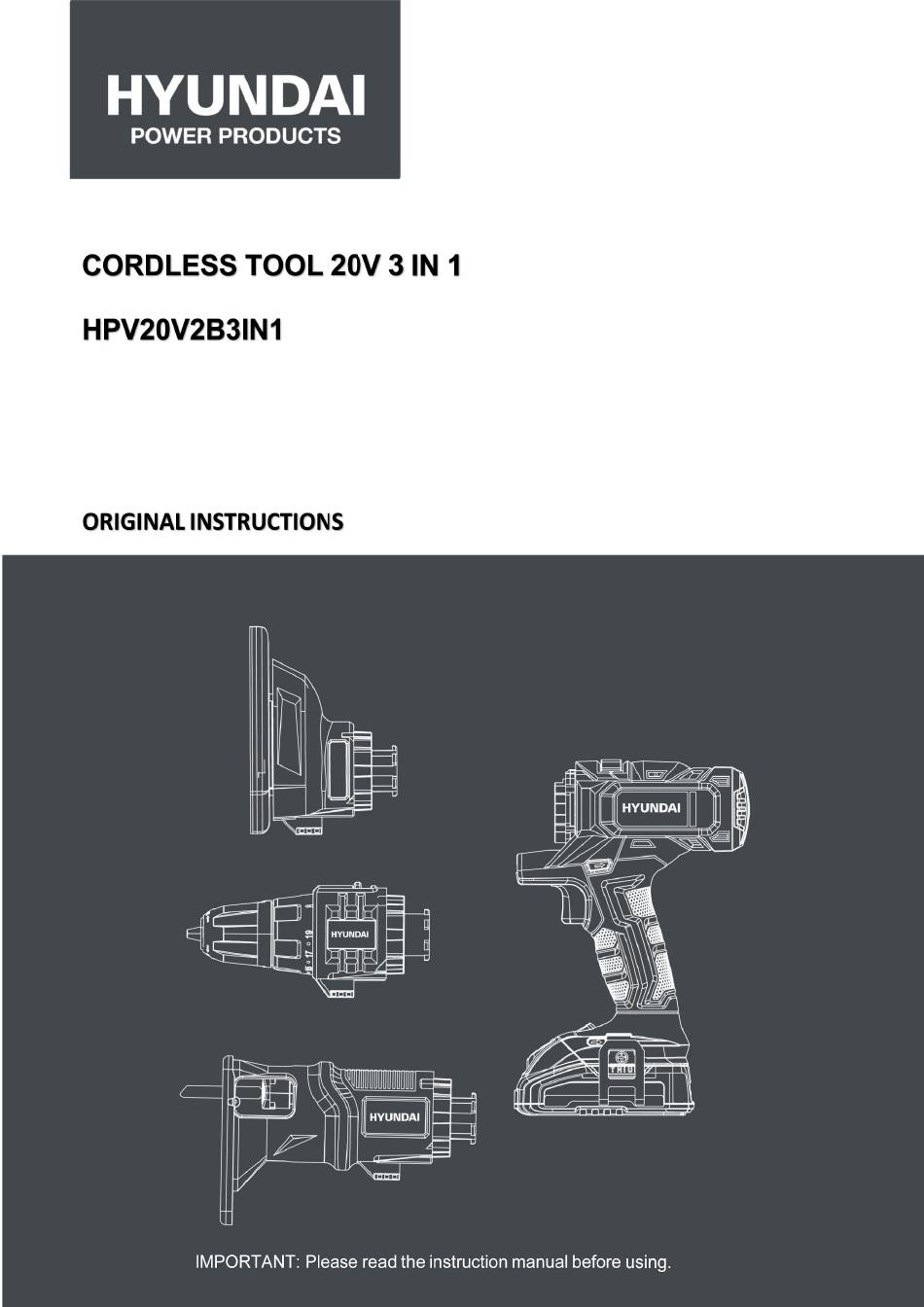

- Page 1 ORIGINAL INSTRUCTIONS >EN...
-
Page 2: General Power Tool Safety Warnings
ORIGINAL INSTRUCTIONS >EN 1. APPLICATION The cordless tool of 20V 3 in 1 is intended for Screwing screws in and out and for drilling holes in wood, metal or plastic. Sawing wood, metal and plastics Dry sanding of wood, plastic, putty and painting surfaces or varnished. This product is not suitable for sanding plaster-based substrates. - Page 3 ORIGINAL INSTRUCTIONS >EN b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Page 4 ORIGINAL INSTRUCTIONS >EN b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.
- Page 5 ORIGINAL INSTRUCTIONS >EN g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. 6) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
- Page 6 ORIGINAL INSTRUCTIONS >EN Charger Use the charger provided with the tool only to charge the battery. Never attempt to charge non-rechargeable batteries. Have defective cords replaced immediately. Do not expose to water. Do not open the charger. ...
-
Page 7: Additional Safety Instructions
ORIGINAL INSTRUCTIONS >EN ADDITIONAL SAFETY INSTRUCTIONS Warning! Sawing or sanding can result in the formation of hazardous dusts (e.g. arising from materials with paints containing lead, materials containing asbestos, metals or some wood types) which can present a hazard to the operator or persons in the vicinity. Make sure that the workplace is well ventilated. Always wear safety goggles, safety gloves and respiratory protection. -
Page 8: Residual Risks
ORIGINAL INSTRUCTIONS >EN sawblade can tilt and lead to loss of control over the power tool. After you have finished work, turn the power tool off and do not pull the sawblade out of the cut until it has come to a standstill. In this way you will avoid any kickback and can safely put down the power tool. - Page 9 ORIGINAL INSTRUCTIONS >EN c) Ear damage if working without ear protection. d) Eye damage if suitable eye protection is not worn. e) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly. Symbols Conforms to relevant safety standards To reduce the risk of injury, the user must read and understand this manual...
-
Page 10: Your Product
ORIGINAL INSTRUCTIONS >EN 3. YOUR PRODUCT 1 Keyless chuck 6 Motor unit 12 Jig saw attachment 2 Torque adjustment ring 7 Direction switch 13 Footplate 3 Gear selection switch 8 Handle 14 sawblade 4 Drill attachment 9 Rechargeable battery 15 Lever for unlocking sawblade 5 Unlocking lever for appliance 10 Unlock button for battery 16 Sanding plate... -
Page 11: Technical Data
ORIGINAL INSTRUCTIONS >EN local waste disposal system. WARNING! Packaging materials are not toys! Children must not play with plastic bags! There is a danger of suffocation! Accessories: Drill bits (1,5/2/3/4/5/6 mm) 3 screwing bits (50mm) Bit holder Abrasives for mouse sander ( 2*60gr / 2*120gr &... -
Page 12: Operation
ORIGINAL INSTRUCTIONS >EN Sound pressure level (LpA) ..88.6 dB(A) K=3 dB(A) Sound power level (LWA) ....99.6 dB(A), K=3 dB(A) Vibration (ah) .........4.572 m/s , K=1.5 m/s Battery type HPV20V2B3IN1 20V d.c. 1.5Ah Lithium-ion Charger type HPV20V2B3IN1 Input 110-240V~ 50-60Hz,0.4A Output 20V d.c., 500mA,10W Charging time 3-3.5 hours... - Page 13 ORIGINAL INSTRUCTIONS >EN 6).Frequently monitor the charger and battery pack while connected. 7).Unplug the charger and disconnect it from the battery pack when finished. 8).Allow the battery pack to cool completely before using it. 9).Store the charger and battery pack indoors, out of reach of children. Note: If the battery does not fit properly, disconnect it and confirm that the battery pack is the correct model for this charger as shown on the specification chart.
- Page 14 ORIGINAL INSTRUCTIONS >EN 5.2Replacing the appliance attachment WARNING! Secure the appliance against switching on (see “Switching on/off”) or remove the rechargeable battery from the appliance. There is an injury hazard if the device is switched on accidentally. Removing appliance attachment 1).
- Page 15 ORIGINAL INSTRUCTIONS >EN 2). Push the rotational direction speed (7) into the desired position: Clockwise rotation: to drill and screw in screws. Anticlockwise rotation: to unscrew screws. 3) If you place the direction switch (7) in the middle position, the device is secured against being switched Torque adjustment You can preselect the maximum torque.
- Page 16 ORIGINAL INSTRUCTIONS >EN 1. Push the adaptor into the opening on the sander attachment as far as the stop. 2. Connect a dust extractor suction hose to the adaptor. Note: If necessary, you can connect the suction hose of a vacuum cleaner without reducer to the adapter 5.6 Motor unit with jig saw attachment Installing/changing the blade WARNING! Secure the appliance against switching on (see “Switching on/off”).
-
Page 17: Battery Pack
ORIGINAL INSTRUCTIONS >EN 7. Cleaning/Maintenance Note: Repair and servicing work not described in this manual should always be carried by our Service Centre. Use only original parts. Switch off the device and remove the battery from the device before working with or transporting it. - Page 18 ORIGINAL INSTRUCTIONS >EN 10. DELARATION OF CONFORMITY BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that, Product: CORDLESS TOOL 20V 3 IN 1 Trade mark: HYUNDAI Model: HPV20V2B3IN1 Serial number: 20210331857-20210332856 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.
-
Page 19: Warranty
11. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 20: Product Failure
12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 21: Warranty Exclusions
13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 22 ORIGINAL INSTRUCTIONS >EN...
