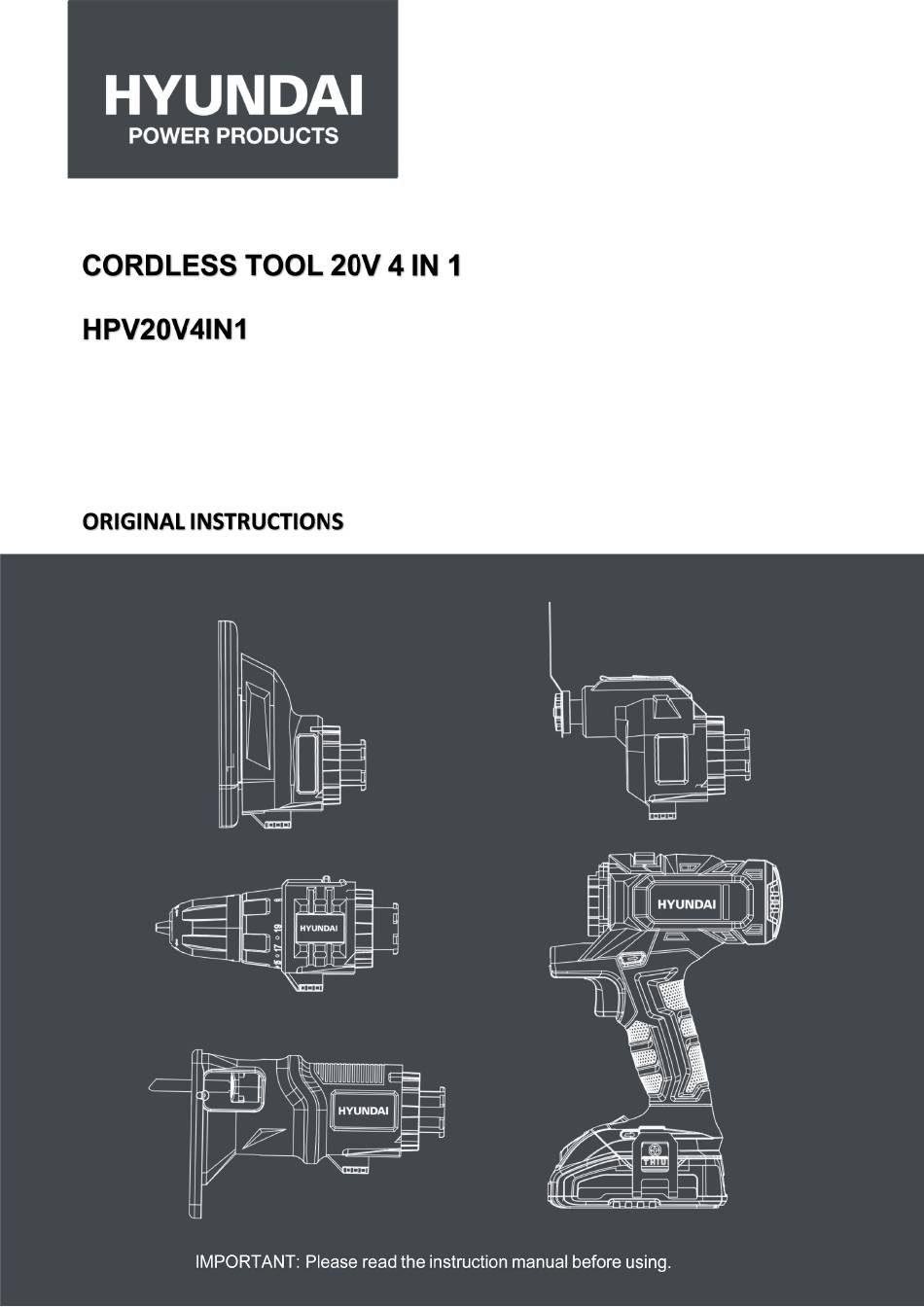

- Page 1 ORIGINAL INSTRUCTIONS >EN...
-
Page 2: General Power Tool Safety Warnings
ORIGINAL INSTRUCTIONS >EN 1. APPLICATION The cordless tool of 20V4 in 1 is intended for Screwing screws in and out and for drilling holes in wood, metal or plastic. Sawing wood, metal and plastics Dry sanding of wood, plastic, putty and painting surfaces or varnished. This product is not suitable for sanding plaster-based substrates. - Page 3 ORIGINAL INSTRUCTIONS >EN b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Page 4 ORIGINAL INSTRUCTIONS >EN b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.
- Page 5 ORIGINAL INSTRUCTIONS >EN g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. 6) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
- Page 6 ORIGINAL INSTRUCTIONS >EN Charger Use the charger provided with the tool only to charge the battery. Never attempt to charge non-rechargeable batteries. Have defective cords replaced immediately. Do not expose to water. Do not open the charger. ...
-
Page 7: Additional Safety Instructions
ORIGINAL INSTRUCTIONS >EN ADDITIONAL SAFETY INSTRUCTIONS Warning! Sawing or sanding can result in the formation of hazardous dusts (e.g. arising from materials with paints containing lead, materials containing asbestos, metals or some wood types) which can present a hazard to the operator or persons in the vicinity. Make sure that the workplace is well ventilated. Always wear safety goggles, safety gloves and respiratory protection. -
Page 8: Residual Risks
ORIGINAL INSTRUCTIONS >EN sawblade can tilt and lead to loss of control over the power tool. After you have finished work, turn the power tool off and do not pull the sawblade out of the cut until it has come to a standstill. In this way you will avoid any kickback and can safely put down the power tool. - Page 9 ORIGINAL INSTRUCTIONS >EN c) Ear damage if working without ear protection. d) Eye damage if suitable eye protection is not worn. e) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly. Symbols Conforms to relevant safety standards To reduce the risk of injury, the user must read and understand this manual...
-
Page 10: Your Product
ORIGINAL INSTRUCTIONS >EN 3. YOUR PRODUCT 1 Keyless chuck 7 Direction switch 14 sawblade 2 Torque adjustment ring 8 Handle 15 Lever for unlocking sawblade 3 Gear selection switch 9 Rechargeable battery 16 Multi-sander attachment 4 Drill attachment 10 Unlock button for battery 17 Stainless scraper 5 Unlocking lever for appliance 11 On/off switch... -
Page 11: Package Content List
ORIGINAL INSTRUCTIONS >EN 4. PACKAGE CONTENT LIST Remove all packaging materials. Remove remaining packaging and packing inserts (if included). Check that the package contents are complete. Check the appliance, the power cord, the power plug of charger and all accessories for transportation ... - Page 12 ORIGINAL INSTRUCTIONS >EN Jig saw function No load speed: 0-2600/min, Stroke:18mm, Cutting depth :15cm in metal, 60mm in wood Sound pressure level (LpA) ..86.9 dB(A) K= 3 dB(A) Sound power level (LWA) ....97.9 dB(A) K=3 dB(A) Vibration: “Cutting board” mode: ah, B=2.665 , K=1.5 “Cutting sheet metal”...
-
Page 13: Operation
ORIGINAL INSTRUCTIONS >EN 6. OPERATION 5.1 Charging the battery pack IMPORTANT: The battery pack is not fully charged at the factory. Before attempting to charge them, thoroughly read all of the safety instructions. 1) To assure that the charger you use are applicable to the battery pack. 2) Insert the charger into 110-240V~, 50/60Hz outlet. - Page 14 ORIGINAL INSTRUCTIONS >EN you squeeze the button. Before using the machine, please press switch trigger to check if the battery is full enough for properly working. Those 3 LED might show the status of the capacity level of the battery: Inserting and removing the battery.
- Page 15 ORIGINAL INSTRUCTIONS >EN 2) Slide the gear selector (3) into the required position: 1=> low speed 2=>high speed Set the direction of rotation The appliance’s direction of rotation can be changed with the rotational direction switch. 1). Wait for the appliance to come to a standstill. 2).
- Page 16 ORIGINAL INSTRUCTIONS >EN Attaching sanding sheet 1). Press the sanding sheet evenly onto the sanding plate. Ensure that the holes in the sanding sheet are placed above the openings in the sanding plate. Removing sanding sheet 2). Simply pull the sanding sheet off the sanding plate. Connecting dust extraction You can reduce dust production during sanding by attaching a dust extraction system.
- Page 17 ORIGINAL INSTRUCTIONS >EN Greater pressure: higher stroke rate. The on/off switch cannot be locked. 3). Place the footplate (13) on the workpiece. 4). Cut with a uniform forward motion. 5) After completion of the work, first remove the blade from the saw cut and then switch the appliance off. 5.6 Motor unit with multifunction tool Changing the tool WARNING! Secure the appliance against switching on (see “Switching on/off”).
- Page 18 ORIGINAL INSTRUCTIONS >EN Sawing • Use only undamaged sawblades in perfect condition. Only use metal sawblades for metalworking. • Ensure your stance is stable and hold the appliance tightly with both hands and away from your body. • Before sawing the workpiece, check for hidden foreign objects such as nails, screws. These must be removed.
-
Page 19: Battery Pack
ORIGINAL INSTRUCTIONS >EN 7. Cleaning/Maintenance Note: Repair and servicing work not described in this manual should always be carried by our Service Centre. Use only original parts. Switch off the device and remove the battery from the device before working with or transporting it. - Page 20 32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that, Product: CORDLESS TOOL 18V 4 IN 1 Trade mark: HYUNDAI Model: HPV20V4IN1 Serial number: 20210604456-20210605455 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.
-
Page 21: Warranty
11. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 22: Product Failure
12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 23: Warranty Exclusions
13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 24 ORIGINAL INSTRUCTIONS >EN...
