Hyundai power products HNHPACK18V-1 Original Instructions Manual

Cordless tools pack 18v
Hide thumbs

Advertisement

Table of Contents

ORIGINAL INSTRUCTIONS >EN
CORDLESS TOOLS PACK 18V
HNHPACK18V-1
WARNING: Read thoroughly the instruction manual before using.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HNHPACK18V-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HNHPACK18V-1

Summary of Contents for Hyundai power products HNHPACK18V-1

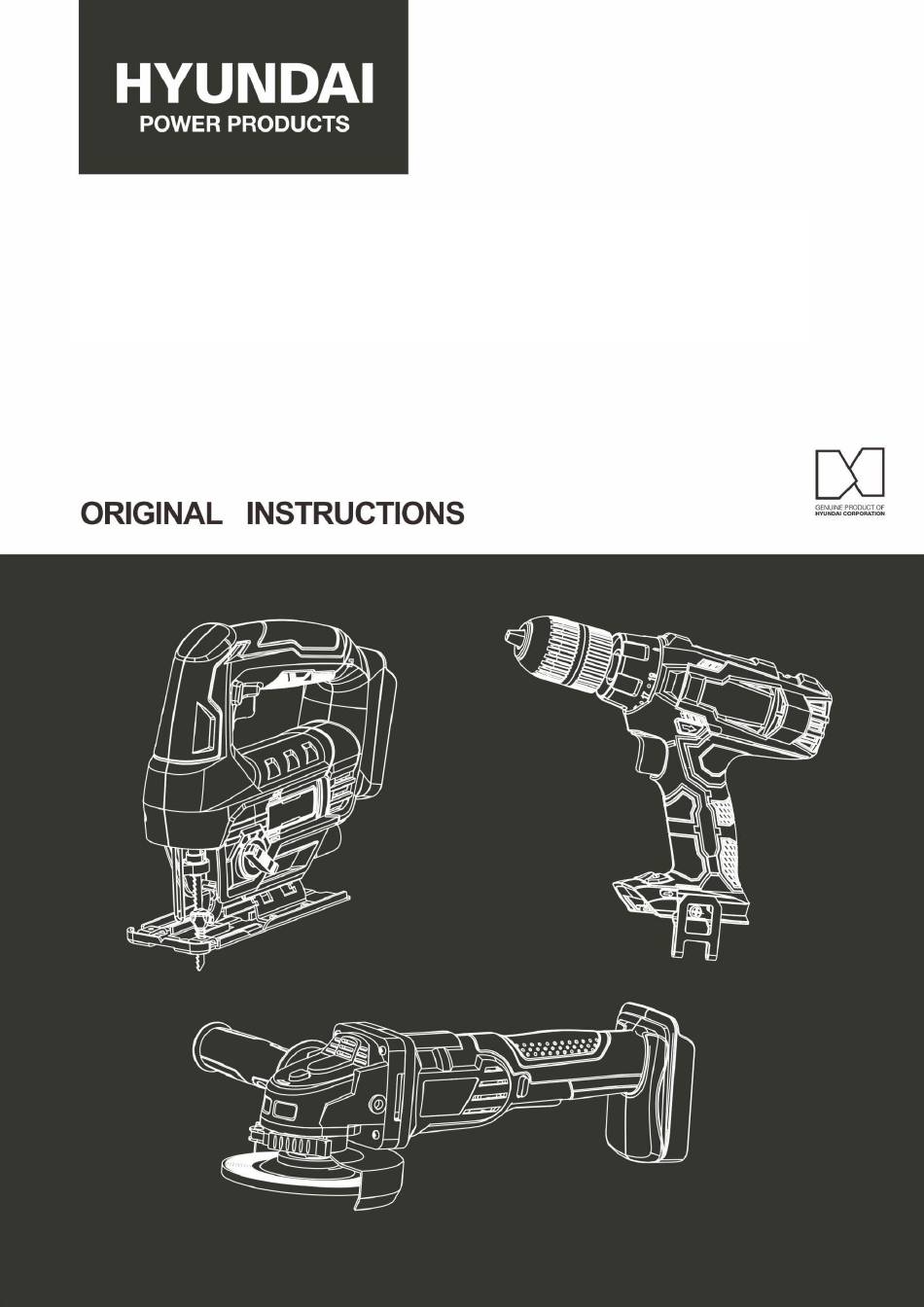

  • Page 1 ORIGINAL INSTRUCTIONS >EN CORDLESS TOOLS PACK 18V HNHPACK18V-1 WARNING: Read thoroughly the instruction manual before using.

  • Page 2: Table Of Contents

    CONTENTS 18V CORDLESS JIGSAW......................... 3 18V CORDLESS DRILL.......................... 14 18V CORDLESS ANGLE GRINDER.....................26 WARRANTY...............................42 PRODUCT FAILURE..........................43 WARRANTY EXCLUSIONS........................44...

  • Page 3: Cordless Jigsaw

    18V CORDLESS JIGSAW 1. APPLICATION The power tool is intended for sawing wood, metal and plastics. Not suitable for professional use. 2. SAFETY INSTRUCTIONS WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
  • Page 4 power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
  • Page 5 6) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
  • Page 6 SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGER Batteries Never attempt to open for any reason.  Do not store in locations where the temperature may exceed 40°C (104°F).  Charge only at ambient temperatures between 4°C and 40°C  (39.2°F and 104°F). Charge only using the charger provided with the tool.
  • Page 7 Do not probe the charger.  The charger is intended for indoor use only.  This charger can be used by children aged from 8  years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 8 Do not expose the charger or the battery to water. Do not incinerate the battery or charger. Ambient temperature of 40 ° C max. (only for the battery) Use the battery and charger Indoor use only. Recycling 3. YOUR PRODUCT 1.
  • Page 9 1x machine 1x manual 1x saw blade for wood If any parts are missing or damaged, please contact your dealer. 5. OPERATION Charging the battery pack IMPORTANT: The battery pack is not fully charged at the factory. Before attempting to charge them, thoroughly read all of the safety instructions.
  • Page 10 Inserting and removing the battery. Remove the battery: press the battery release latch in and at the same time pull the battery pack off. To insert the battery, push the battery pack onto the contacts of the tool. 5.1 Adjusting the soleplate •...
  • Page 11 Cutting board =13.2m/s , K=1.5m/s Cutting sheet metal =9.6m/s , K=1.5m/s Cutting depth steel 6 mm Battery pack HNHPACK18V-1 18V d.c. 1.5Ah Lithium-ion Cutting depth wood 56 mm Connection type T-shank Charger HNHPACK18V-1 Input 100-240V~ 50-60Hz, 19W Output; 21V d.c. 0.5A...
  • Page 12 Product: Cordless Jigsaw 18V Trade mark: Hyundai Model: HNHPACK18V-1 Serial number: 20240410312-20240410561 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

  • Page 13: Cordless Drill

    18V CORDLESS DRILL 1. APPLICATION The power tool is intended for driving and drilling through wood, metal, plastics and masonry. Not suitable for professional use. WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.
  • Page 14 c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on.
  • Page 15 f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.
  • Page 16 Do not heat. If batteries are heated to above 100°C (212°F), sealing and insulating separators and  other polymer components may be damaged resulting in electrolyte leakage and/or internal short circuiting leading to heat generation causing rupture or file. Moreover do not dispose of the batteries in fire, explosion and/or intense burning may result.
  • Page 17 Children shall not play with the appliance. Cleaning  and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by  the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. CAUTION: Do not recharge non-rechargeable batteries.
  • Page 18 3. YOUR PRODUCT (Fig.1) Keyless chuck Torque adjustment ring Two speed selector On/off switch trigger Battery pack Forward/reverse knob LED work light Button for battery capacity indicator Belt clip 10. Battery capacity indicator 11. Charger 4. FEATURES 4.1 Li-ion battery (5) Advantages of Li-ion batteries: Li-ion batteries have a higher capacity/weight ratio (more power for less heavy, more compact, battery) ...
  • Page 19 4.3 Torque adjustment ring (2) The drill has a torque adjustment ring. It allows you to select the desired torque depending on the task you have to perform (screwing / different types of screws into different materials). The proper setting depends on the type of material and the size of screw you are using.
  • Page 20 6).Frequently monitor the charger and battery pack while connected. 7).Unplug the charger and disconnect it from the battery pack when finished. 8).Allow the battery pack to cool completely before using it. 9).Store the charger and battery pack indoors, out of reach of children. Note: If the battery does not fit properly, disconnect it and confirm that the battery pack is the correct model for this charger as shown on the specification chart.
  • Page 21 1) Switch (4) The drill is started and stopped by depressing and releasing the ON/OFF switch trigger. 2) Switch lock The switch trigger can be locked in the center position. This helps to reduce the possibility of accidental starting when not in use. To lock the switch trigger, place the direction of rotation selector in the center position.
  • Page 22 10) DRILLING (1) Drilling Before use for drilling, set the torque When drilling hard smooth surface, use a center punch to mark the desired hole location. This will prevent the drill bit from slipping off center as the hole is started. Hold the tool firmly and place the tip of the drill or bit into the work piece, applying only enough pressure to keep the bit cutting.
  • Page 23 18 V d.c. Chuck 10 mm keyless Gear Train 2 Speed No Load Speed 0-400/0-1600 min Clutch 19+1 Positions HNHPACK18V-1 Charger type Input 100-240V~ 50-60Hz, 19W Output 21V d.c., 0.5A HNHPACK18V-1 Battery type 18V d.c. 1.5Ah Lithium-ion Charging time 3-5 hours Torque 40Nm (MAX.)
  • Page 24 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France, declares that， Product:Cordless Drill 18V Trade mark: Hyundai Model: HNHPACK18V-1 Serial number: 20240410312-20240410561 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.

  • Page 25: Cordless Angle Grinder

    18V CORDLESS ANGLE GRINDER 1. APPLICATION This machine is developed for grinding and roughing of metal and stone. With correct accessories the machine can also be used for brushing and sanding. It is not designed for commercial use. WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance.
  • Page 26 c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on.
  • Page 27 f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.
  • Page 28 cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
  • Page 29 broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing. d) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
  • Page 30 Make sure that the workpiece is sufficiently supported or clamped. Keep your hands away from the  surface to be cut. Always wear safety goggles and hearing protection. If desired or required also use another kind of  protection like for example an apron or helmet. Ensure that mounted wheels and points are fitted in accordance with the manufacturer’s instructions.
  • Page 31 Charger Use the charger provided with the tool only to charge  the battery. Never attempt to charge non-rechargeable batteries.  Have defective cords replaced immediately.  Do not expose to water.  Do not open the charger.  Do not probe the charger. ...
  • Page 32 Symbols Conforms to relevant safety standards To reduce the risk of injury, the user must read and understand this manual before using this product. Wear eye protection. Do not dispose of old appliances with domestic rubbish Class II, double isolation(only for charger) Do not expose the charger or battery to water.
  • Page 33 3. YOUR PRODUCT Fig A: 1. Lock lever for protection guard 7. Guard 2. Spindle lock button 8. Grinding disc (not included) 3. Main handle 9. Lock button 10. Release button 4. On/Off switch 11. Battery pack 5. Air vents 12.
  • Page 35 4. PACKAGE CONTENT LIST Remove all packaging materials.  Remove remaining packaging and packing inserts (if included).  Check that the package contents are complete.  Check the appliance, the power cord, the power plug of charger and all accessories for transportation ...
  • Page 36 other battery pack or any battery pack that does not securely fit the charger. NOTE: If battery is hot after continuous use in the tool, allow it to cool down to room temperature before charging. This will extend the life of your batteries. NOTE: Remove battery pack from charger stand which use your thumb or fingers, press the battery’s release button in and pull the battery pack off at the same time.
  • Page 37 5.5 Switching on / off (Fig. 6) Before engage the ON/OFF switch button, check that the grinding disc is properly fitted and run smoothly, the outer flange is well tightened. Connect the battery pack to the body of the angle grinder. ...
  • Page 38 Rated voltage (direct current) 18V d.c. Rotation speed 8500/min Max. disc diameter Ø 115mm Drive spindle thread M 14 Battery type HNHPACK18V-1 18V d.c. 1.5Ah, Lithium-ion Charger type HNHPACK18V-1 Input 100-240V~ 50-60Hz,19W Output 21V d.c., 0.5A Charging time 3-5 hours Sound pressure level 79.1 dB(A), K= 3 dB(A)
  • Page 39 8. SERVICE DEPARTMENT Damaged switches must be replaced by our after-sales service department.  If the connecting cable (or mains plug) is damaged, it must be replaced by a special connecting cable  which is available from our service department. Replacement of the connecting cable should only be carried out by our service department (see last page) or by a qualified specialist (qualified electrician).
  • Page 40 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France, declares that, Product: Angle Grinder 18V Trade mark: Hyundai Model: HNHPACK18V-1 Serial number: 20240410312-20240410561 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.

  • Page 41: Warranty

    WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 42: Product Failure

    PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 43: Warranty Exclusions

    WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
