Hyundai power products HMT20V Original Instructions Manual

Cordless multi tool
Hide thumbs

Advertisement

Table of Contents

CORDLESS MULTI TOOL
HMT20V
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMT20V and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HMT20V

Summary of Contents for Hyundai power products HMT20V

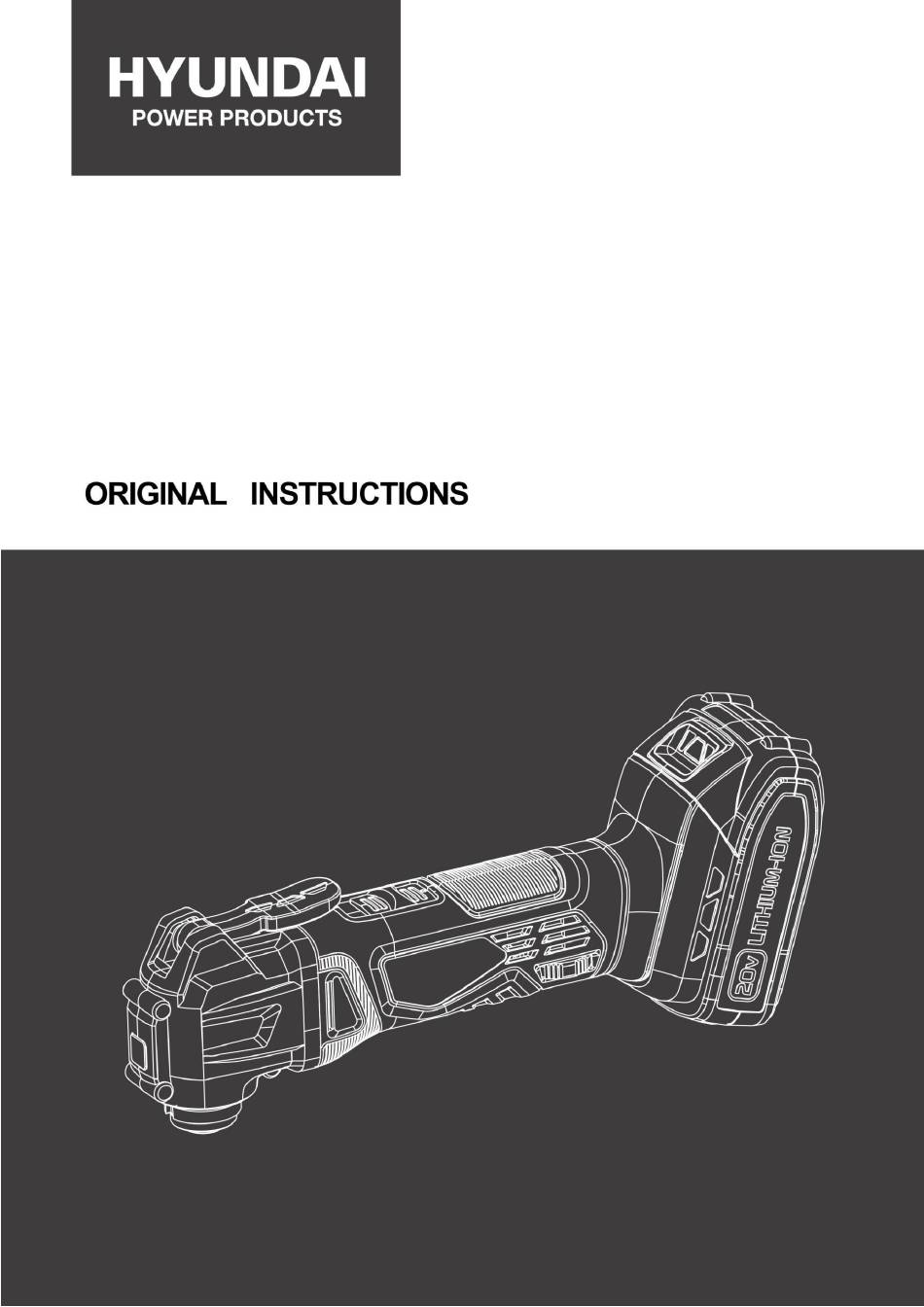

  • Page 1 CORDLESS MULTI TOOL HMT20V...

  • Page 2: Safety Warnings

    Warning: Please read the manual carefully before using the unit! 1. SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 3 f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
  • Page 4 f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.

  • Page 5: Your Product

    Intended use This tool is intended to be used for the sanding of little surfaces, corners, edges, for stripping, cutting Specially design to work with Hyundai range of battery and little pieces in metal, wood or plastics. charger. Do not use this tool for others purposes. Misuse will create accidents and injuries. It is intended only for a domestic use.
  • Page 6 Technical data Model HMT20V Voltage 20V d.c. Sound power level LwA = 88.0dB(A) K= 3dB(A) Sound pressure level LwA= 77.0dB(A) K= 3dB(A) Vibration Max. 4.68m/s² K= 1.5 m/s² Information: The declared vibration total value has been measured in accordance with a ...
  • Page 7 2. USE NOTE: Supplied without battery or charger...
  • Page 8 a. Charging (Attention: Charger and battery not included in this model) 1) Take the battery pack out of the equipment. Do this by pressing the push lock button. 2) Check that your mains voltage is the same as that marked on the rating plate of the battery charger.
  • Page 9 Charger indicator Indicator status Explanations and actions Ready for use The charger is connected to the mains and is ready for use; there is no battery pack in the charger. Charging The charger is charging the battery pack in charge mode. Battery pack is full of charge.
  • Page 10 d.Assembling /function choosing CHANGING ACCESSORIES Note: Before carrying out any assembly or disassembly of the accessories please ensure that the battery is disconnected from the machine. Lift the quick release lever and push it firmly forward over the detent, Fig.5. This will release the tool chuck.
  • Page 11 SPEED CONTROL (FIG.9) The orbital stroke rate is adjustable. To change the orbital stroke rate, turn the dial between 1 and MAX. The higher the number is, the higher the orbital stroke rate is. Turn the speed control to a desired position. NOTE: The dial cannot be turned directly from 1 to MAX or from MAX to 1.

  • Page 12: Maintenance

    3. MAINTENANCE WARNING! Always remove battery pack from your tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury. This power tool normally requires no maintenance; from time to time the ventilation slots on the motor casing should be cleaned out.

  • Page 13: Declaration Of Conformity (Ce)

    EC Declaration of conformity BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France declare that the machine Designation: CORDLESS MULTITOOL MODEL: HMT20V Serial number: 20200816505-20200816804 Is in conformity with the European Directives: Machine Directive 2006/42/EC EMC Directive 2014/30/EU...

  • Page 14: Warranty

    6. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 15: Product Failure

    7. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 16: Warranty Exclusions

    8. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
