Hyundai power products HPACK20V7-2 Original Instructions Manual

7 cordless tools pack20v
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN
7 CORDLESS TOOLS PACK 20V
HPACK20V7-2
CAUTION: READ THIS INSTRUCTION MANUAL BEFORE USE THIS TOOL !

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPACK20V7-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai power products HPACK20V7-2

Summary of Contents for Hyundai power products HPACK20V7-2

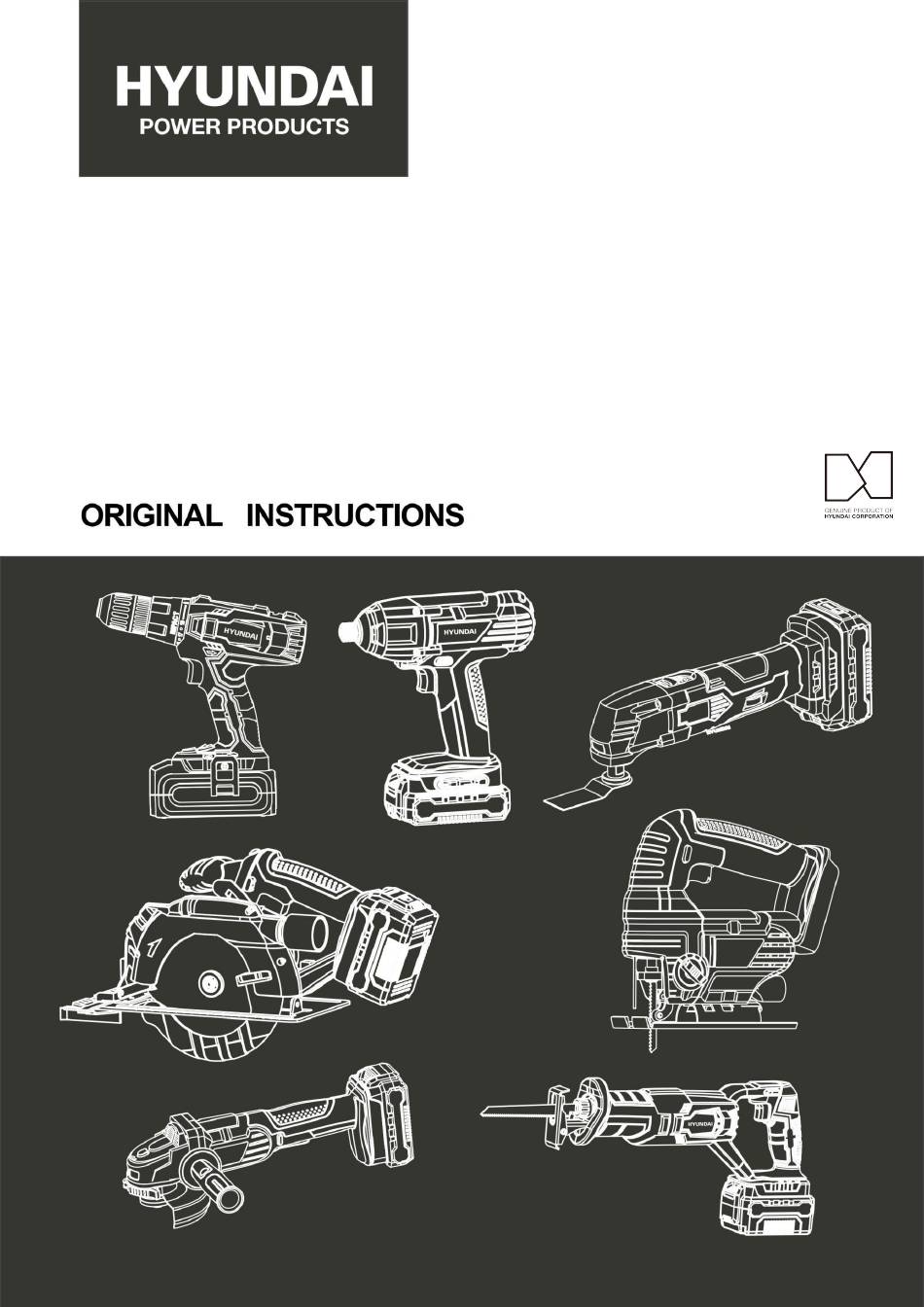

  • Page 1 7 CORDLESS TOOLS PACK 20V HPACK20V7-2 CAUTION: READ THIS INSTRUCTION MANUAL BEFORE USE THIS TOOL !

  • Page 2: Table Of Contents

    CONTENTS 20V CORDLESS IMPACT DRILL......................3 20V CORDLESS IMPACT DRIVER.......................16 20V CORDLESS MULTI TOOL......................25 20V CORDLESS CIRCULAR SAW.......................36 20V CORDLESS RECIPROCATING SAW..................48 20V CORDLESS ANGLE GRINDER.....................60 20V CORDLESS JIGSAW........................74 WARRANTY...............................84 PRODUCT FAILURE..........................85 WARRANTY EXCLUSIONS........................86...

  • Page 3: Cordless Impact Drill

    20V CORDLESS IMPACT DRILL HPACK20V7-2 1. APPLICATION The power tool is intended for driving and drilling through wood, metal, plastics and masonry. Not suitable for professional use. WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety.
  • Page 4 20V CORDLESS IMPACT DRILL g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
  • Page 5 20V CORDLESS IMPACT DRILL Drill safety warnings − Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss. − Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring.
  • Page 6 20V CORDLESS IMPACT DRILL Charger Use the charger provided with the tool only to charge  the battery. Never attempt to charge non-rechargeable batteries.  Have defective cords replaced immediately.  Do not expose to water.  Do not open the charger. ...
  • Page 7 20V CORDLESS IMPACT DRILL Symbols Conforms to relevant safety standards To reduce the risk of injury, the user must read and understand this manual before using this product. Wear ear protectors. Exposure to noise can cause hearing loss. Wear eye protection. Class II, double isolation(only for charger) Do not dispose of old appliances with domestic rubbish Do not expose the charger or the battery to water.
  • Page 8 20V CORDLESS IMPACT DRILL 3. YOUR PRODUCT FIG A Fig 1 Fig 1a Keyless chuck LED work light Torque adjustment ring Battery pack release button Two speed selector Battery capacity indicator On/off switch trigger Button for battery capacity indicator Battery pack Belt clip Forward/reverse knob...
  • Page 9 20V CORDLESS IMPACT DRILL 4. FEATURES 4.1 Li-ion battery (5) Advantages of Li-ion batteries: Li-ion batteries have a higher capacity/weight ratio (more power for less heavy, more compact, battery)  No memory effect (capacity loss after several charge/discharge cycles) like other type batteries. ...
  • Page 10 20V CORDLESS IMPACT DRILL 5. OPERATION 5.1 Charging the battery pack IMPORTANT: The battery pack is not fully charged at the factory. Before attempting to charge them, thoroughly read all of the safety instructions. 1) To assure that the charger you use are applicable to the battery pack. 2) Insert the charger into 220-240V~,50-60Hz outlet.
  • Page 11 20V CORDLESS IMPACT DRILL 1. Turn ring A anticlockwise with the other hand until the drill chuck opening is large enough to accept the tool. 2. Insert the drill or the screwdriver bit into the drill chuck. 3. Turn ring A clockwise until the tool is clamped tightly. 4.
  • Page 12 20V CORDLESS IMPACT DRILL Important: NEVER adjust this two-speed selector whilst the drill is running. Always let it come to a complete stop first. 10) LED light The LED work-light can light prior to motor running if you press the switch lightly, which keep the work area to be lighted for checking clearly at first, and it lights also during your operation.

  • Page 13: Cleaning And Maintenance

    Chuck 10 mm keyless Gear Train 2 Speed No Load Speed 0-400/0-1600 min Clutch 19+2 Positions Charger type HPACK20V7-2 Input 220-240V~ 50-60Hz,65W Output 21V d.c., 2.5A Battery type HPACK20V7-2 20V d.c. 2Ah / 4Ah Lithium-ion Charging time 1-2 hours Torque 40Nm (MAX.)
  • Page 14 20V CORDLESS IMPACT DRILL Information: − the declared vibration total value(s) and the declared noise emission value(s) have been measured in accordance with a standard test method and may be used for comparing one tool with another; − the declared vibration total value(s) and the declared noise emission value(s) may also be used in a preliminary assessment of exposure.

  • Page 15: Declaration Of Conformity

    32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that， Product:Cordless MPACT Drill 20V Trade mark: Hyundai Model: HPACK20V7-2 Serial number: 20230508106-20230508405 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.

  • Page 16: Cordless Impact Driver

    CORDLESS IMPACT DRIVER 20V HPACK20V7-2 WARNING: READ THE FOLLOWING INSTRUCTIONS BEFORE USE THIS MACHINE. 1. INTENDED USE The cordless impact driver is intended to loosen/tighten screws, bolts and nuts. It is not designed for commercial use. Note: Only use the drill and impact driver as described in this instruction manual. Any other use is deemed improper and may result in personal injury.
  • Page 17 CORDLESS IMPACT DRIVER 20V Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
  • Page 18 CORDLESS IMPACT DRIVER 20V Safety instructions for all operations a) Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
  • Page 19 CORDLESS IMPACT DRIVER 20V Charger Use the charger provided with the tool only to charge  the battery. Never attempt to charge non-rechargeable batteries.  Have defective cords replaced immediately.  Do not expose to water.  Do not open the charger. ...

  • Page 20: Your Product

    CORDLESS IMPACT DRIVER 20V Symbols Conforms to relevant safety standards To reduce the risk of injury, the user must read and understand this manual before using this product. Wear ear protectors. Exposure to noise can cause hearing loss. Wear eye protection. Do not dispose of old appliances with domestic rubbish Do not expose the charger or the battery to water.
  • Page 21 Voltage 20Vd.c. Torque max 140Nm Coupler 1/4in.(6.35mm) No load speed 0-2800/min Charger type HPACK20V7-2 Input 220-240V~ 50-60Hz,65W Output 21V d.c., 2.5A Battery type HPACK20V7-2 20V d.c. 2Ah / 4Ah Lithium-ion Sound power level 78dB(A) K= 3dB(A) Sound pressure level 67dB(A) K= 3dB(A) Vibration 2.152m/s²...
  • Page 22 CORDLESS IMPACT DRIVER 20V 4. OPERATION 4.1 Charging the battery pack IMPORTANT: The battery pack is not fully charged at the factory. Before attempting to charge them, thoroughly read all of the safety instructions. 1) To assure that the charger you use are applicable to the battery pack. 2) Insert the charger into 220-240V~,50-60Hz outlet.

  • Page 23: Maintenance And Storage

    CORDLESS IMPACT DRIVER 20V 4.2 Starting and stopping the operation 1) Insert/remove the socket adaptor. Pull the Driver bit retaining ring forward.  Insert or remove the adaptor/bit.  Release the drive bit retaining ring, it will return to its normal position. ...
  • Page 24 ZI, 32 rue Aristide Bergès- 31270 Cugnaux-France Tel: + 33 (0) 5.34.502.502 Fax: + 33 (0) 5.34.502.503 Declares that the machinery designated below: CORDLESS IMPACT DRIVER Model: HPACK20V7-2 Serial number: 20230508106-20230508405 Complies with the provisions of the Directive «achinery»2006/42/CE and national laws transposing it:...

  • Page 25: Cordless Multi Tool

    CORDLESS MULTI TOOL 20V HPACK20V7-2 CAUTION: READ THIS INSTRUCTION MANUAL BEFORE USE THIS MACHINE! 1. INTENDED USE This tool is intended to be used for the sanding of little surfaces, corners, edges, for stripping, cutting little pieces in Specially design to work with Hyundai range of battery and charger.
  • Page 26 CORDLESS MULTI TOOL 20V unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
  • Page 27 CORDLESS MULTI TOOL 20V 6) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
  • Page 28 CORDLESS MULTI TOOL 20V Charger  Use the charger provided with the tool only to charge the battery.  Never attempt to charge non-rechargeable batteries.  Have defective cords replaced immediately.  Do not expose to water.  Do not open the charger. ...
  • Page 29 CORDLESS MULTI TOOL 20V Symbols Conforms to relevant safety standards To reduce the risk of injury, the user must read and understand this manual before using this product. Wear ear protectors. Exposure to noise can cause hearing loss. Wear eye protection. Class II, double isolation(only for charger) Wear mask protection in dust condition.
  • Page 30 1pc stainless scraper; 1pc wrench 2pcs sanding paper 60 # 80 # a. Technical data Voltage 20V d.c. Oscillation: 5000-18000/min Oscillation Angle: 3° Battery type HPACK20V7-2 20V d.c. 2Ah / 4Ah Lithium-ion Charger type HPACK20V7-2 Input 220-240V~ 50-60Hz,65W Output 21V d.c., 2.5A...
  • Page 31 CORDLESS MULTI TOOL 20V Sound power level LwA = 88.23dB(A) K= 3dB(A) Sound pressure level LwA= 77.23dB(A) K= 3dB(A) Vibration No load: ah= 6.076m/s² K= 1.5m/s² Sanding:ah= 2.169m/s² K= 1.5 m/s² Information: − the declared vibration total value(s) and the declared noise emission value(s) have been measured in accordance with a standard test method and may be used for comparing one tool with another;...
  • Page 32 CORDLESS MULTI TOOL 20V 1)Charging the battery pack IMPORTANT: The battery pack is not fully charged at the factory. Before attempting to charge them, thoroughly read all of the safety instructions. 1) To assure that the charger you use are applicable to the battery pack. 2) Insert the charger into 220-240V~,50-60Hz outlet.
  • Page 33 CORDLESS MULTI TOOL 20V 2) MOUNTING THE TOOL (See Fig. C1-C3) CAUTION: Ensure the battery is removed from the jigsaw before changing blades or making any adjustments. Always wear protective gloves when changing accessories (tools) as the edges may be sharp and could cause injury. The accessories (tools) can become very hot during use so please exercise caution when replacing to avoid burns and other injuries.

  • Page 34: Maintenance

    CORDLESS MULTI TOOL 20V 8) SAWING WITH THE END CUT SAW BLADE (SEE Fig. G) WARNING: the sawing teeth are very sharp. Do not touch during mounting and application. The workpiece must be inserted firmly or clamped tightly before it is cut. Typical application: wood, plaster board, soft plastics and metal (e.

  • Page 35: Declaration Of Conformity (Ce)

    7. DECLARATION OF CONFORMITY CE BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France declare that the machine Designation: CORDLESS MULTITOOL MODEL:HPACK20V7-2 Serial number: 20230508106-2023050840 Is in conformity with the European Directives: Machine Directive 2006/42/EC EMC Directive 2014/30/EU...

  • Page 36: Cordless Circular Saw

    20V CORDLESS CIRCULAR SAW HPACK20V7-2 CAUTION: READ THIS INSTRUCTION MANUAL BEFORE USE THIS MACHINE! 1. SAFETY INSTRUCTIONS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
  • Page 37 20V CORDLESS CIRCULAR SAW g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
  • Page 38 20V CORDLESS CIRCULAR SAW corrective actions to eliminate the cause of blade binding. c) When restarting a saw in the workpiece, center the saw blade in the kerf and check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.
  • Page 39 20V CORDLESS CIRCULAR SAW • Immediately rinse with water. Neutralize with a mild acid such as lemon juice or vinegar. • In case of eye contact, rinse abundantly with clean water for at least 10 minutes. Consult a physician. Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate the battery.
  • Page 40 20V CORDLESS CIRCULAR SAW Symbols Conforms to relevant safety standards To reduce the risk of injury, the user must read and understand this manual before using this product. Wear ear protectors. Exposure to noise can cause hearing loss. Wear eye protection. Class II, double isolation(only for charger) Do not dispose of old appliances with domestic rubbish Ne pas exposer le chargeur ni la batterie à...
  • Page 41 20V CORDLESS CIRCULAR SAW 2. YOUR PRODUCT a. Description Fig.D Fig.E Fig. A Fig. B 1. Dust extraction port 12. Miter angle adjustment knob 2. Lower guard lever 13. Laser on/off switch 3. Lower guard 14. Lock off button 4. Blade clamp bolt 15.
  • Page 42 52mm (90°); 36mm (45°) 0°- 45° Miter angle 7000 /min Max speed saw blade Φ165mmx20mmx2.2mmx18T Saw blades HPACK20V7-2 Battery pack 20V d.c. 2Ah / 4Ah Lithium-ion HPACK20V7-2 Charger Input 220-240V~ 50-60Hz, 65W Output; 21V d.c. 2.5A 97 dB(a) K=3 dB(A)
  • Page 43 3. ASSEMBLY WARNING! Remove the battery pack before assembly. The tool should not use any abrasive wheels. Gloves must be weared to avoid injury risk 1) Attaching the saw blade (Fig. F) a) Raise the lower guard. b) Slip the blade in position. c) Insert the outer flange and blade clamp bolt.

  • Page 44: Operation

    3) Adjusting the cutting depth (Fig. H) a) Loosen the cutting depth adjustment knob. b) Hold the base plate against the edge of the workpiece and lift the saw to the desired cutting depth. c) Tighten the cutting depth adjustment knob. 4) Setting the miter angle (Fig.
  • Page 45 Battery capacity indicator There are battery capacity indicators on the battery pack; you can check the capacity status of the battery if you squeeze the button . Before using the machine, please press switch trigger to check if the battery is full enough for properly working.

  • Page 46: Troubleshooting

    3) Storage a) Thoroughly clean the circular saw and its accessories before storage. b) Store the circular saw out of the reach of children in a stable and secure place. 6. Troubleshooting Problem Possible causes Possible solutions Cannot start Battery pack not installed Remove and insert the battery properly pack again...

  • Page 47: Declaration Of Conformity

    ZI, 32 rue Aristide Bergès – 31270 Cugnaux – France Declare that the following machine: 20V Cordless Circular Saw HPACK20V7-2 Serial number: 20230508106-2023050840 Is in conformity with the Directive Machine2006/42/EC and with the regulation transposing it. Also in conformity with the following Directives: EMC Directive 2014/30/UE Noise Directive 2000/14/EC Annex VI &...

  • Page 48: Cordless Reciprocating Saw

    CORDLESS RECIPROCATING SAW 20V HPACK20V7-2 CAUTION: READ THIS INSTRUCTION MANUAL BEFORE USE THIS MACHINE! 1. INTENDED USE This saw intended to be used for cutting wood with the provided blade; that includes plywood, panelling, composition board and hardwood. Use this blade only for cutting wood. Cutting others material can create accidents and injuries.
  • Page 49 CORDLESS RECIPROCATING SAW 20V d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

  • Page 50: Specific Safety Rules

    CORDLESS RECIPROCATING SAW 20V NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
  • Page 51 CORDLESS RECIPROCATING SAW 20V Charge only using the charger provided with the tool.  Store your batteries in a cool dry place (5°C-20°C/41°F-68°F). Never store batteries in discharged state.  It is better for Li-ion batteries to discharge and reload them regularly (at least 4 times a year). The ideal charge ...
  • Page 52 CORDLESS RECIPROCATING SAW 20V sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning ...
  • Page 53 CORDLESS RECIPROCATING SAW 20V Use the battery and charger Indoor use only. Fuse Class II, double isolation(only for charger) Recycling. 3. YOUR PRODUCT a. Description 1. Saw blade 2. Soleplate 3. Lock-off button for ON/OFF switch 4. ON/OFF switch 5. Battery pack 6.
  • Page 54 20V d.c. No load speed 0-2800/min Cutting capacity 65mm in wood / 6mm in metal / 26mm in plastic Charger type HPACK20V7-2 Input 220-240V~ 50-60Hz,65W Output 21V d.c., 2.5A Battery type HPACK20V7-2 20V d.c. 2Ah / 4Ah Lithium-ion Sound power level LwA: 92.93dB(A) K=5dB(A)
  • Page 55 CORDLESS RECIPROCATING SAW 20V 5) When fully charged the green light(2) will be constantly lit. 6).Frequently monitor the charger and battery pack while connected. 7).For a fully discharged battery or a new battery, allow the battery pack to charge for 1-2 hours. The green lights will stay on (not flash) when the battery is finished charging.
  • Page 56 CORDLESS RECIPROCATING SAW 20V 4.3 Install / remove the saw blade The product is provided with a blade, intended to be used for cutting wood. That includes plywood, panelling, composition board and hardwood. Use this blade only for cutting wood. Cutting others material can create accidents and injuries. Others type of blades can be used in this machine, such as blades for cutting drywall, plastics, metals, etc.
  • Page 57 CORDLESS RECIPROCATING SAW 20V 4.5 Starting and stopping The reciprocating saw is equipped with a lock button (3) which reduces the possibility of accidental starting. The lock button (3) is located on the handle above the on/off switch trigger. You must depress the lock button in order to pull the switch trigger.
  • Page 58 CORDLESS RECIPROCATING SAW 20V 5. MAINTENANCE AND STORAGE a. Maintenance After use and before cleaning and maintenance, remove the blade and the battery form the tool. Clean the housing only with a damp cloth. Do not use solvents! Then wipe thoroughly. Check the condition of the tool.
  • Page 59 7. DECLARATION OF CONFORMITY BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France declare that the machine Designation: Cordless Reciprocating saw Model: HPACK20V7-2 Serial number: 20230508106-2023050840 Is in conformity with the European Directives: Machine Directive 2006/42/EC EMC Directive 2014/30/EU...

  • Page 60: Cordless Angle Grinder

    CORDLESS ANGLE GRINDER 20V HPACK20V7-2 1. APPLICATION This machine is developed for grinding and roughing of metal and stone. With correct accessories the machine can also be used for brushing and sanding. It is not designed for commercial use. WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance.
  • Page 61 CORDLESS ANGLE GRINDER 20V Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
  • Page 62 CORDLESS ANGLE GRINDER 20V b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. Safety instructions for all operations Safety Warnings Common for Grinding, Sanding, Wire Brushing, Polishing or Abrasive Cutting-Off Operations: a) This power tool is intended to function as a grinder and cut-off tool.
  • Page 63 CORDLESS ANGLE GRINDER 20V Further safety instructions for all operations Kickback and Related Warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding.
  • Page 64 CORDLESS ANGLE GRINDER 20V power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
  • Page 65 CORDLESS ANGLE GRINDER 20V Store your batteries in a cool dry place (5°C-20°C/41°F-68°F). Never store batteries in discharged state.  It is better for Li-ion batteries to discharge and reload them regularly (at least 4 times a year). The ideal charge for ...
  • Page 66 CORDLESS ANGLE GRINDER 20V way and understand the hazards involved. Children shall not play with the appliance. Cleaning  and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by ...

  • Page 67: Your Product

    CORDLESS ANGLE GRINDER 20V 3. YOUR PRODUCT 1. Lock lever for protection guard 2. Spindle lock button 3. Main handle 4. On/Off switch 5. Air vents 6. Auxiliary handle 7. Guard 8. Grinding disc (not included) 9. Lock button 10. Release button 11.
  • Page 68 CORDLESS ANGLE GRINDER 20V...

  • Page 69: Package Content List

    CORDLESS ANGLE GRINDER 20V 4. PACKAGE CONTENT LIST Remove all packaging materials.  Remove remaining packaging and packing inserts (if included).  Check that the package contents are complete.  Check the appliance, the power cord, the power plug and all accessories for transportation damage. ...
  • Page 70 CORDLESS ANGLE GRINDER 20V NOTE: Remove battery pack from charger stand which use your thumb or fingers, press the battery’s release button in and pull the battery pack off at the same time. Battery capacity indicator There are battery capacity indicators on the battery pack; you can check the capacity status of the battery if you squeeze the button .

  • Page 71: Cleaning And Maintenance

    CORDLESS ANGLE GRINDER 20V The wheel continues to rotate after the tool is switched off. OPERATON MODES Grinding Hold the handle (3) and auxiliary handle (6) firmly and switch on. Avoid blocking the ventilation slots with your hand, as this may cause the grinder to overheat.

  • Page 72: Technical Data

    Rated voltage (direct current) 20V d.c. Rotation speed 8500/min Max. disc diameter: Ø115mm Drive spindle thread: M 14 Battery type HPACK20V7-2 20V d.c. 2Ah / 4Ah Lithium-ion Charger type HPACK20V7-2 Input 220-240V~ 50-60Hz,65W Output 21V d.c., 2.5A Charging time 1-2 hours Pression acoustique LpA 79.1 dB(A) K= 3 dB(A)

  • Page 73: Battery Pack

    32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that, Product: Angle Grinder 20V Trade mark: Hyundai Model: HPACK20V7-2 Serial number: 20230508106-20230508405 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.

  • Page 74: Cordless Jigsaw

    20V CORDLESS JIG SAW HPACK20V7-2 CAUTION: READ THIS INSTRUCTION MANUAL BEFORE USE THIS MACHINE! 1. APPLICATION The power tool is intended for sawing wood, metal and plastics. Not suitable for professional use. 2. SAFETY INSTRUCTIONS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool.
  • Page 75 20V CORDLESS JIG SAW g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.

  • Page 76: Special Safety Instructions For Jig Saws

    20V CORDLESS JIG SAW Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. Use clamps or another practical way to secure and support the workpiece to a stable platform.
  • Page 77 20V CORDLESS JIG SAW mended ambient temperature range for tool and battery use is -5°C to 40°C. The recom  Charge only using the charger provided with the tool.  Store your batteries in a cool dry place (5°C-20°C/41°F-68°F). Never store batteries in discharged state. ...
  • Page 78 20V CORDLESS JIG SAW and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning  and user maintenance shall not be made by children without supervision.
  • Page 79 20V CORDLESS JIG SAW Fuse. Recycling. 3. YOUR PRODUCT 1. Quick-change blade clamping holder 2. Safety guard 3. Lock-off button 4. ON/OFF switch 5. Release button for battery pack 6. Battery pack 7. Dust extraction outlet 8. Soleplate 9. Pendulum regulation control 10.
  • Page 80 20V CORDLESS JIG SAW WARNING: Packaging materials are not toys! Children must not play with plastic bags! Danger of suffocation! 1x machine 1x manual 1x saw blade for wood If any parts are missing or damaged, please contact your dealer. 5.
  • Page 81 20V CORDLESS JIG SAW Those 3 LED might show the status of the capacity level of the battery: Inserting and removing the battery. WARNING: Before making any adjustments ensure the drill is switched off with the direction of rotation selector in the center position Remove the battery: press the battery release latch in and at the same time pull the battery pack off.
  • Page 82 Cutting depth wood 56 mm “Cutting sheet metal” mode: ah, M= 4.14m/s , K=1.5 m/s Cutting depth plastic 20 mm HPACK20V7-2 Battery pack 20V d.c. 2Ah / 4Ah Lithium-ion Charger HPACK20V7-2 Input 220-240V~ 50-60Hz, 65W Output; 21V d.c. 2.5A Information: −...
  • Page 83 32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that, Product: Cordless Jigsaw 20V Trade mark: Hyundai Model: HPACK20V7-2 Serial number: 20230508106-20230508405 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.

  • Page 84: Warranty

    WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 85: Product Failure

    PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 86: Warranty Exclusions

    WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
