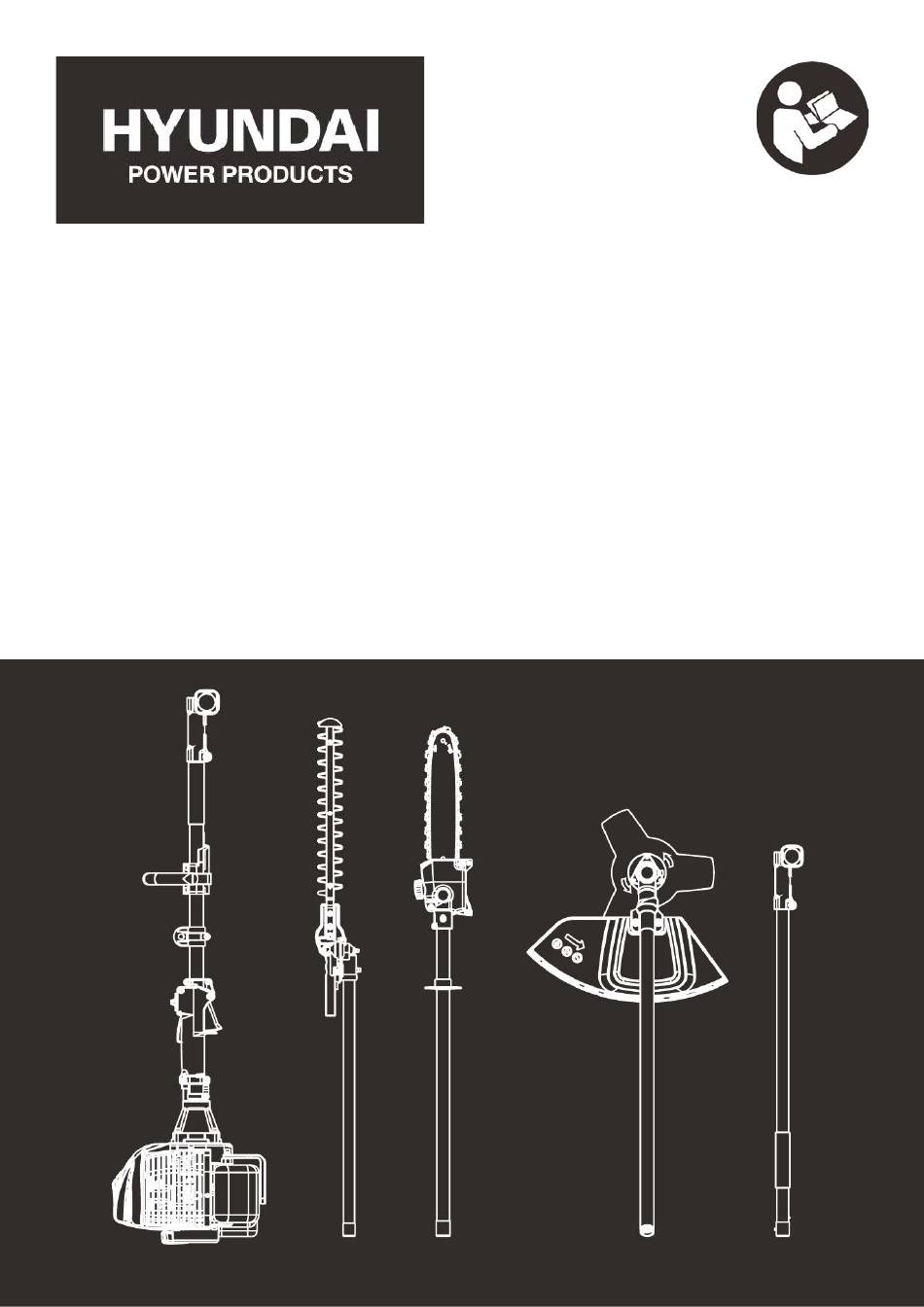

- Page 1 5-IN-1 PETROL MULTI-TOOL HYMT5200X Instruction Manual...
- Page 2 USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.
-
Page 3: Table Of Contents
Contents Safety Information.....4-21 Starting / Stopping....40-41 Understand Your Machine.......4 Maintenance......42-50 Personal Safety..........5 Maintenance Safety........42 Inspect Your Machine........6 Checking Your Machine.........42 Work Area............7 Cleaning............43 During Use............8-9 Storage............44-45 Pole Saw Safety..........10 Transportation..........45 Hedge trimmer Safety........10 Pole Saw Oil...........46 Grass Trimmer Safety........10 Pole Saw Chain Sharpening......46 Brush Cutter Safety........10 Air Filter............47 Engine Safety..........11... -
Page 4: Safety Information
Safety Information Safety No list of safety guidelines can be complete. Every environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious injury, damage to equipment, or poor work results. -
Page 5: Personal Safety
Safety Information Personal Safety • WARNING! Never allow children or people unfamiliar with these instructions to use the product. Local regulations can restrict the minimum age of the operator. • Keep children, pets, and other people not using the unit away from the work area (at least 15m). -
Page 6: Inspect Your Machine
Safety Information Inspect Your Machine • You must check the general condition of the machine before use. Keep guards in place and in working order. Make sure all nuts, bolts, etc., are securely tightened. • Never operate the machine when it is in need of repair or is in poor mechanical condition. Replace damaged, missing, or failed parts before using it. -
Page 7: Work Area
Safety Information Work Area • Make sure you thoroughly inspect the entire work area and remove all objects and anything that could be thrown by the machine or could damage the engine or machine (branches, stones, wire, toys, etc). Attempting to clear the work area whilst using the machine will reduce your concentration and creates a trip hazard. -
Page 8: During Use
Safety Information During Use • Always hold the unit with both hands when operating. Keep a firm grip on the handlebars • Do not operate the machine in confined areas where there may be a risk of crushing the operator between the machine and another object. •... - Page 9 Safety Information During Use (Continued) • Be aware of your environment and all possible hazards that you may be unable to hear while using the machine. • Keep an eye not only on the branches being cut, but also on fallen material, to avoid tripping. •...
-
Page 10: Pole Saw Safety
Safety Information Pole Saw Safety • To avoid injuries due to falling branches, do not stand under the branches that you want to cut off. Be aware of branches that may spring back and cause injuries. Work at an angle of approximately 60°. -
Page 11: Engine Safety
Safety Information Engine Safety • This machine is equipped with an internal combustion engine. Do not use on, or near, forest-covered or brush-covered land unless the exhaust system is equipped with a spark arrester meeting applicable local, state, or federal laws. •... -
Page 12: Carbon Monoxide
Safety Information Carbon Monoxide DANGER! Engine exhaust fumes contain Carbon Monoxide. This is a poisonous gas and can kill in minutes. NEVER use inside a building or in an area with poor ventilation. NEVER use inside a confined space, such as but not limited to a house, garage, vehicle, boat or tent. ONLY use outside and far away from windows, doors and vents. -
Page 13: Batteries
Safety Information Batteries (Where Present) Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE the electrolyte may be in a liquid or gel form. Should you come in to contact with electrolyte you should;... -
Page 14: Fuel Safety
Safety Information Fuel Safety CAUTION! ALL FUELS ARE HIGHLY FLAMMABLE AND PETROL VAPOUR IS EXPLOSIVE. TAKE EXTREME CARE WHEN HANDLING FUEL. KEEP FUEL OUT OF REACH OF CHILDREN. General Safety General Safety • Do not smoke each time fuel is handled. •... - Page 15 Safety Information Fueling / De-Fueling • ALWAYS fuel and de-fuel in a well ventilated area outside of buildings. Use a funnel to add fuel, only outdoors. Do not smoke during this and each time fuel is handled. • Add fuel before igniting the engine, never remove the fuel tank cap or add fuel whilst the engine is running or when it is hot.
-
Page 16: Electrical Safety
Safety Information Electrical Safety (Where Applicable) DANGER! ELECTRICITY CAN KILL - NEVER WORK ON LIVE/ENERGISED EQUIPMENT. • Prior to carrying out any maintenance work you MUST identify electrical isolation methods and isolate all electrical supplies. • Prior to use and with all electrical supplies isolated, you MUST check all electrical cables, plugs and connectors for the following;... -
Page 17: Vibrations
Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death. -
Page 18: Personal Safety
Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. If more than one item of PPE is worn at the same time, make sure they can be used together, e.g. -
Page 19: Intended Use

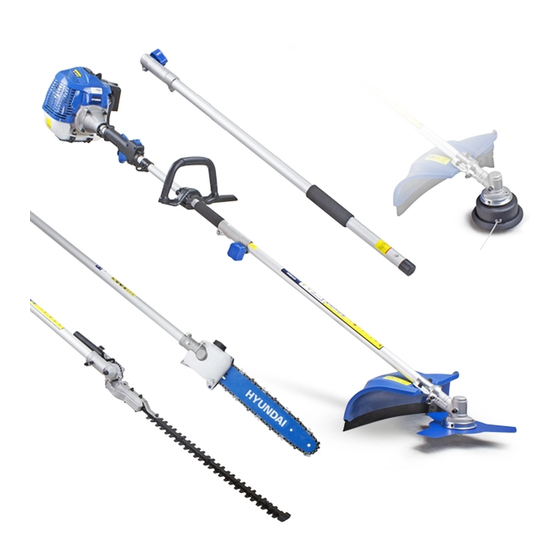

Safety Information Intended Use The HYMT5200X is a petrol powered multi-tool from HYUNDAI and is powered by a 52cc 4-stroke OHV petrol engine. The multi-tool is manufactured according to the latest safety requirements. Every precaution is only effective when it is followed exactly. -
Page 20: Symbols On The Machine
Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgment. - Page 21 Safety Information Symbols On The Machine (Continued) IMPORTANT IMPORTANT 1. Push the pin on the front boom A distance of 15m must be into the groove on the engine unit maintained between the machine boom as far as the stop. and third parties.
-
Page 22: Features
Features HYMT5200X Features *NOT TO SCALE www.hyundaipowerproducts.co.uk 01646 687 880 aftersales@hyundaipowerproducts.co.uk... - Page 23 Features HYMT5200X Features Engine Guard Brush Cutter 3 Tooth Blade Handle Grass Trimmer Head Pole Pruner Extension Pole Hedge Trimmer Tool Kit Hex Key 4mm Hex Key 5mm 8mm/10mm Spanner Spark Plug Box Spanner/Screwdriver Harness Hedge Trimmer Protector Pole Pruner Protector Mixing Bottle www.hyundaipowerproducts.co.uk...
-
Page 24: Unboxing
Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI Power Products immediately. You must keep the packaging material in case the machine needs to be returned or repaired. -
Page 25: Assembly
Assembly Assembly Safety CAUTION - This guide is meant to serve as a quick reference for operating your HYUNDAI machine. We always advise reading the manual in full before operation. CAUTION - For OUTDOOR use ONLY. Petrol machines produce carbon monoxide – poisonous, colourless and odourless gas that can cause serious injury or death. -
Page 26: Engine Unit Handle
Assembly Unboxing & Assembly Video: Go to youtube.com and type in Hyundai HYMT5200X assembly. YOU MUST read and understand the instruction manual first. Step 1 : Engine Unit Handle You will need 5mm hex key. Remove four bolts from handle. -
Page 27: Harness
Assembly Step 2 : Harness Attach harness using quick release mechanism. See image 1. The black clamp can be loosened with 4mm hex key and adjusted back and forth to get the required balance of the machine. The white buckle goes to the front of your body. See image 2. Always use the harness when working with the machine. -
Page 28: Grass Trimmer Attachment
Assembly Grass Trimmer Attachment You will need: Grass trimmer shaft, plastic guard, filament line head, box spanner and hex key. Attach Guard to Strimmer boom with two hex bolts. To fit the grass trimmer head, insert hex key into hole on the side of head of the boom. This will lock the head and stop it turning when removing/tightening central bolt. -
Page 29: Cutting Blade Attachment
Assembly Cutting Blade Attachment Insert hex key into head locking hole. Unscrew strimmer head by turning clockwise. First, place the cutting blade on the head with the writing facing down, towards the head. Make sure it sits centrally and securely on the head. Extreme vibration will occur if it is not mounted correctly. -
Page 30: Pole Saw Attachment
Assembly Pole Saw Attachment Using 10mm spanner, remove nut from the cover (anticlockwise). Wearing thick gloves, fit the cutting chain over the drive sprocket, as shown. Fit the bar and feed the inner teeth of the chain into the slot which runs around the bar. Make sure the adjustment peg sits in the hole on the bar as indicated. - Page 31 Assembly Image 3 Image 4 Image 5 Image 6 Image 7 Image 8 aftersales@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk 01646 687 880...
-
Page 32: Preparation
Preparation Before Each Use YOU MUST read and understand the full safety instruction manual before starting the machine. CAUTION - For OUTDOOR use ONLY. Petrol machines produce carbon monoxide – poisonous, colourless and odourless gas that can cause serious injury or death. Petrol is highly flammable, always handle with extreme care and in a well ventilated area. -
Page 33: Fuel And Oil
Preparation Fuel And Oil This is a 2-stroke stroke engine and will need 2 stroke oil mixed with the unleaded petrol. The mix is 40 parts petrol to 1 part oil. (40:1). i.e. 1 litre of petrol requires 25ml of (semi-synthetic) 2 stroke oil. -
Page 34: Operation
Operation Connecting Attachments To Motor Unit Loosen off the blue hand screw. Slide in attachment, it will only go in one way, so do not force it. Slide it in to the red line as shown. Firmly tighten blue hand screw. Connecting Extension Boom The extension boom is attached between the motor unit and the tool being used to increase the height you can reach. -
Page 35: Using Grass Trimmer
Operation Using Grass Trimmer To extend strimmer line from head, with the head spinning, simply bump the head down onto the ground and the line will automatically be fed out from the spool inside the head. Do not press strimmer head hard onto the ground when strimming. This will prematurely wear out the head. -
Page 36: Using The Pruning Saw
Operation Using The Pruning Saw CAUTION: Use extreme care whilst using this attachment, especially around children and pets. CAUTION: Be aware of overhead power/telephone wires Always check the tension of the cutting chain before use. This tool is only for pruning trees. Do not cut wood lying on the ground. Hold the saw firmly in two hands and make sure you have secure footing. -
Page 37: Using The Cutting Blade
Operation Using The Cutting Blade CAUTION: Use extreme care when using this tool. Always have a firm grip with two hands when using this attachment. Keep children and pets 15m away when using. The blade can fling stones and debris with great force. Always use face, leg and ear protection. The blade can violently kick back if it comes into contact with hard objects. -
Page 38: Re-Filling Trimmer Line
Operation Re-Filling Trimmer Line Rotate the blue centre piece to align the arrow mark with the holes. Check that the two holes are aligned. Image 1 Image 2 Pass the nylon rope through the two holes until you have 2m each side. Use 4m of 2.4mm nylon trimmer line. -
Page 39: Extending Trimmer Line
Operation Turn the blue centre piece clockwise until there is 20cm of line remaining. Image 5 Extending Trimmer Line To extend strimmer line from head, with the head spinning, simply bump the head down onto the ground and the line will automatically be fed out from the spool inside the head. Do not press strimmer head hard onto the ground when strimming. -
Page 40: Starting / Stopping
Starting / Stopping NOTE - This machine is shipped without fuel and oil and MUST be filled before use. Failure to do so may cause damage to the engine that will not be covered by warranty. Cold Start Pump the primer bulb under the carburetor 6 times. Slide the on/off switch back to (I). - Page 41 Starting / Stopping Image 1 Image 2 Image 3 Image 4 Image 5 www.hyundaipowerproducts.co.uk 01646 687 880 aftersales@hyundaipowerproducts.co.uk...
-
Page 42: Maintenance
Maintenance Maintenance Safety IMPORTANT - Routine and accurate maintenance is essential for maintaining original machine safety and performance levels. WARNING - Before cleaning or doing maintenance work, you need to stop the engine, disconnect the spark plug cable and read the relevant instructions. You need to wear proper clothing and protective gloves whenever your hands are at risk. -
Page 43: Cleaning
Maintenance Cleaning CAUTION - DO NOT use a hose pipe or pressure washer to clean the engine. Water can damage the engine or contaminate the fuel system. NOTE Engine must be switched off and spark plug lead disconnected. General Cleaning •... -
Page 44: Storage
Maintenance Storage Where To Store Store in a cool, dry place away from sources of ignition and varying changes in temperature. DO NOT stack other items on top of the machine when in storage. The protectors must be fitted for transport and storage Store the machine in a safe place, out of the reach of children or anyone who is not familiar with operation. -
Page 45: Transportation
Maintenance Preparation To Re-Use Remove the spark plug. Pull the starter pull cord quickly in order to remove any excess oil from the combustion chamber. Clean the spark plug and observe the correct electrode gap on the spark plug. Fill the fuel tank. Transportation Whenever the machine is to be handled, lifted, transported or tilted, you must: Wear sturdy work gloves. -
Page 46: Pole Saw Oil
Maintenance Pole Saw Oil You can adjust the amount of oil that is applied to the chain by turning this screw. It has 3 positions. The middle is the factory set position. Push and click anticlockwise for more oil. Push and click clockwise for less oil. Check the oiling system is working by holding and running the saw blade close to a surface. -
Page 47: Air Filter
Maintenance Air Filter CAUTION - A dirty air filter will restrict the air flow to the carburettor, which will reduce engine efficiency. When using the machine in very dusty areas you must clean or replace the air filter more often. Never operate the machine without the air filter being fitted it can cause damage to the engine which is not covered by warranty. -
Page 48: Spark Plug
Maintenance Spark Plug For good performance, the spark plug must be properly gapped and free of deposits. You MUST allow the engine to cool down before carrying out any maintenance. Always use the correct spark plug. Pull off the spark plug connector. Remove the spark plug using the enclosed spark plug spanner. -
Page 49: Lubricating The Chain
Maintenance Lubricating The Chain Remove the oil filler cap. Fill oil tank with organic chain oil. The chain lubrication can be increased or decreased using the oil adjusting screw. Press and then turn the oil adjusting screw clockwise to decrease the chain lubrication. Press and then turn the oil adjusting screw anticlockwise to increase the chain lubrication. -
Page 50: Maintenance Schedules
Maintenance The figures given here are based on normal operating conditions. In the event of more difficult conditions, such as strong dust generation and longer daily operating hours, the given intervals are to be reduced correspondingly. Pole Pruner Maintenance Schedule Appliance Before Weekly... -
Page 51: Troubleshooting
Troubleshooting Engine Unit Troubleshooting Problem Possible Cause Possible Solution The engine does not start. Incorrect start-up process. Follow the instructions regarding starting. The engine starts but does not 1. Incorrect adjustment of the 1. Set the choke lever to run at full power. choke lever. -
Page 52: Technical Data
Technical Data Engine Specifications Engine Type 2-Stroke Engine, Air-Cooled Engine Output (Max.) 1.45kW / 2.0hp Engine Size 51.7cc Engine Idle Speed 3000rpm Engine Speed (Max.) With 3-Section Cutting Blade : 9200rpm With Grass Trimmer : 8700rpm With Chainsaw : 9200rpm With Hedge Trimmer : 9200rpm Max. - Page 53 Technical Data Brush Cutter Specifications Metal Blade Cutting Diameter 255mm Grass Trimmer Specifications Nylon Line Cutting Circle 430mm Nylon Line Length Nylon Line Diameter 2.4mm Noise Information Hedge Trimmer Pole Pruner Brush Cutter Grass Trimmer Sound Pressure 99.47dB(A) 99.5 93.24 94.74 Level LpA Uncertainty KWA 2.5dB...
-
Page 54: Recycling And Disposal
Recycling And Disposal Recycling And Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 55: Declaration Of Conformity
51.7cc 99dB(A) 112dB(A) 1.45kW Product Details: Brand: Hyundai Model: HYMT5200X Description: Petrol Multi-Tool Name and address of technical documentation holder and EU distributor: Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. Signed by: Roland Llewellin, Managing Director Date: 16/12/2020 www.hyundaipowerproducts.co.uk... -
Page 56: Useful Information
Go to www.hyundaisupport.co.uk or search ‘Hyundai Power Products’ in YouTube. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. -
Page 57: Our Product Range
Our Product Range Generators Mini Dumpers Leisure Inverter, Petrol, Diesel And Built-In 4-Wheel Drive Mini Dumpers And Tracked Motorhome Generators Dumpers Pressure Washers Yard Sweeper Petrol, Diesel And Electric Pressure Washers Self Propelled Yard Sweeper Power Brush Water Pumps Scarifiers Submersible, Clean And Dirty Water And Petrol Lawn Scarifier And Aerator Professional Chemical Water Pumps... -
Page 58: Product Information
Product Information Information As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information. The model number and serial number can be found on the grey specification sticker on your machine. -
Page 59: Contact Us
Need Help? Talk To Our Experts Contact Us Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687880, open Monday-Friday 8.30am-5pm. Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Live chat is open Monday-Friday from 8.30am-5pm. Post Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. - Page 60 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
