Inkbird INK-IFT03 GR Instruction Manual page 4

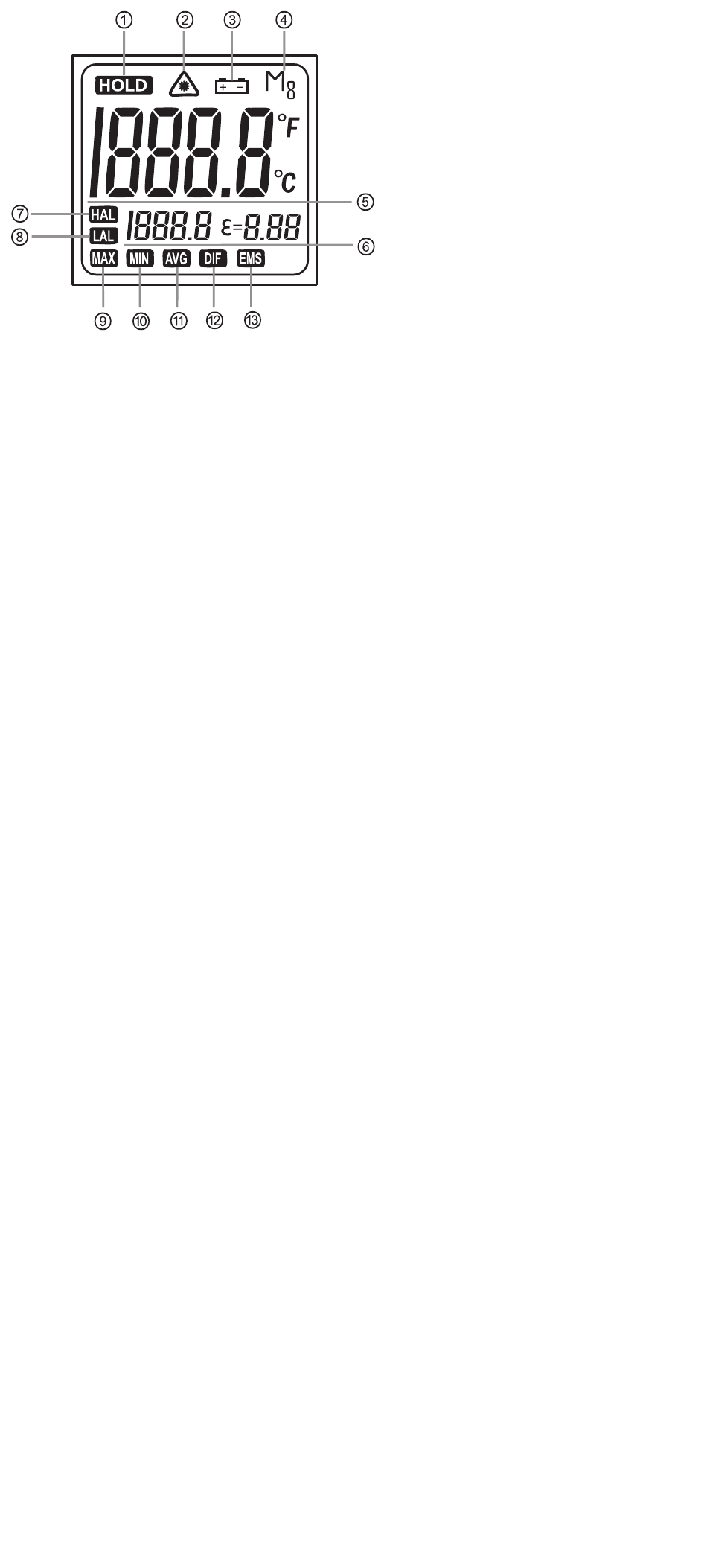

Diagram 3
1. Data Hold: To keep current reading.
2. Laser Sign: Test with laser.
3. Low battery indication: To remind users to change batteries.
4. Data recall: press the function key to display the first record, then
press the function key again for 0.5 seconds each to display the
second record and the third record.
5. Current temperature reading.
6. Mode setting: Press the mode button for 0.5 seconds to turn into
different modes and display the related information.
7. High temp alarm: Turn on the alarm when the temperature reading
is higher than the set temperature.
8. Low temp alarm: Turn on the alarm when the temperature reading
is lower than the set temperature.
9. Max measure: Press or hold the measure button, the thermometer
will display the maximum temperature reading.
10. Min measure: Press or hold the measure button, the thermometer
will display the minimum temperature reading.
11. Average measure: Press or hold the measure button, the
thermometer will display the average temperature reading.
12. Difference measure: Displays the difference between the
maximum and the minimum reading.
13. Emissivity: Adjustable from 0.1 to 1.0 to suitable for testing of
different articles.
Button function
● Backlight/Laser button: Press the backlight/laser button to switch
between backlight and laser, and press the button and hold for a while
to switch between ℃ and ℉.
● Up/Down button: Set and adjust the value.
● Mode button: Press the Mode button shortly to switch among
different modes. If press the mode button for a while, then it turns into
the mode of temperature records, and then press it shortly again and
again, then it will show temperature records of the last 9 tests one by
one.
①. Data hold
②. Laser sign
③. Low battery indication
④. Data recall
⑤. Current temperature reading
⑥. Setting display
⑦. High temp alarm
⑧. Low temp alarm
⑨. MAX measure
⑩. MIN measure
⑪. Average measure
⑫. Difference measure
⑬. Emissivity
- 3 -
