Inkbird IBT-26S User Manual

Bluetooth &wi-fi smart bbq thermometer
Hide thumbs

Advertisement

Table of Contents

尺寸：80mmX145mm
类型：骑马订
材质：50G书纸

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IBT-26S and is the answer not in the manual?

Questions and answers

Related Manuals for Inkbird IBT-26S

Summary of Contents for Inkbird IBT-26S

  • Page 1 尺寸：80mmX145mm 类型：骑马订 材质：50G书纸...
  • Page 2 Bluetooth &Wi-Fi Smart BBQ Thermometer IBT-26S...

  • Page 4: Table Of Contents

    CONTENTS Overview Features & Specifications Product Introduction Wireless Connection Battery Precautions Bluetooth/Wi-Fi Specs Product Accessories FAQs FCC Requirement Product Warranty...

  • Page 5: Overview

    02 Features & Specifications Model Number: IBT-26S Product Dimensions: 88.80 X 87.20 X 23.00mm Product Net Weight: 139g Screen Size: 68.00 X 50.00mm（approx. 3.3 inches）...
  • Page 6 trigger mode. Alarm Interval: Settable in repeat trigger mode Probe Connector: Jack 2.5mm mono plug 11mm。 Number of Probe Channels: 6. Probe short time measurement temperature range: -20 ℃~+250℃。 Probe Continuous Monitoring temperature range: -30 ℃~+300℃。 Probe Temperature resolution: 0.1℉ Probe Temperature accuracy: ±0.5℃（maximum）form +25℃...

  • Page 7: Product Introduction

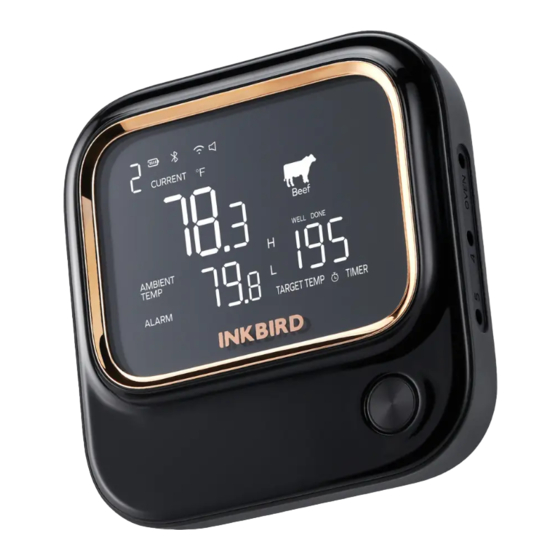

    03 Product Introduction USB Type-C Port Battery Bluetooth State Wi-Fi State State Alarm Mute Probe /ON state Number Temperature Unit Current Temperature High and Low Temperature Ambient/ Alarm Oven Timer Temperature Probe Ports...
  • Page 8 Display Icon Reference Alarm Mute. Alarm sound ON. Wi-Fi is disabled. Wi-Fi is connected to the router always on and can access the network. Wi-Fi is connected to the router but cannot access the network. Wi-Fi is paired with the network but disappeared cannot connect to the wireless router.
  • Page 9 20%~39% of Battery level. flash 0%~19% of Battery level. Current temperature over Preset flash temperature alarm warning. Current temperature below Preset flash temperature alarm warning. The probe temperature exceeds 300℃ or 572℉. The probe temperature is below -30℃ or -22℉. flash Timer alarming Power Button Instructions...

  • Page 10: Wireless Connection

    04 Wireless Connection 1.Download the INKBIRD App Search the INKBIRD App from Google Play or App Store to get it for free, or you can scan the QR code below to download it directly. Scan QR code to download...
  • Page 11 (c) Registering an account is necessary before using the INKBIRD app for the first time. 2.Bluetooth Pairing Step1: Open the app and click “+” in the upper right corner to select IBT-26S to start the connection.
  • Page 13 Step2: Turn on the device and click "NEXT STEP" to continue.
  • Page 14 Step3: Make sure your smartphone has Bluetooth enabled, then click "NEXT STEP" to continue.
  • Page 15 Step4: The app will automatically search for the device. Once the device is found, press the power button on the device to complete the pairing.
  • Page 17 Step5: Select "Later" to complete Bluetooth pairing or click "Continue" to connect to Wi-Fi.
  • Page 18 3.Wi-Fi Pairing If you choose to continue connecting to Wi-Fi in step 5, enter the Wi-Fi network name and password, then click "Confirm" to complete Wi-Fi pairing. Note that the 2.4GHz version should choose a 2.4Ghz Wi-Fi network, and the 5GHz version should choose a 5Ghz Wi-Fi network.

  • Page 21: Battery Precautions

    Notes: (a) Location services on the smartphone must be turned on during connection. In addition, the app needs permission to access location information. Otherwise, you will not be able to establish a Bluetooth/Wi-Fi connection. (b) Keep the smartphone, device, and router as close together as possible to set up a connection.
  • Page 22 Bluetooth connection without Wi-Fi enabled allows for longer battery life. Disabling Wi-Fi and no Bluetooth pairing can achieve a super long battery life. 3.Use a standard USB Type-C 2.0/3.0 data cable to charge the device. 4.Use a 5V 1A USB power adaptor to charge the device. In an environment of 23℃, the battery can be charged up to 45% within 60 minutes, and up to 80% within 120 minutes.

  • Page 23: Bluetooth/Wi-Fi Specs

    longer be recharged. Conversely, storing the device with its battery fully charged may reduce battery capacity and shorten battery life. If you plan to store the device for more than six months, you should charge it to 50% battery capacity every six months and store it at a temperature between 0 ℃...
  • Page 24 Number of 1-14@2.4GHz (CH1-11 for US/CA, Channels CH1-13 for EU/CN） 802.11b: 1, 2, 5.5, 11Mbps 802.11a/g: 6, 9, 12, 18, 24, 36, 48, Data Rate 54Mbps WIFI 802.11n: HT20 MCS0-7, HT40 MCS0-7 WEP/WPA/WPA2/WPA2 PSK Security （AES） WPA3 +17dbm@802.11b/g/n Maximum +15dbm@802.11a output power Maximum gain 2dBi@2.4G，2.6dBi@5G...
  • Page 25 reset. After a Wi-Fi reset, if the device shuts down in the middle, once it restarts, it will also automatically restore the Wi-Fi network that was paired before the reset. If you want to remove the network configuration information, you can remove it through the App, so the device will not restore and reconnect to the Wi-Fi network that was paired before the reset.

  • Page 26: Product Accessories

    purchase time, phone model, phone OS version, app version, device virtual ID, and screenshots/videos (if you have any). The more information we have, the faster we can help you solve your problem. 07 Product Accessories USB 2.0 Type-A to USB 2.0 Type-C charge cable，Type-C plug Connect to the device.

  • Page 27: Faqs

    3x Probe Clamps To fix temperature probes for more accurate detection. 08 FAQs Q: Why it is failed to connect to Wi-Fi network? (e) When the Wi-Fi icon on the device screen is flashing, it means the device is in network configuation. You can press and hold the power button for 3 seconds to enter the network configuration and then press and hold it for 3 seconds again to switch between AP mode (slow...

  • Page 28: Fcc Requirement

    (k) Try connecting in another network configuration mode. (l) Restart the device and router, then try again. Q: Can I access the current temperature from anywhere in the world thanks to Wi-Fi as long as I have an internet connection? A: Yes, as long as your phone has access to the Internet, that's fine.
  • Page 29 authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 30: Product Warranty

    10 Product Warranty This item carries a 1-year warranty against defects in either components or workmanship. During this period, products that prove to be defective will, at the discretion of INKBIRD, be either repaired or replaced without charge.
  • Page 32 INKBIRD TECH.C.L. support@inkbird.com Factory address: 6th Floor, Building 713, Pengji Liantang Industrial Area, NO.2 Pengxing Road, Luohu District, Shenzhen, China Office address: Room 1803, Guowei Building, NO.68 Guowei Road, Xianhu Community, Liantang, Luohu District, Shenzhen, China V1.0...
