- Page 1 Wireless Pool thermometer with IBS-M2 Wi-Fi Gateway Product Introduction Features & Specifications App Instruction Action Button Instructions Safeguards Product Warranty FCC Requirement...
-
Page 2: Product Introduction

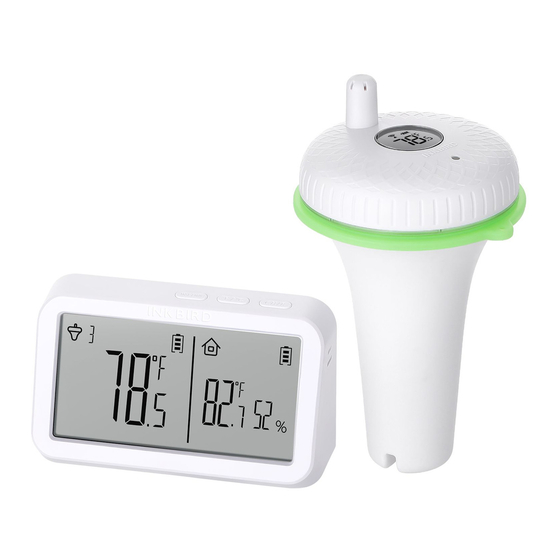

1. Product Introduction IBS-M2 Wi-Fi Gateway (receiver) Gateway Wi-Fi Signal Action Buttons Temperature-and-humidity type icon of the gateway sub-device Current channel number of the gateway sub-device Battery level of the gateway sub-device Current humidity detected by Current temperature the gateway sub-device detected by the gateway Current humidity Current temperature detected... -
Page 3: Features And Specifications
Warranty: 1 year 3. App Connection 3.1 Download the INKBIRD App Search the INKBIRD App from Google Play or App Store to get it for free, or you can scan the left QR code to download it directly. - 2 -... - Page 4 3.2.1 Open the app, select your Country/Region, and a verification code will be sent to you. 3.2.2 Enter the verification code to confirm your identity, and the registration is complete. 3.2.3 Registering an account is necessary before using the INKBIRD app for the first time. 3.3 Connect to your phone 3.3.1 Open the app and click the “+”...
- Page 5 3.3.3 Select the Wi-Fi to connect to, enter the password, 3.3.4 Press and hold the button on the device and click Next Step to continue. until the Wi-Fi indicator flashes to enter the pairing state, then click Next Step to continue. Please press and hold the button for 5 to 8 seconds to let the indicator...
- Page 6 3.3.5 Your phone will automatically 3.3.6 The device is 3.3.7 Pairing is successful. enter the device scan page. Once automatically pairing the network. the device is found, click Next Step to continue. Note: If pairing fails, unplug the power supply and restart the device, then repeat steps 3.3.1~3.3.6 to try again.
- Page 7 3.4 Main Interface of INKBIRD App go to add sub-devices current temperature current humidity go to settings go to see the historical graph 3.5 Add Sub-Devices a. First, plug in the gateway host and power it on properly, then follow step 3.2 to start the app connection. Skip this step if the connection is already complete.
- Page 8 b. Second, install the batteries for the sub-device and power it on properly. Be careful to place it as close as possible to the gateway host. c. Add sub-devices through the app, as shown in the following figures. Choose the relevant device to be added, the sub-device will automatically establish a connection, add the device, and display the channel number of the sub-device.
- Page 9 4. Action Button Instructions IBS-M2 Wi-Fi Gateway ℉/℃ Button WIFI Button CH/R Button CH/R Button: Press it to switch between the channels (CH1, CH2, CH3…CH9), the screen will display the measured temperature of the chosen channel (CH1, CH2, CH3…CH9). If CH0 is selected, the measured temperature of each channel will be displayed alternately for 3 seconds.
-
Page 10: Product Warranty
6. Product Warranty This item carries a 1-year warranty against defects in either components or workmanship. During this period, products that prove to be defective will, at the discretion of INKBIRD, be either repaired or replaced without charge. - 9 -... -
Page 11: Fcc Requirement
7. FCC Requirement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 12 Factory address: 6th Floor, Building 713, Pengji Liantang Industrial Area, NO.2 Pengxing Road, Luohu Disctrict, Shenzhen, China Office address: Room 1803, Guowei Building, NO.68 Guowei Road, Xianhu Community, Liantang, Luohu District, Shenzhen, China MADE IN CHINA DESIGNED BY INKBIRD V1.0...
