Summary of Contents for Inkbird ITH-21-B

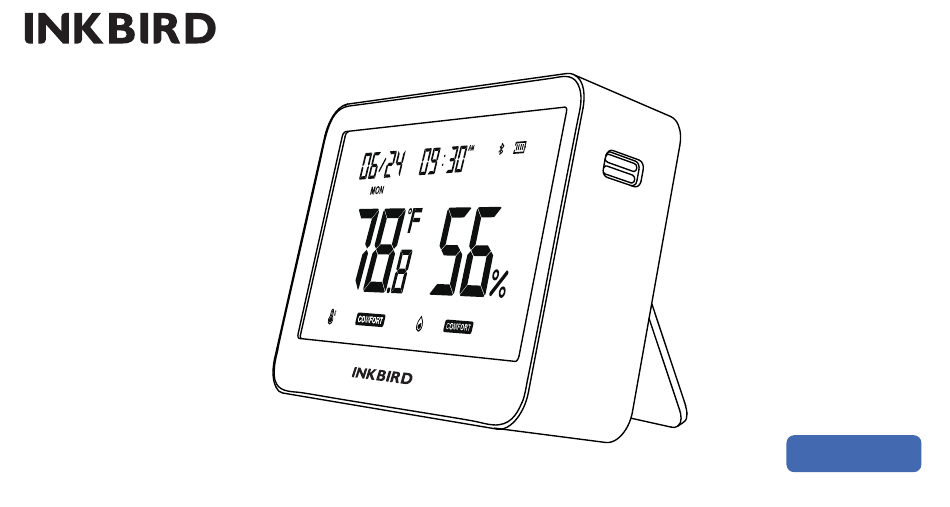

- Page 1 ITH-21-B Smart Thermo-Hygrometer...
- Page 2 A New Generation Of Bluetooth Smart Tabletop Temperature And Humidity Detector...
- Page 3 Warm tips To quickly jump to a specific chapter page, click on the relevant text on the contents page. You can also use the thumbnail or document outline in the top left corner to quickly find a specific page.
-
Page 4: Table Of Contents
CONTENTS ............... Overview APP Function ... Connect the Gateway ....Preparation Before Using ..........Precautions Product Introduction ........Screen Display Switch Troubleshooting ........Product Specifications FCC Requirement .......... Button Description Customer Service... - Page 5 Please keep this manual properly for reference. You can also scan the QR code below to visit our official website for product usage videos. For any usage issues, please feel free to contact us at support@inkbird.com.
-
Page 6: Overview
Overview Congratulations on taking this important step towards a healthier life. INKBIRD launches a new intelligent temperature and humidity detector equipped with an industrial grade sensor by Sensirion, Switzerland, ensuring high temperature accuracy of ±2℃ and high humidity accuracy of ±1.8%. The unique design integrates date and clock functions, with a large 3.8"... -
Page 7: Preparation Before Using
Preparation Before Using Please open the back cover to remove the insulation strip and make sure the batteries are inserted correctly, as indicated by the "+" and "-" signs. Then replace the back cover. -
Page 8: Product Introduction
Product Introduction Date/Time/Week--Automatically calibrated through INKBIRD APP connection or manually adjust according to the Button Description. - Page 9 Bluetooth and battery level--The Bluetooth icon is lit when the device has established a Bluetooth connection with your phone; the battery icon indicates battery life and the icon flashes when the battery is low. ℃ Real-time ambient temperature--Long press the button to switch between ℃...
-
Page 10: Screen Display Switch
Screen Display Switch ℃ ℉ ℃ Click the button once ℉ to change the display Focusing on temperature Focusing on time (Time Mode) and humidity (TH Mode) If you are mainly interested in temperature and humidity information, select TH mode; if you are mainly interested in time, select Time mode. -
Page 11: Product Specifications
Product Specifications Product Name:Smart Thermo-Hygrometer Brand Model:INKBIRD ITH-21-B Power:2*AA/3.0V（batteries included） Battery life:15 months Bluetooth-enabled distance:80m/262ft（No obstacles） Temperature measurement range -20°C—60°C (-4°F—140°F) Temperature measurement accuracy ±0.2℃(±0.36°F) Temperature display accuracy 0.1℃(0.1°F) Humidity measurement range 0-99% Humidity measurement accuracy ±2%（non-condensing） Humidity display accuracy... -
Page 12: Button Description
Button Description Click once to display the Max and Min values; Press and hold for 5 seconds to clear the Max and Min records. ℃ Click once to change the screen display; ℉ Press and hold for 5 seconds to switch between ℃ and ℉. ℃... - Page 14 We will abide by relevant laws and regulations and take reasonable security measures to protect your information security 1.Registration Step1: Registering an account is necessary before using the INKBIRD app for the first time. Step2: Open the app, select your Country/Region, and a verification code will be sent to you.
-
Page 15: App Function
Step3: Enter the verification code to confirm your identity, and the registration is complete. 2.How to Connect Open the INKBIRD app and Click “+” on the top right corner to add a device. Then, follow the app instructions to complete the Bluetooth connection. Make sure the device is placed as close as possible to the smartphone while connecting. -
Page 16: Connect The Gateway
Connect the Gateway For more intelligent remote monitoring and alarm notifications, the unit can be connected to a WiFi gateway (IBS-M2S BLE). When you get a IBS-M2S BLE WiFi gateway, you can select 'Connect the gateway' from the 'Set' page of the app and follow the instructions to complete the gateway connection. -
Page 17: Precautions
Precautions a.Please do not disassemble the product if you are not a professional. b.Be sure that the sensor is not covered with dust as dust may lead to inaccurate measure- ments. c.Do not use alcohol to clean the sensor. d.This product is not waterproof. Do not immerse its air outlet into water. e.This product measures temperature from -20℃... -
Page 18: Troubleshooting
Troubleshooting Solution Fault Phenomenon Possible Reason Screen shows low battery The batteries are exhausted. Replace the batteries. icon or no display The batteries were Reinstall the batteries. No screen display installed upside down. The temperature is higher Screen shows” ” Place the product in an environment than 60℃/140℉. - Page 19 WiFi gateway. (sold separately) can you view the temperature or humidity data remotely. Open the INKBIRD app, enter the Incorrect temperature or humidity It may be affected by setting page, and calibrate the readings from the thermo-hygrometer the harsh environment.
-
Page 20: Fcc Requirement
FCC Requirement Changes or modifications not expressly approved by the party responsible for compliance could void the user′s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 21 no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –...
- Page 22 IC Warning This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1)This device may not cause interference. (2)This device must accept any interference, including interference that may cause undesired operation of the device. L'émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d'Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : ...
- Page 23 The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 andcompliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 etla conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information canadienne surl'exposition et la conformité de rf. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ouémetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 20 centimètres ...
-
Page 24: Customer Service
This item carries a 1-year warranty against defects in either components or workmanship. During this period, products that prove to be defective will, at the discretion of INKBIRD, be either repaired or replaced without charge. For any problems in use, please feel free to... - Page 25 Shenzhen Inkbird Technology Co.,Ltd. support@inkbird.com Consignor: Shenzhen Inkbird Technology Co., Ltd. Office Address: Room 1803, Guowei Building, No.68 Guowei Road, Xianhu Community, Liantang, Luohu District, Shenzhen, China Manufacturer: Shenzhen Inkbird Technology Co., Ltd. Factory Address: 6th Floor, Building 713, Pengji Liantang Industrial Area, No.2 Pengxing Road, Luohu District,...
