- Page 3 INT-12-BW TWO-MODE WIRELESS BBQ THERMOMETER USER MANUAL...
- Page 4 Please keep this manual properly for reference. You can also scan the QR code below to visit our official website for product usage videos. For any usage issues, please feel free to contact us at support@inkbird.com.
- Page 5 Wenn Sie eine Bedienungsanleitung in deutscher Sprache benötigen, scannen Sie bitte den QR-Code und besuchen Sie unsere Website, um sie zu erhalten und ein Video über die Verwendung des Produkts zu sehen. Se avete bisogno di un manuale di istruzioni in italiano, scansionate il codice QR e visitate il nostro sito web per ottenerlo e vedere un video su come utilizzare il prodotto.
-
Page 6: Table Of Contents
Battery Details & Maintenance APP Installation & Connection Cleaning and Maintenance Important Notes/Warnings Overview Troubleshooting Guide Technical Specifications FCC Requirement Product Appearance/Screen/Indicator IC Warning Light Introduction Customer Service Key Definitions... -
Page 7: Overview
Overview The INKBIRD INT-12-BW is a BBQ thermometer suitable for more cooking scenes and with more intelligence, making it an ideal helpmate in grilling and cooking. With a deep understanding of the cooking process and a relentless pursuit of practicality and convenience, INKBIRD has carefully designed the long-and-short probe combination for you to meet your various cooking needs. -
Page 8: Technical Specifications
Technical Specifications Brand INKBIRD INT-12-BW Model Version BLE5.4 Bluetooth 328ft/100m（the greatest distance in an open Connection area without obstacles） Band 5G WiFi compatible with 2.4G Usage Modes WiFi Device should be within 328 feet/100 meters of Connection WiFi router; no distance limit for smartphones. - Page 9 Probe Waterproof Grade IP67(Dishwasher safe) Black probe: 2 sensors to measure food and ambient temperature Sensor Number White probe: 1 sensor to measure food temperature Probe measurement accuracy ±1℃/±1.8℉ Food temperature : -10-100℃/14-212℉（For safe use, the Temperature probe will alert you when the temperature reaches 96℃/205℉.） measurement range Ambient temperature: 0-300℃/32-572℉...
- Page 10 Base′s battery voltage 3.7V Base′s battery life 55 Hours Screen Type Full view high definition LCD with backlight Screen Size 115.4*20mm Resolution Ratio 1℃/℉ The base can store data for the last 2 hours and upload it Data Storage automatically when connected. Weight 290g Dimension...
-
Page 11: Product Appearance/Screen/Indicator Light Introduction

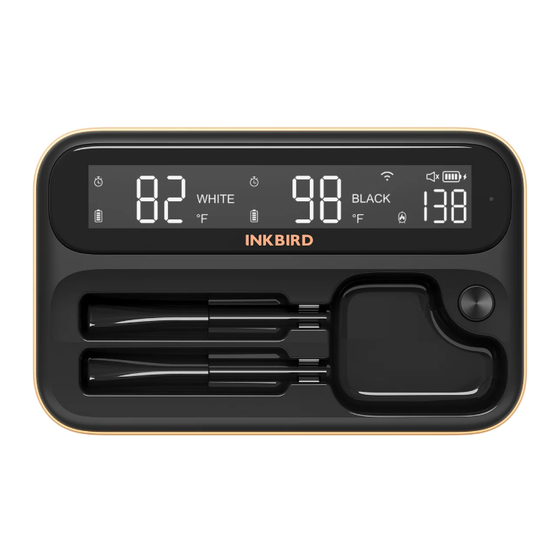

Product Appearance/Screen/Indicator Light Introduction Product Appearance Charging Contact Point Full View HD LCD with Backlight Function Button LED Indicator Light Probe Charging Position Electrode Plate for Charging... - Page 12 Type-C Charging Port Power Button Anti-slip Pads Built-in Magnet Stand...
- Page 13 Charging Contact Point Ambient Temperature Sensor Zirconia Ceramic Handle Safe Cooking Line Food-Grade Stainless Steel Food Temperature Sensor Note: Only the long black probe can detect ambient temperatures, the white probe cannot.
- Page 14 Screen Information Reference Device Status Display Current battery level. The device is charging. The device battery is low. flashing The device′s Bluetooth pairing is in progress. flashing...
- Page 15 The device′s Bluetooth has The device is disconnected been connected. from Bluetooth. disappears remains on The device′s WiFi is pairing The device’s WiFi has been with the network. connected. flashing remain on The WiFi connection fails. The device is disconnected. remain on disappears The device′s buzzer is turned off.
- Page 16 Probe connection/pairing is Probe’ s current battery life unsuccessful. goes out The probe is charging. The probe’s battery is exhausted. flashing Probe display area of corres- White/ Device temperature unit ℃/℉ ponding color Black Probe Digital Bit Display The current temperature is below The current temperature is outside the temperature range of the probe.
- Page 17 Indicator Light Definition Charging the base Green light flashes at the breathing rate and remains lit if fully charged. Battery Level Indicator When the battery level falls below 30%, the yellow light stays on. When the battery level falls below 10%, the red light stays When the battery is about to be exhausted, the device will flash a red light and shut down.
-
Page 18: Key Definitions
Key Definitions Press and hold for 3 seconds to turn the device on or off. Power Button Press and hold for 30 seconds to reset the device. Press and hold for 3 seconds to switch the buzzer on or off. (Adjust the sound volume from the app) Function Button During cooking, press once to view your preset temperature. -
Page 19: Battery Details & Maintenance
Note: In the event that the high temperature alarm has been triggered, it is imperative that you cease heating immediately and relocate the unit to a cool, shaded area. Should the unit detect that the temperature has once again exceeded the tolerable range within one minute, it will sound the alarm again. - Page 20 Battery Charging Steps & Methods Probe: Please place the probe that requires charging in the designated charging position on the base.
- Page 21 Base 1)Please use the provided charging cable to charge this device. It will take approximately 3 hours to fully charge. 2)While charging, the indicator light on the base will flash green at the breathing rate and remain lit once fully charged. 3)If you need to charge this device with a different cable, please ensure that the cable has a type-C interface and provides 5V 1.5A.
- Page 22 3.Please note that the probes are waterproof, but the base is not. Do not use or store this product in harsh weather or high-humidity environments. Do not clean the base with running water or place it in a dishwasher or water sink, as this may cause water seepage and damage to the device.
-
Page 23: App Installation & Connection
APP Installation & Connection 6.1 Search the INKBIRD App from Google Play or App Store to get it for free, or you can scan the QR code to download it directly. - Page 24 6.2 Registration Step1: Registering an account is necessary before using the INKBIRD app for the first time. Step2: Open the app, select your Country/Region, and a verification code will be sent to you. Step3: Enter the verification code to confirm your identity, and the registration is complete.
-
Page 25: Cleaning And Maintenance
Make sure that both Bluetooth and WiFi functions are enabled on your smartphone and turn on the device. Open the INKBIRD APP. Allow the app to obtain location information, click “+” in the upper right corner to find this product, then follow the app instructions to complete the connection. -
Page 26: Important Notes/Warnings
positions on the base to avoid device damage caused by rusty electrode plates or water seepage. 3.Please note that the base is not waterproof. Do not rinse or submerge it with water. If necessary, use a slightly damp cloth to wipe the base and prevent water from seeping and causing damage to the product. - Page 27 2)This product is not suitable for use in microwave ovens or pressure cookers. When using the probe, make sure that it is inserted in the center of the food and that the depth of insertion is beyond the safe cooking line engraved on the probe and that any bones are avoided. 3)The base can serve as a Bluetooth signal repeater.
-
Page 28: Troubleshooting Guide
not put the base inside the oven or grill. 7)After cooking, do not immediately touch the hot probe. Wait for it to cool down. If necessary, use a heat-resistant tool to avoid burns. 8)This product is designed specifically for grilling and cooking. It is not recommended for any other purposes. - Page 29 Issues Possible Solutions 2.Make sure that the phone positioning function is enabled and that the APP is allowed to obtain your location information. Without permission, the app cannot establish a connection between the device and your . smartphone. What if my 3.Keep the device away from metal or obstacles.
- Page 30 Issues Possible Solutions 2.Make sure that you have entered the correct WiFi account name and password and that the WiFi network is stable. 3.During the connection process, please keep the device, router and smartphone as close to each other as possible. 4.Do not place the device on metal surfaces or near metal objects.
- Page 31 Issues Possible Solutions NOTE: If your problem persists, please contact our customer service. 1.You can calibrate the temperature through the app. 2.Please check if the current temperature just exceeded the specified temperature range or has exceeded before, which may cause damage to Why is my the probe.
- Page 32 Issues Possible Solutions 1.The probes can only be charged at the base. To recharge, ensure that they are fully placed on the charging position and successfully connected to the contact points. Why can't the 2.Please check if there are any oil stains covering the contact points and probe be charged? probe tops, as this can cause charging failure.
-
Page 33: Fcc Requirement
FCC Requirement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 34: Ic Warning
more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –... -
Page 35: Customer Service
This item carries a 1-year warranty against defects in either components or workmanship. During this period, products that prove to be defective will, at the discretion of INKBIRD, be either repaired or replaced without charge. For any problems in use, please feel free to contact us at... - Page 36 Shenzhen Inkbird Technology Co.,Ltd. support@inkbird.com Consignor: Shenzhen Inkbird Technology Co., Ltd. Office Address: Room 1803, Guowei Building, No.68 Guowei Road, Xianhu Community, Liantang, Luohu District, Shenzhen, China Manufacturer: Shenzhen Inkbird Technology Co., Ltd. Factory Address: 6th Floor, Building 713, Pengji Liantang Industrial Area, No.2 Pengxing Road, Luohu District, Shenzhen, China V1.0...
