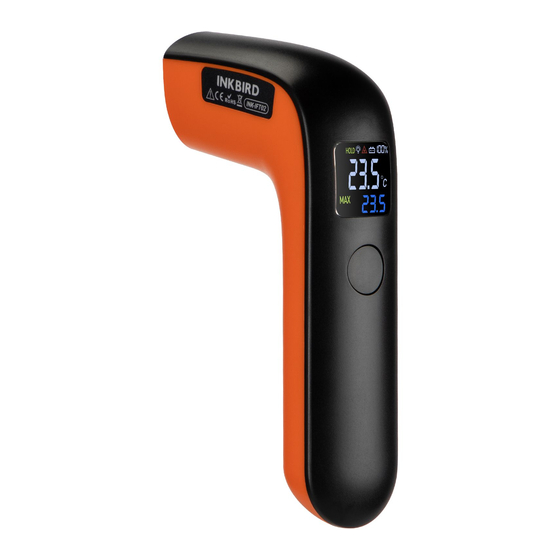

INKBIRD INK-IFT02 INFRARED THERMOMETER
SPECIFICATION
Product Name
Temperature Range
Measurement Accuracy
Object Distance Ratio
Response Time
Emissivity
Temperature Unit
Auto Off
Working Temperature
Storing Temperature
Charging Port
Power Supply
Product Warranty
OVERVIEW
INKBIRD INK-IFT02 adopts non-contact infrared sensing technology and is capable of
detecting the temperatures of objects securely, accurately, rapidly, and reliably. You can use
it in temperature measurement of dangerous and inaccessible objects in high-heat
environments such as mechanical engineering, chemical engineering, light engineering,
metallurgy, ceramics, food processing, electricity, and heat treatment.
WORKING PRINCIPLE
Any object of which temperature is higher than absolute zero can radiate infrared energy,
which will transmit everywhere all-around at the speed of light. Thus, the optical lens of the
infrared thermometer will collect all infrared energy and gather it on the sensor to produce a
low-voltage output that is proportionate to the object's temperature. The voltage output will
be processed and transformed to display as a temperature value.
OPERATION INSTRUCTION
The infrared thermometer is constructed in several parts. Please refer to the introduction
below when using it (as shown in figure 1-1).
Starting Up
Press the POWER/SCAN button to turn on the device. The thermometer will start
self-checking and automatically measure and display the temperature value.
Liquid Crystal Display
After turning on the device, you can see all functional icons on the screen (as shown in
USER MANUAL
Infrared Thermometer
-50℃～550℃ (-58℉～1022℉)
≥100℃, ±2% / ≤100℃, ±2℃
12:1
500Ms (0.5s)
0.95
℃/℉(factory default)
15 seconds
0℃～45℃ (-4℉～113℉)
-10℃～45℃ (32℉～113℉)
USB Type-C
250 mAh Lithium Battery (built-in)
1 Year
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Inkbird INK-IFT02
Summary of Contents for Inkbird INK-IFT02
- Page 1 Product Warranty 1 Year OVERVIEW INKBIRD INK-IFT02 adopts non-contact infrared sensing technology and is capable of detecting the temperatures of objects securely, accurately, rapidly, and reliably. You can use it in temperature measurement of dangerous and inaccessible objects in high-heat environments such as mechanical engineering, chemical engineering, light engineering, metallurgy, ceramics, food processing, electricity, and heat treatment.
- Page 2 figure 1-2). Measurement Point the laser to your object, and then press the POWER/SCAN button to do a single measurement. You can press and hold the button to do a continuous measurement. (Note: In doing a single measurement, you should press and hold the POWER/SCAN button for at least 0.5s.) Shutdown ...
- Page 3 ⑧ Max Value Status EMISSIVITY The surface of most organic materials, and the surface of objects coated with oil paint and oxidized, has an emissivity of 0.95. Thus, we have preset the emissivity of the infrared thermometer as 0.95. Shiny and polished metal will cause inaccurate measurement. Therefore, you should cover its surface with black tape or black oil paint, then measure the surface temperature of the tape or oil paint when both temperatures of the tape and cover material are in common.
- Page 4 PRODUCT WARRANTY This item carries a 1-year warranty against defects in either components or workmanship. During this period, products that prove to be defective will, at the discretion of INKBIRD, be either repaired or replaced without charge. CUSTOMER SERVICE...
