Summary of Contents for JVA ST136

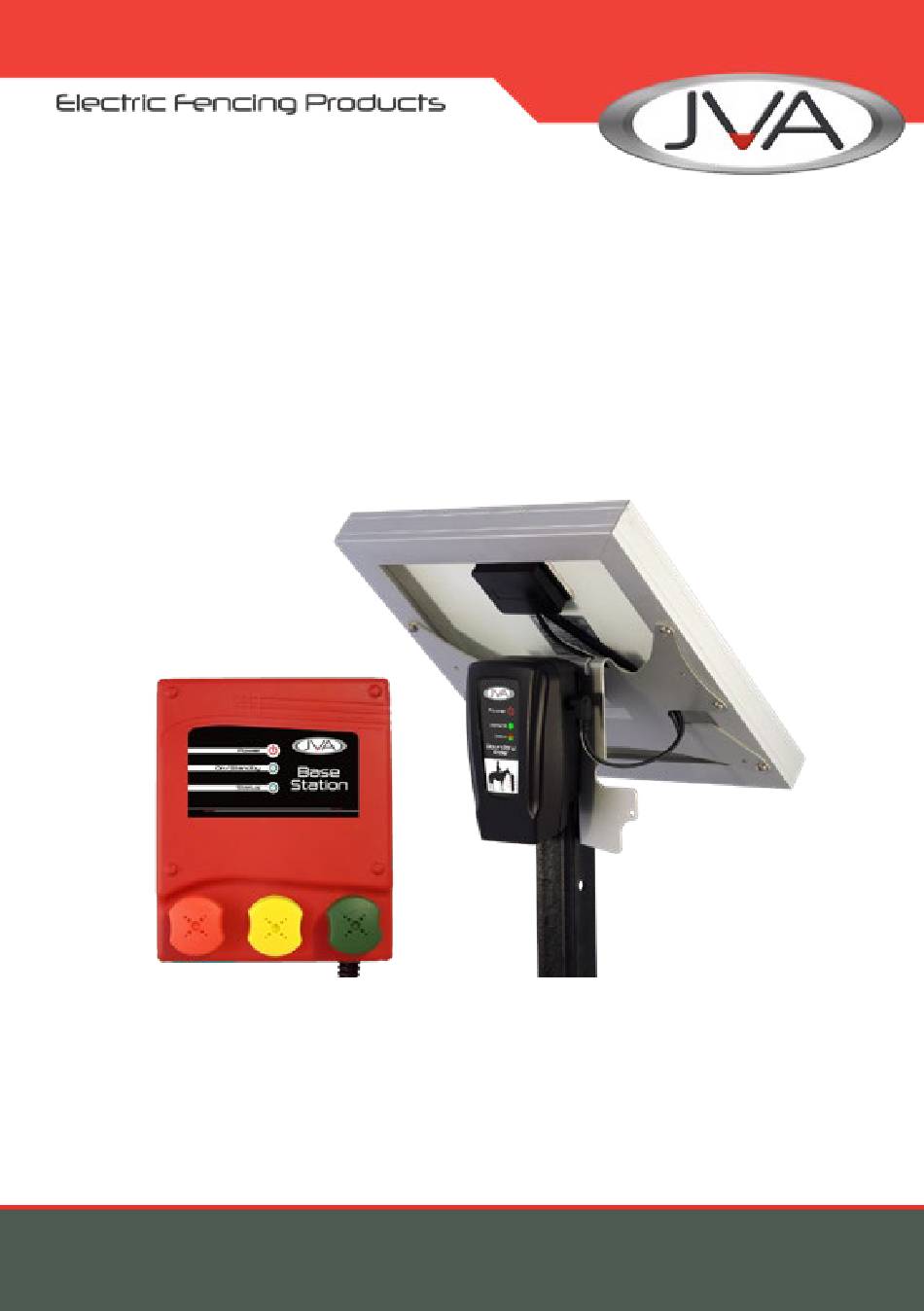

- Page 1 FLC USER MANUAL The JVA Logo is a registered trademark of JVA Technologies © JVA Technologies...
-
Page 2: Table Of Contents
Features ....4 JVA Fence Monitoring System . . . . . . . 6 Monitoring Layouts . - Page 3 Fault Finding ....23 Limitations ....23 JVA FLCM Manual Page 3...
-
Page 4: Introduction
INTRODUCTION The JVA Boundary Rider and Base Station is an electric fence monitoring system that allows you to view your fence’s operation from anywhere in the world. It provides peace of mind that your property’s electric fence is working and it can also send an alert/notification to a mobile phone if a fault occurs. - Page 5 • Compatible with all medium to high powered JVA energizers • Auto power on / down • Simple LED display JVA FLCM Manual Page 5...
-
Page 6: Jva Fence Monitoring System
JVA IPEC App or Cloud Router App as long as the mobile phone has internet access. JVA recommends using an existing Wi-Fi Access point and Internet Plan if available; or a JVA Wi-Fi Anywhere® system that converts Wi-Fi to Cellular (4G) - signal strength permitting. - Page 7 Fence Line Communication Internet Communication JVA FLCM Manual Page 7...
-
Page 8: Monitoring Layouts
Note: the Boundary Rider has been designed to operate at maximum distance of up to 6km away from the Base Station. This limitation can be ‘overcome’ by installing the Base Station in the middle/centre of the Boundary Riders. Page 8 © JVA Technologies www.jva-fence.com... - Page 9 End of fence Monitoring Sector Monitoring Centre of fence Monitoring JVA FLCM Manual Page 9...
-
Page 10: Parts Of The System
PARTS OF THE SYSTEM THE BASE STATION 1. Power Button 2. On/Standby LED 3. Status LED 4. Energizer Terminal 5. Fence Terminal 6. Mains Cord 7. Negative Terminal Page 10 © JVA Technologies www.jva-fence.com... -
Page 11: The Boundary Rider
THE BOUNDARY RIDER 1. Solar Panel 2. Solar Panel lead and plug 3. Solar Bracket 4. Power Button 5. LED display 6. Earth terminal and lead 7. Fence terminal and lead JVA FLCM Manual Page 11... -
Page 12: Front Display
*Note: If the On/Standby LED is off but the status LED is on, the Base Sta- tion is disarmed, meaning the fence is off. 4.3.2 Base Station Power Button Page 12 © JVA Technologies www.jva-fence.com... -
Page 13: Boundary Rider
Press and hold for 5 seconds to put the Boundary Rider to Sleep. On/Sleep indicated by the Monitor OK LED The Boundary Rider has two modes. On: Green LED on or flashing Sleep: No LED’s - will wake on button press, solar power or fence voltage JVA FLCM Manual Page 13... -
Page 14: Jva User Interface Options
Base Station will need to be connected to the Internet (Wi-Fi), and one of the Free JVA Electric Fence Apps download. The JVA IPEC (IP Energizer Controller App) system is the recommended interface for remote monitoring. This can be downloaded from either the Google Play Store, or App Store. - Page 15 This can be access from an Internet Browser, or from downloading the Cloud Router App from Google or Apple. This is ideal if you are already using a JVA Security Energizer and are comfortable using a slightly more complex interface.
-
Page 16: Installation
INSTALLATION CREATING A MONITORING SYSTEM A JVA monitoring system only requires three devices, the Base Station, Boundary Rider(s) and an electric fence energizer. 1. Mount the Energizer and Base Station in suitable locations (See ‘Mounting’) 2. Wire the Energizer and Base Station together, and then to the fence 3. -
Page 17: Boundary Rider
(non-live) grounded fence wire. * C. Wire the Base Station “Energizer” terminal (Left, Red terminal) to the energizer’s ‘Fence’ Terminal (Red terminal). *The Earth terminal of the Energizer should be creating a suitable earth connection (See energizer manual) JVA FLCM Manual Page 17... -
Page 18: Boundary Rider
Base Station, wait 5 seconds and press the button to send a signal again, wait another 5 seconds and press the button a third time. The Bound- ary Riders should now be paired to the Base Station. This should be con- firmed in the Virtual Keypad. Page 18 © JVA Technologies www.jva-fence.com... -
Page 19: Virtual Keypad Pairing
6.4.2 Virtual Keypad Pairing The JVA Virtual Keypad (VKP) is a browser based user interface used to view and manage the Base Station and Boundary Rider(s). To connect to the VKP ensure the Base Station is powered and you are within 25m of the unit. - Page 20 The Paired List updates every 5 seconds and if the unit does not appear, press the Boundary Rider button again. Press the Finish Pairing button when all Boundary Riders have been paired. Update the Name of each unit for better reference. Page 20 © JVA Technologies www.jva-fence.com...
-
Page 21: Connecting To The Internet
Red - 3 flash Connected to Wi-Fi Access Point Green Connected to JVA Server CHECK IT IS WORKING In the Virtual Keypad of the Base Station, click on the “Boundary Riders” button on the main page. The details of each Boundary Rider will be dis- played. -
Page 22: User Interface Setup
USER INTERFACE SETUP You will need to choose one of the available options for User Interfaces. Download the App and setup your Site. See www.jva-fence.com/agric/ipenergizer for information on setting up IPEC See www.jva-fence.com/CloudRouterGuide for information on setting up Cloud Router. -
Page 23: Operation
OPERATION Use the JVA IPEC or Cloud Router to check your fence on a regular basis. You will get to know what the normal running voltages are at the various points on your fence. If there is a fault on your fence, for example the voltage at a Boundary Rider falls below the set threshold, you should receive a notification. - Page 24 Tel : +61 (0)734 779 955 Email : sales@jva-fence.com.au www.jva-fence.com For more information scan below https://jva-fence.com/BR ST136 v5 The JVA Logo is a registered trademark of JVA Technologies © JVA Technologies...
