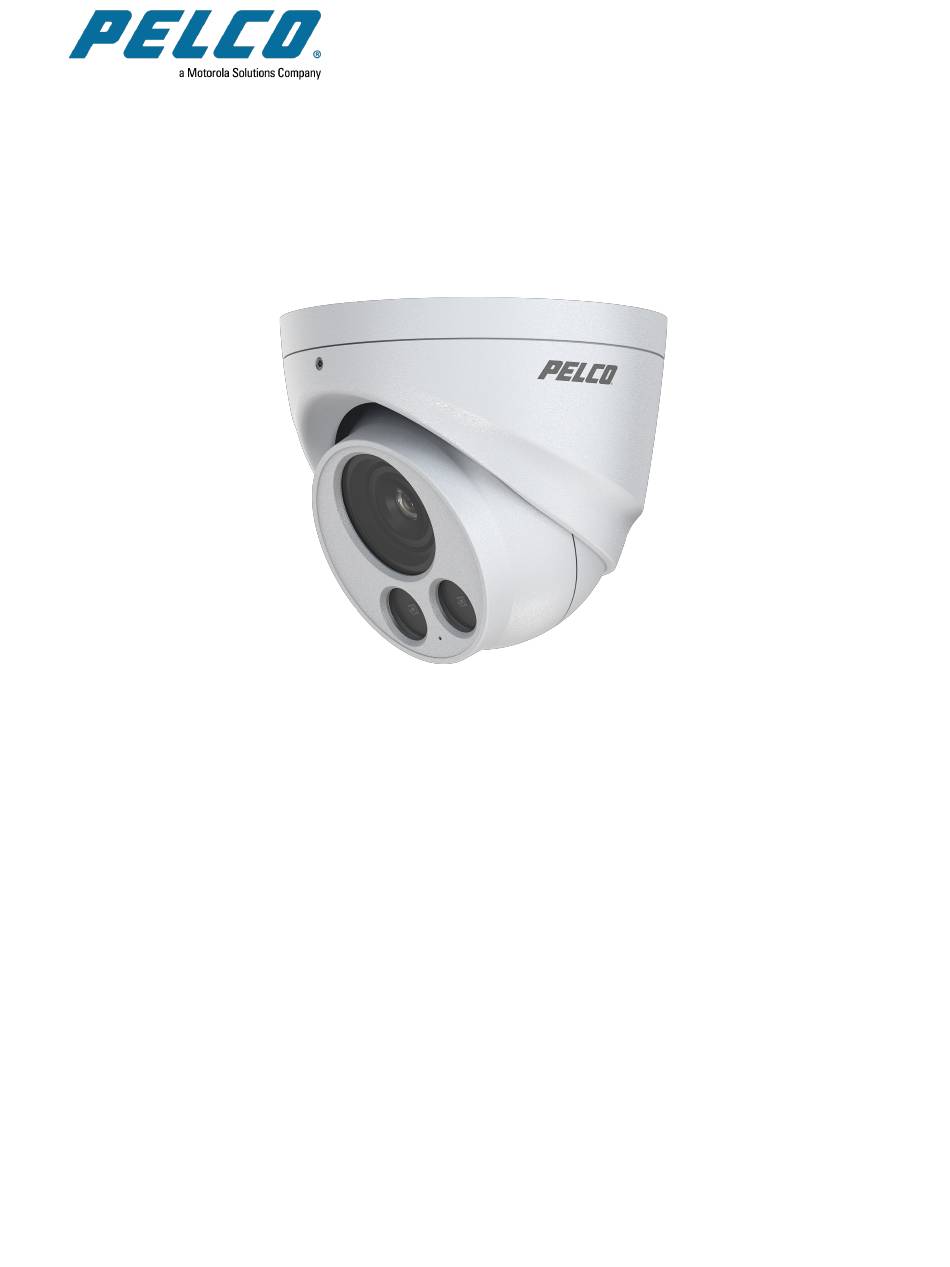

- Page 1 Sarix® Value Series IR Environmental Turret Cameras Installation Manual Document number: C6672M-A Publication date: 05/21...
-
Page 2: Table Of Contents
Sarix® Value Series IR Environmental Turret Cameras Installation Manual Table of Contents Overview Package Contents POE Requirements Physical Description Outer View Inner View Mounting Options Power Consumption Installing the Hardware Accessing the Camera Supplemental Resources Configuring the Password Adjusting Pan, Tilt, and Rotation Deploying the Camera on a Network Using a PoE-enabled Switch Using a Non-PoE Switch... -
Page 3: Overview
Sarix® Value Series IR Environmental Turret Cameras Installation Manual Overview Sarix Value ITV and IFV Series cameras are easy to install with a bubble less design saving time and money. The Sarix Value Series features excellent image quality with great low light performance, color fidelity and true wide dynamic range (WDR) for increased visibility in difficult lighting situations. -
Page 4: Physical Description
Sarix® Value Series IR Environmental Turret Cameras Installation Manual Physical Description Outer View Inner View Caution: Use Ethernet cable that is compliant with 3P/ETL standard such as CAT5E or CAT6. Non- standard cabling products such as cooper coated aluminum (CCA) are not supported. C6672M-A | 05/21... -
Page 5: Mounting Options
Sarix® Value Series IR Environmental Turret Cameras Installation Manual Mounting Options Mount the camera in a location that delivers the desired field of view. Power Consumption Consumption Power Input IR On IF Off C6672M-A | 05/21... -
Page 6: Installing The Hardware
Sarix® Value Series IR Environmental Turret Cameras Installation Manual Installing the Hardware 1. Write down the MAC address of the camera for later use. 2. Tilt, pan, and rotation limitations: 3. Remove the camera main body from the base plate by loosening the T10 screw with a T10 torx wrench. - Page 7 Sarix® Value Series IR Environmental Turret Cameras Installation Manual 4. Loosen the three (3) screws on the main body. 5. To use onboard storage, install a MicroSD card. C6672M-A | 05/21...
- Page 8 Sarix® Value Series IR Environmental Turret Cameras Installation Manual Models IFV222-1ERS, IFV523-1ERS Model ITV529-1ERS a. Open the SD card socket lid by sliding it backward and flipping open the lid. b. Insert a MicroSD card into the socket on the lid, with the gold contacts facing down, and then close the lid.
- Page 9 Sarix® Value Series IR Environmental Turret Cameras Installation Manual Note : This network camera is compliant with SD/SDHC/SDXC 16GB / 8GB / 32GB / 64GB / 128GB / 256GB and other preceding standard SD cards. c. Slide the lid forward. A clicking sound will indicate that the lid and the card is secured in place. 6.
- Page 10 Sarix® Value Series IR Environmental Turret Cameras Installation Manual a. Use the included alignment sticker to drill holes for mounting screws and a cabling hole. Note : If a cabling through hole is preferred, it must have a diameter larger than 25 b.
- Page 11 Sarix® Value Series IR Environmental Turret Cameras Installation Manual 11. Form a drip loop on the back-end cable to ensure that no water gets to the camera. Caution : If you do not form a drip loop, moisture can condense into water drops and run along the cable.
- Page 12 Sarix® Value Series IR Environmental Turret Cameras Installation Manual 13. Use the alignment stickers to match the outer shroud of the camera with the main body. ModelsIFV222-1ERS, IFV523-1ERS ModelITV529-1ERS 14. Install the camera to the base plate. To do so, match the groove on the outer shroud with the inner rim on the base plate.
- Page 13 Sarix® Value Series IR Environmental Turret Cameras Installation Manual 15. Tighten the T10 retention screw. C6672M-A | 05/21...
-
Page 14: Accessing The Camera
Sarix® Value Series IR Environmental Turret Cameras Installation Manual Accessing the Camera Note:For security purposes, it is required that you create a user password when you access the camera for the first time. In its out-of-the-box configuration, the camera has a user name of "root" and no password assigned. In this state the camera does not allow for video to stream or configurations to change. -
Page 15: Supplemental Resources
Sarix® Value Series IR Environmental Turret Cameras Installation Manual Supplemental Resources All Sarix Value Series supplemental resources (e.g. firmware, documentation, VxToolbox, and Device Utility) are available in one location: www.pelco.com/sarix-value. Configuring the Password The first time you log in to the camera, the firmware will prompt you for a password. Protecting your camera with a password can deter most cyber attacks. -
Page 16: Adjusting Pan, Tilt, And Rotation
Sarix® Value Series IR Environmental Turret Cameras Installation Manual Adjusting Pan, Tilt, and Rotation 1. Remove the protective sheet from the camera lens. 2. With a live view, pan, tilt, and/or rotate the camera to acquire an optimal field of view. Note : Pan the camera first. - Page 17 Sarix® Value Series IR Environmental Turret Cameras Installation Manual 3. Tighten the retention screw on the camera. C6672M-A | 05/21...
-
Page 18: Deploying The Camera On A Network
Sarix® Value Series IR Environmental Turret Cameras Installation Manual Deploying the Camera on a Network Using a PoE-enabled Switch The Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable. -
Page 19: Connecting To The Internet Via A Router
Sarix® Value Series IR Environmental Turret Cameras Installation Manual Connecting to the Internet Via a Router Before setting up the Network Camera over the Internet, make sure you have a router and connect it as described in this section. 1. Connect your Network Camera behind a router, as shown below, using the correct IP addresses, subnet masks, and routers addresses for your installation. -
Page 20: Troubleshooting
Sarix® Value Series IR Environmental Turret Cameras Installation Manual 7. Configure the router, virtual server, or firewall so that the router can forward any data coming into a preconfigured port number to a network camera on the private network, and allow data from the camera to be transmitted to the outside of the network over the same path. - Page 21 Sarix® Value Series IR Environmental Turret Cameras Installation Manual Pelco, Inc. 625 W. Alluvial Ave., Fresno, California 93711 United States (800) 289-9100 Tel (800) 289-9150 Fax +1 (559) 292-1981 International Tel +1 (559) 348-1120 International Fax www.pelco.com Pelco, the Pelco logo, and other trademarks associated with Pelco products referred to in this publication are trademarks of Pelco, Inc. or its affiliates.
