Setting The Safety Temperature; Operation; Working Screen At The Time Of Delivery; Explanation Of Symbols On The Working Screen - IKA ICC control Operating Instructions Manual

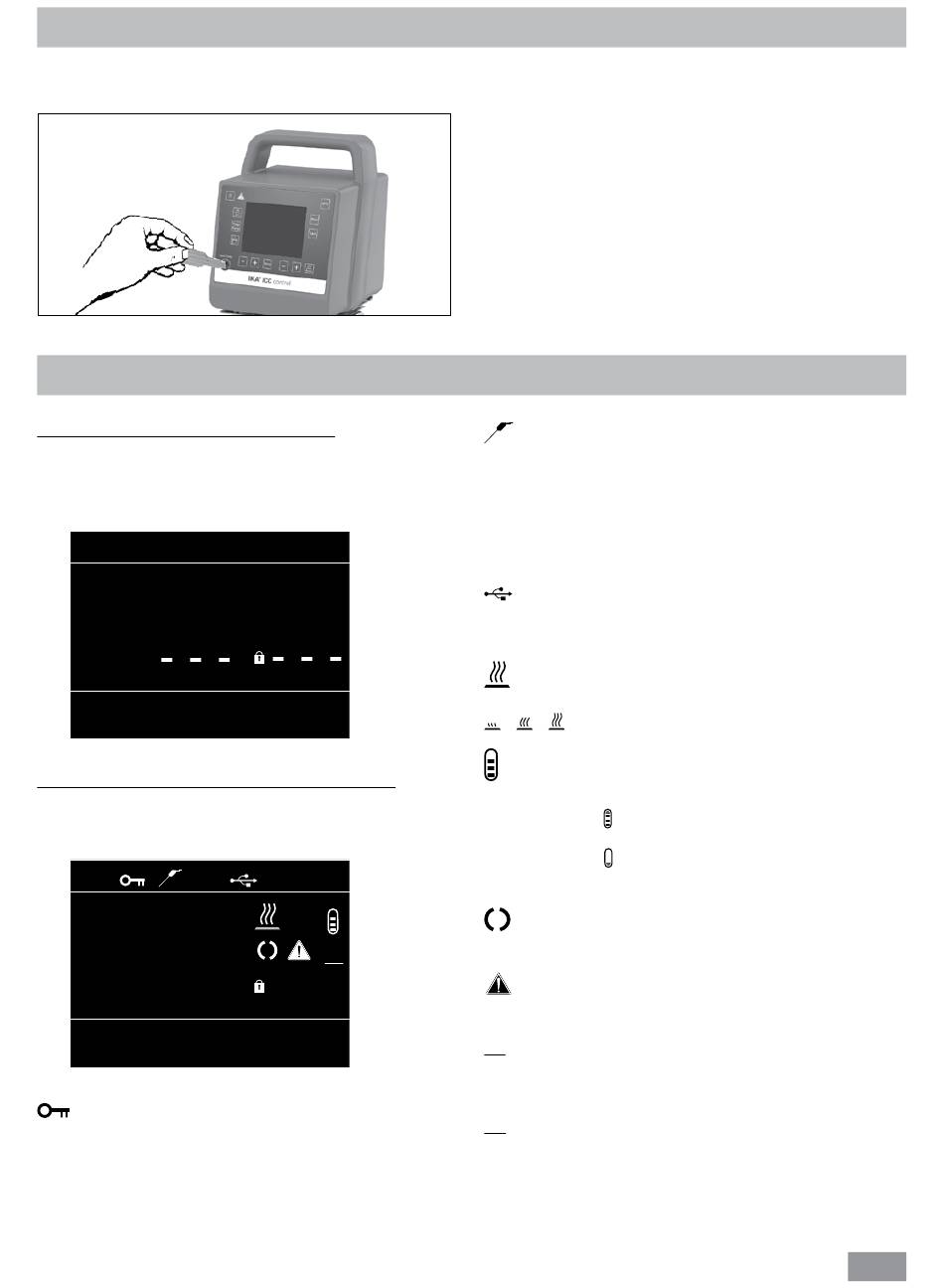

Adjust the safety temperature with screwdriver included
with the device�
Fig. 7

Working screen at the time of delivery:

The start and information screen (see section "Commission-
ing") appears for a few seconds after the device is switched
on� After this, the following working screen appears automati-
cally in the display�
A
0.00
int °C
ext °C
int 5.00
set °C
Fig. 8

Explanation of symbols on the working screen:

The symbols displayed change depending on the status and
settings of the device� The screen below shows the most
significant symbols on the working screen�
A
100.00
int °C
100.00
ext °C
int
100.00
set °C
Fig. 9
Lock:
This symbol means that the function of the keys for control-
ling the device are disabled�
The symbol no longer appears if the functions are enabled
once again by pressing the key button a second time�

Setting the safety temperature

Operation

Safe Temp °C
1000
Pump rpm
PC
160
Safe Temp °C
1000
Pump rpm
The safety temperature setting will appear on the display�
Factory setting: maximum value
Adjustment range: 0 – 160 °C
Warning: The safety temperature must always be set to
at least 25 ºC lower than the fire point of the fluid used� In
case of uncertainties regarding the fire point, we recommend
setting the safety temperature to a least 25 ºC lower than the
flash point of the fluid used�
Temperature Sensor:
This symbol appears when the external temperature sensor
is connected�
A Operating Mode:
This symbol indicates the operating mode currently selected
(A, B, C, D)�
USB:
This symbol means the device is communicating with a PC
via a USB cable�
Heating
This symbol indicates that the heating function is active�
 
indicate active heating process�
Fluid level
This symbol indicates fluid level�
The red symbol means the fluid is above the maximum
fluid level� Excess fluid should be drained out�
The red symbol means the fluid is below the minimum
fluid level� Please add fluid�
Pump:
This symbol indicates that the pump is activated�
Warning:
This symbol indicates that warning is active�
PC PC Control:
This symbol means that the device is connected to a com-
puter and is being controlled from the computer�
PR Program Control:
This symbol indicates that the device is controlled by a pro-
gram (see "PROGRAMS")�
