IKA ICC control Operating Instructions Manual page 9

A
L
M
N
F
B

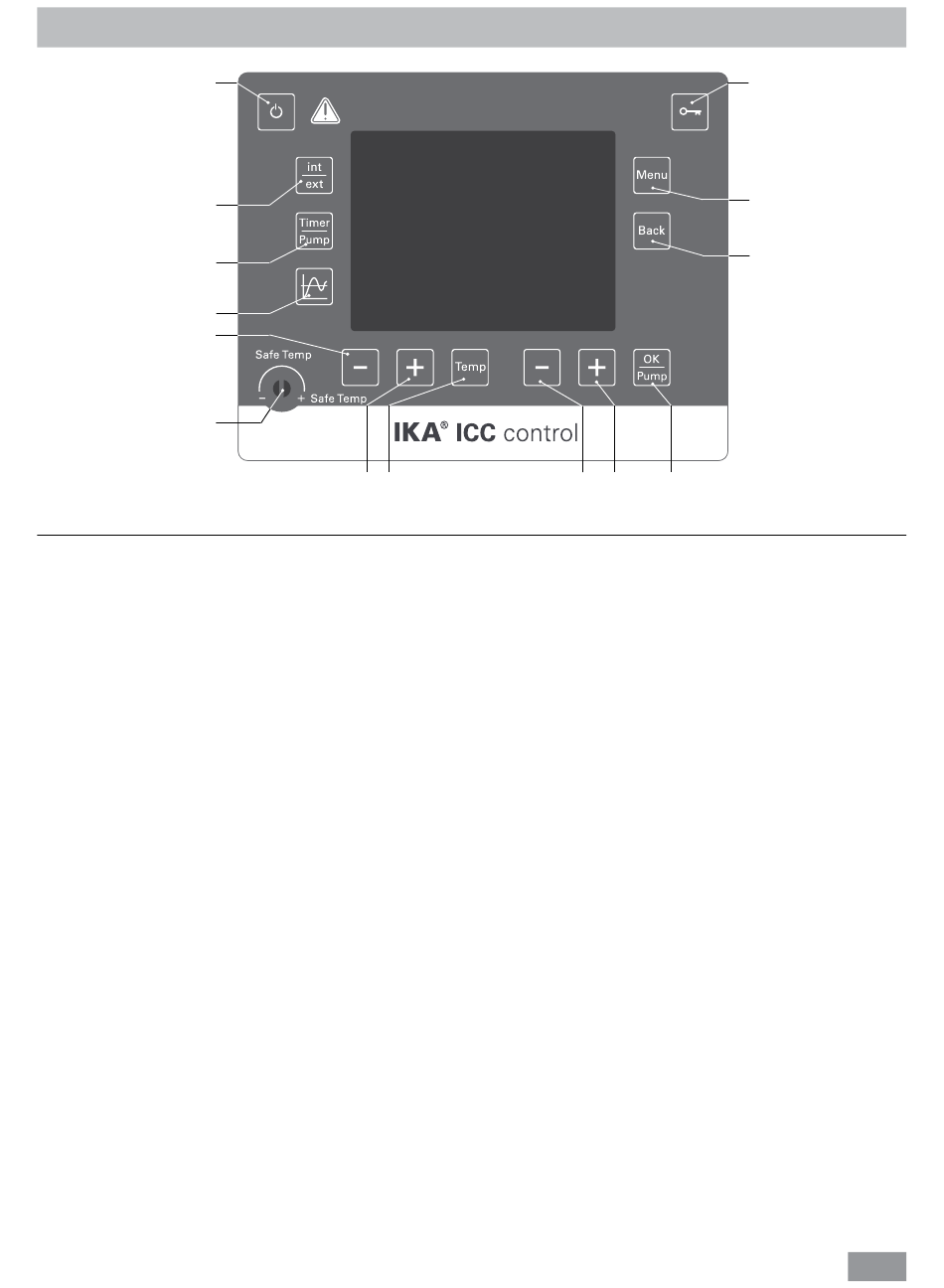

Fig. 3
Item Designation
A ON/OFF button:
B Adjustable safety circuit:
D "Temp" button:
E "Temp (+)" button:
F "Temp (-)" button:
G "OK/Pump" button:
H "Pump (+)" button:
I "Pump (-)" button:
J "Menu" button:
K "Back" button:
L "int/ext" button:
M "Timer/Pump" button:
N Graph button:
O Key button:
Operator panel and display
E D
Function
Switch on/off the circulator�
Adjust the safety temperature limit with delivered screwdriver�
Start/stop the heating function�
Increase the temperature setting value�
Decrease the temperature setting value�
Start/stop the pump function�
Select and open the menu options�
Confirm the menu settings�
Increase the pump speed setting value�
Navigation and changing the setting in the menu�
Decrease the pump speed setting value�
Navigation and changing the setting in the menu�
Press it once: menu option is display�
Press it a second time: back to the working screen�
Return to the previous menu level�
Switch between the internal and external temperature display and control�
Switch between the timer and pump display�
Display time/temperature graph
Lock/unlock keys�
O
J
K
I H G
9
