Setting The Safety Temperature; Operation; Working Screen At The Time Of Delivery; Explanation Of Symbols On The Working Screen - IKA ICC control Manual

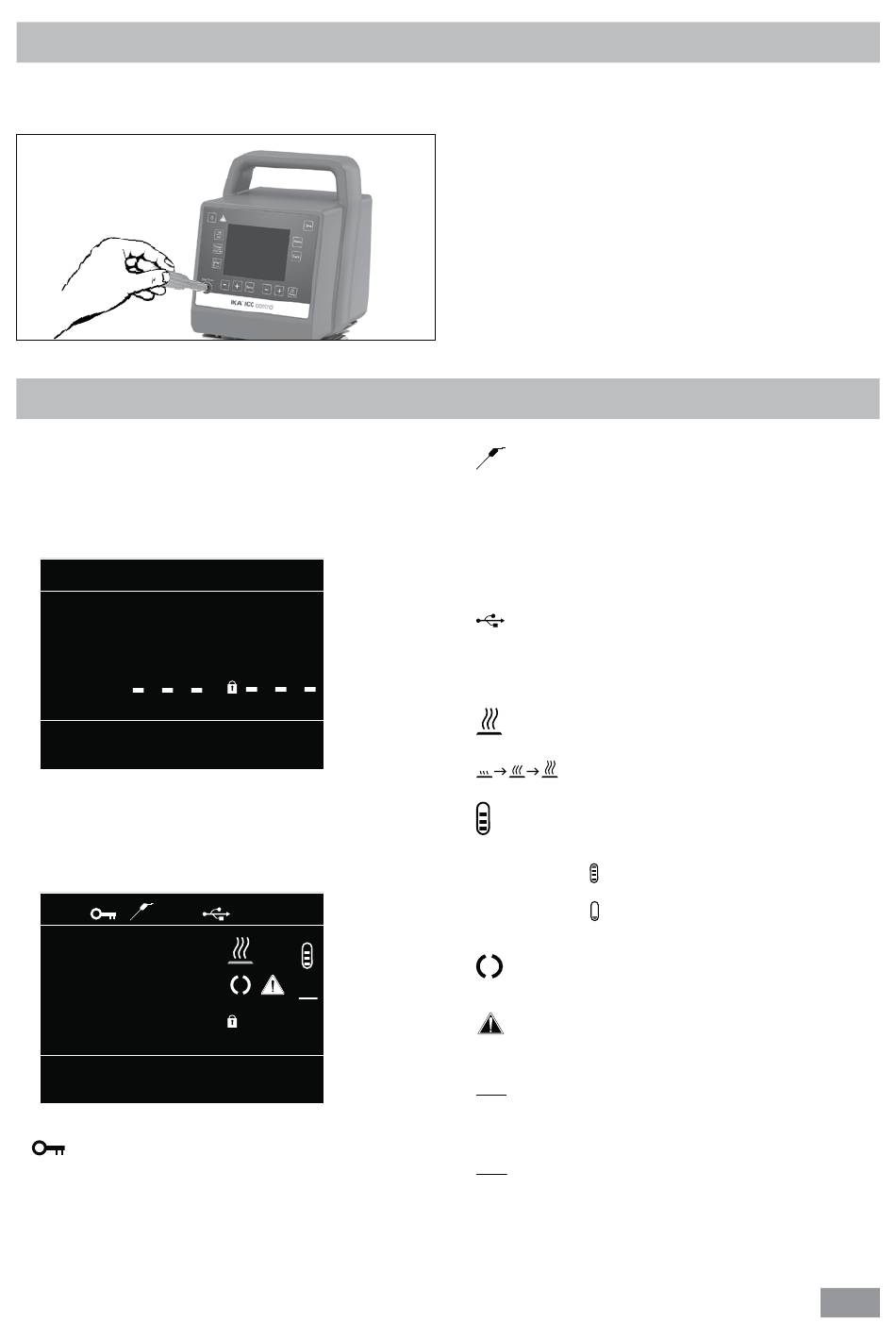

Adjust the safety temperature with screwdriver included
with the device.
Fig. 7

• Working screen at the time of delivery:

The start and information screen (see section "Commis-
sioning") appears for a few seconds after the device is
switched on. After this, the following working screen ap-
pears automatically in the display.
A
0.00
int °C
ext °C
int 5.00
set °C
Fig. 8

• Explanation of symbols on the working screen:

The symbols displayed change depending on the status
and settings of the device. The screen below shows the
most significant symbols on the working screen.
A
100.00
int °C
100.00
ext °C
int 100.00
set °C
Fig. 9
Lock:
This symbol means that the function of the keys for con-
trolling the device are disabled.
The symbol no longer appears if the functions are en-
abled once again by pressing the key button a second
time.

Setting the safety temperature

Operation

Safe Temp °C
1000
Pump rpm
PC
160
Safe Temp °C
1000
Pump rpm
The safety temperature setting will appear on the display.
Factory setting: maximum value
Adjustment range: 0 – 160 °C
Note: The safe temperature limit must always be set to
at least 25 ºC lower than the flash point of the fluid used.
Temperature Sensor:
This symbol appears when the external temperature
sensor is connected.
A Operating Mode:
This symbol indicates the operating mode currently se-
lected (A, B, C, D).
USB:
This symbol means the device is communicating with a
PC via a USB cable.
Heating
This symbol indicates that the heating function is active.
indicate active heating process.
Fluid level
This symbol indicates fluid level.
The red symbol means the fluid is above the maximum
fluid level. Excess fluid should be drained out.
The red symbol means the fluid is below the minimum
fluid level. Please add fluid.
Pump:
This symbol indicates that the pump is activated.
Warning:
This symbol indicates that warning is active.
PC
PC Control:
This symbol means that the device is connected to a
computer and is being controlled from the computer.
PR
Program Control:
This symbol indicates that the device is controlled by a
program (see "PROGRAMS").
