Grid Connection

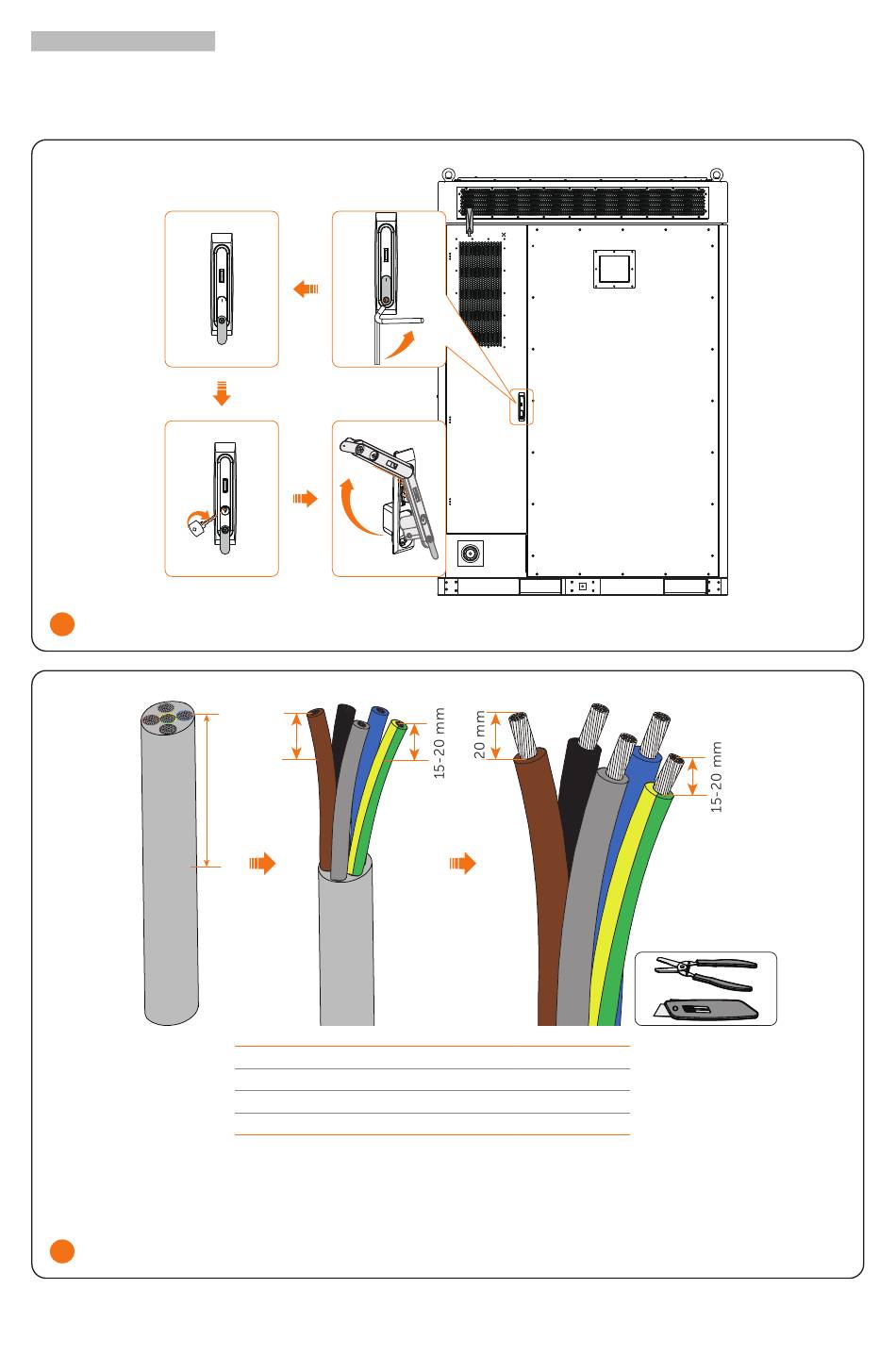

Wiring area Area c in
strictly follow the steps below.
1
Note: Open the rear door. Please keep the keys properly.
Note:
1.
It's important to give the power cable a health check before stripping it.
2.
It's necessary to use controlled motion to strip the insulation down the wire, to prevent damage to the
wires.
3.
Make sure that the insulation layer has been stripped to a sufficient length so that the center conductor
is fully exposed without any damage or nicks. In addition, make sure that no extra insulation remains
2
beyond the connector once it's crimped on.
44
"Parts that Need Wiring"
α
α ≥ 130°
20 mm
160-180 mm
Cable
Cross-sectional area
Five-core cable
L1/L2/L3/N
PE
must be connected GRID wires. Please
L1
Strip length
/
160-180 mm
2
35 mm
20 mm
2
16 mm
15-20 mm
L2
N
L3
PE
