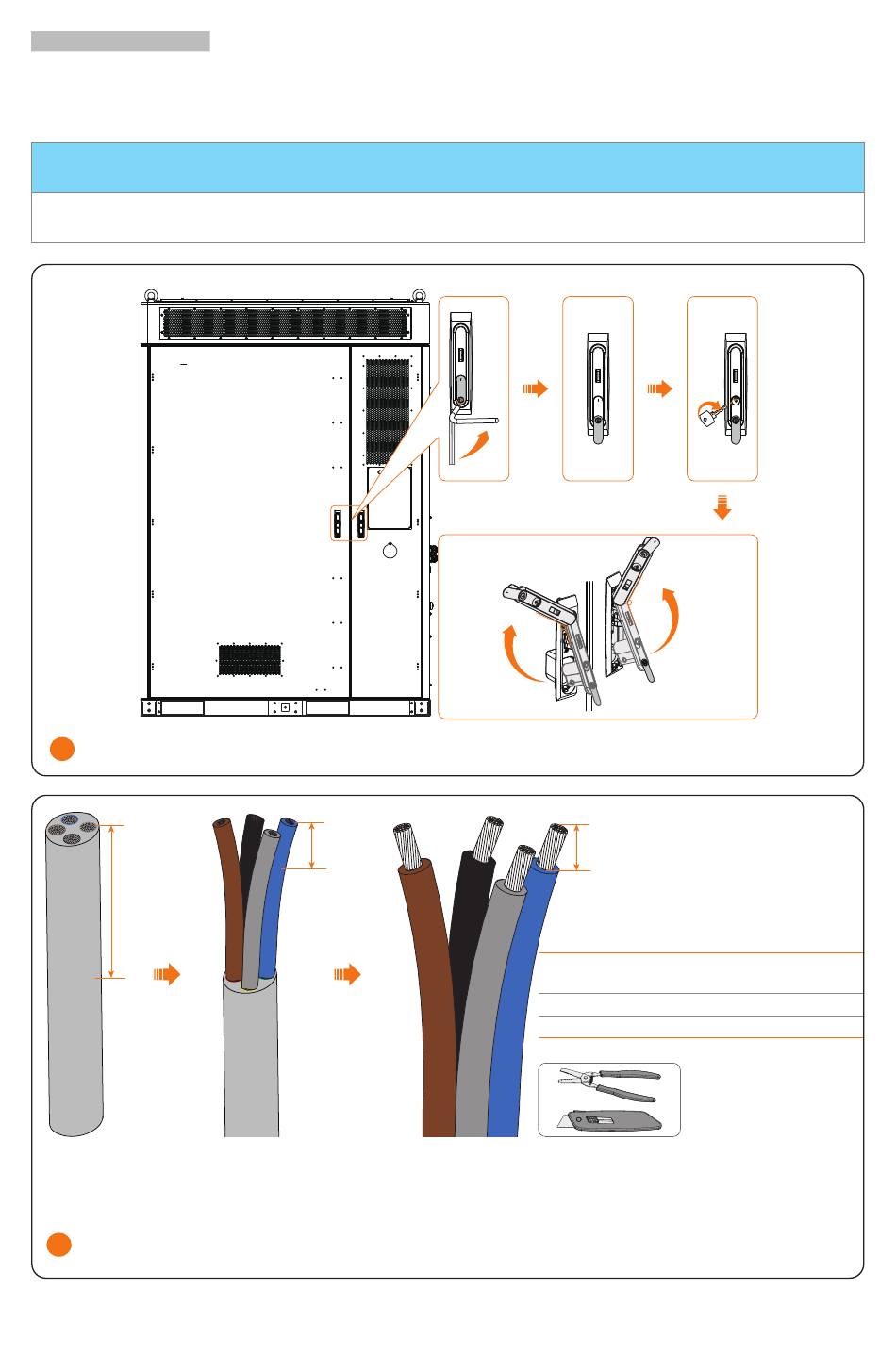

EPS Connection
Wiring area Area b in
follow the steps below.
• Take out the underground electrical wiring which is buried beneath the ground.
1
Note: Open the front door. Please keep the keys properly.
250-270 mm
Note:
1. It's important to give the power cable a health check before stripping it.
2. It's necessary to use controlled motion to strip the insulation down the wire, to prevent damage to the wires.
3. Make sure that the insulation layer has been stripped to a sufficient length so that the center conductor is
2 fully exposed without any damage or nicks. In addition, make sure that no extra insulation remains beyond
the connector once it's crimped on.
40
"Parts that Need Wiring"
L1
20 mm
must be connected EPS wires. Please strictly
NOTICE!
α
L2
N
L3
Four-core cable
L1/L2/L3/N
α ≥ 130°
α
20 mm
Cross-
Cable
sectional area
/
2
35 mm
Strip length
250-270 mm
20 mm
