SolaX Power AELIO-P50B200 Installation Manual page 41

* Markings on the CTs might be R, S and T or L1, L2 and L3. Make sure to clip CT-R/CT-L1
to the L1 wire, CT-S/CT-L2 to the L2 wire, and CT-T/CT-L3 to the L3 wire.

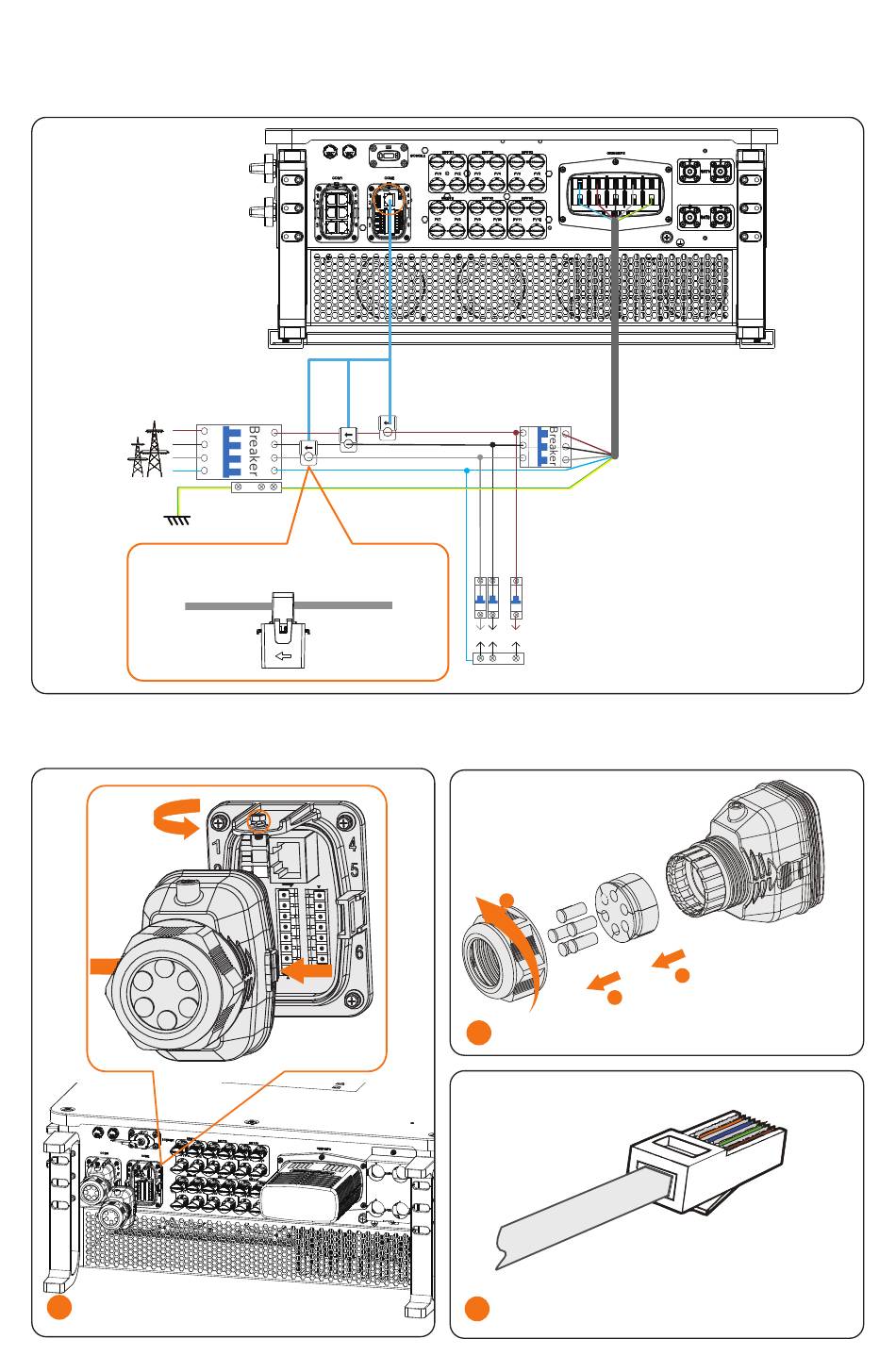

• CT connection diagram
Grid
The arrows direction on the CT must point
to the grid side.
Grid
3. Cable connection steps
1
38
CT-L1
CT-L2
CT-L3
CT
L1
L2
L3
N
E-BAR
L line
Inverter ...
Loads
...
N-BAR for loads
1
2
When not wiring, the sealing plug should be retained.
3
For Meter/CT
3
2
