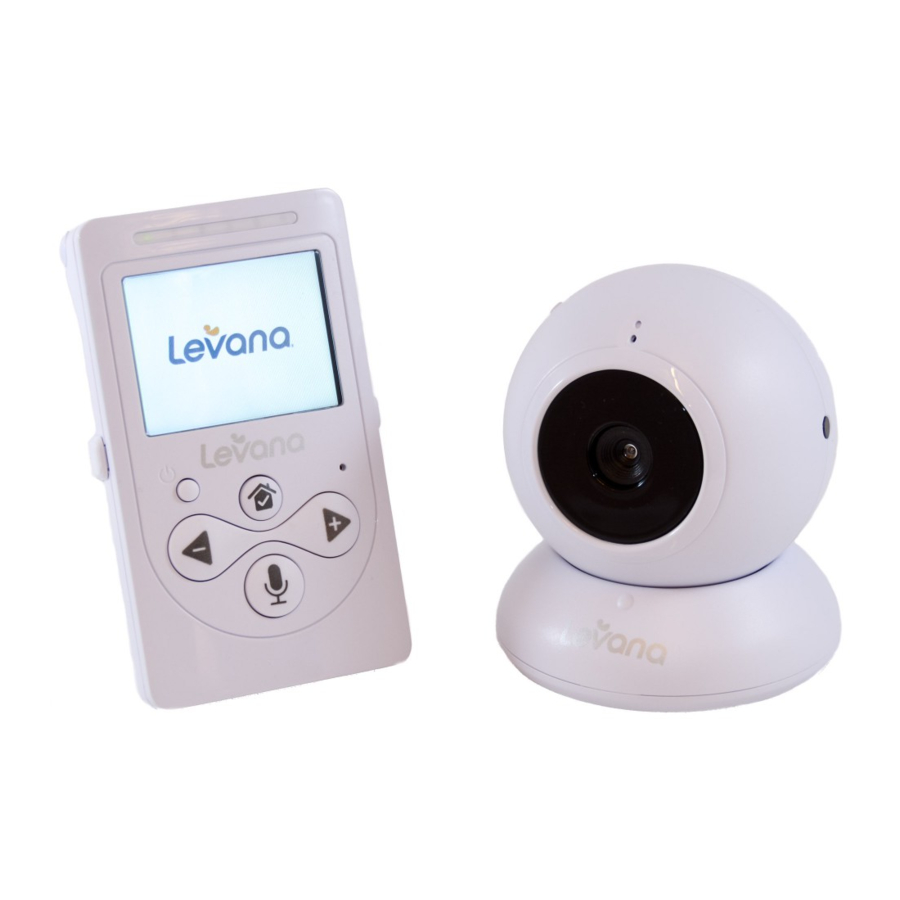

Levana Lila Manual

Connecting Power to the Monitor / Charging Battery

1. Connect the small end of power adapter marked MONITOR into the DC input on the side of the monitor as shown in the diagram.
2. Connect the other end of the adapter into an available wall outlet. For safety reasons, ONLY use the adapters included in the package.
3. Press the POWER / VIDEO ON-OFF BUTTON
4. The icon in the top right corner of the main screen will show you the battery power status.


Connecting Power to the Camera

1. Connect the small end of the powerON / OFF adapter marked CAMERA into the DC Switch input on the back of the camera base as shown in the diagram. For safety reasons, ONLY use the adapters included in the Power LED package.
2. On the side of the camera, slide theDC Input POWER switch UP to the ON position. The POWER LED will light up.

Note: Baby monitors and cameras with power cords should never be hung on or near the crib as it is a strangulation hazard. Power cords should be kept no less than 3 feet away from the crib and the baby's reach at all times.

SCREEN ICONS

OPERATION

Turn on the MONITOR
Press and hold the POWER button on the front of the monitor.

Pairing the Camera(s) and Monitor
The camera and monitor come paired (connected) to each other automatically. However, if upon opening this package the devices do not automatically connect and transmit, you may do so manually.
Note: Before you begin pairing, be sure to have the monitor and the camera(s) side by side.

1. To pair your camera and monitor, press the MENU button. Using the navigational arrows on the front of the monitor, highlight the PAIRING icon and press the MENU button once to select.
2. Use the navigational arrows to select theicon.
3. Press MENU. When you see flashing next to cameraicon, quickly press and hold the PAIRING button on the side of the camera. A checkmark will appear next to camera confirming pairing is successful. Video/audio will be transmitted automatically.
4. To pair additional cameras, repeat steps 1 to 3 and be sure to select camera number, or in the Pairing menu when pairing each additional camera.

Placement of the Monitor
This monitor can be placed on a tabletop.

• You can place the monitor on a tabletop by using the retractable table stand on the back of the monitor. When not in use, simply tuck the table stand away into the back of the monitor until you hear a "click".

Placement of the Camera
This camera can be placed on a tabletop or hung on the wall above the area being monitored.

• Place the camera within 15 feet of the area being monitored for best picture results.
• Do not place objects within 2 feet of the field of vision of the camera as the night vision will not activate correctly if objects are too close.

Mounting the Camera on a Tabletop Safely:
To increase the downward viewing angle of the camera, please insert the included camera wedge to the bottom of the camera (see below).

1. Place the camera on a tabletop no less than 3 feet away from your baby's crib.
2. Feed the power cord down the back of the table or use wall clips (not included) to secure the cord away so the baby cannot reach it.
3. Plug in the power cord, check the monitor to ensure that you are getting a good view of your child and there are no obstructions.

Note: Baby monitors and cameras with power cords should never be hung on or near the crib as it is a strangulation hazard. Power cords should be kept no less than 3 feet away from the crib and the baby's reach at all times.

Mounting the Camera on a Wall Safely:
Before drilling the holes, it is important to check the reception and camera positioning in the intended location on the wall. Ensure you are hanging the camera no less than 3 feet away from baby's crib.
Note: Baby monitors and cameras with power cords should never be hung on or near the crib as it is a strangulation hazard. Power cords should be kept no less than 3 feet away from the crib and the baby's reach at all times.

1. Pre-drill two holes in the wall using a 3/16", 4.8mm drill bit.
2. Insert wall anchors (not included) into each hole and tap gently with a hammer until the anchor is flush with the wall.
3. Insert a screw (not included) into each wall anchor and tighten until the screws only stick out about a 1/2 inch.
4. Plug the power cord into the power input of the camera.
5. Locate the wall mounting holes on the bottom of the camera base.
6. Slide the holes over the screws sticking out of the wall.
7. Confirm that the camera is secure, if it is loose you may have to tighten the screws more.
8. Use wall clips (not included) to secure the power cord away from the crib or the baby's reach.
9. Connect the other end of the adapter into an available wall outlet.

Night Vision
The camera is equipped with NEW Invisible IR (infrared) LEDs which keep the nursery dark. The LEDs are located on the front of the camera and allow you to see up to 12 feet in complete darkness so you can check on your baby at any time of night. The night vision LEDs will activate automatically when the Light Sensor on the camera detects that the light levels are too low.

Adjusting the Camera Angle
The camera has a track built into the base. The track allows the camera to pivot UP and DOWN and turn side to side. Always return the camera to the CENTER POSITION before changing the camera angle.

Note: Camera does not rotate freely 360°. Rotating it past the point where resistance is felt will result in permanent damage to the device.

MONITOR

Volume
Use the navigational arrows to increase /decrease /mute the VOLUME.

• Press the button to INCREASE the volume in LIVE VIEW; the VOLUME icon will display the volume level in the top left corner of the screen.
• Press the button to DECREASE the volume; to MUTE, decrease the volume until the icon appears in the top left corner of the screen.

Using the Talk to Baby™ Two-Way Intercom
With the simple press of a button you can talk to your child at any time without entering the nursery.

1. To talk, press and hold the button on the front of the monitor and release to listen.
2. To talk when using multiple cameras, select the camera in the MENU and press the button, release to listen.

Using PEEP Mode
When in PEEP Mode, the monitor enters standby/sleep mode after 1 minute of inactivity. When sound is detected, the screen changes to live view. There are 4 levels of sensitivity: Off Low , Medium and Sensitive .

• To access live view manually when the screen is off, press the POWER button ONCE.
• PEEP Mode extends the battery life over 72 hours.

1. To set PEEP Mode, press the MENU button. Using the navigational arrows on the front of the monitor, highlight one of the PEEP Mode icons.
2. Use the to toggle to the sensitivity icon of your choice and press the MENU button once to select.
3. To return to continuous live view, press the MENU button.
4. To turn offPEEP Mode, follow step 1 and select .

NOTE: The Peep Mode feature for this monitor only works on the primary camera (Camera 1). When additional cameras are paired with the monitor the Peep Mode will still only activate when sound is heard on the primary camera (Camera 1). The Peep mode will deactivate itself when in sequential/sequence on any monitors that support sequential/sequence mode.

Selecting a Different Camera View

1. To change the camera view, press the MENU button. Using the navigational arrows on the front of the monitor, highlight the CAMERA icon and press the MENU button once to select.

2. Use the navigational arrows to select the CAMERA icon of your choice and press the MENU button once to select.
3. Select to cycle through cameras 1 through 4 and press the MENU button once. Each camera view will appear for 6 seconds per camera.

   • To easily disable camera channels from sequence mode, select a camera then press and hold the or button to select/deselect.
   • The following diagram represents:
     Camera 1 – Paired
     Camera 2 – Paired
     Camera 3 – Paired but disabled
     Camera 4 – Not paired

Setting the Brightness
Brightness Mode sets the brightness of the screen. Reducing the brightness also extends the battery life.

1. To set the Brightness Mode, press the MENU button. Using the navigational arrows on the front of the monitor, highlight the BRIGHTNESS icon and press the MENU button once to select.
2. Use the navigational arrows to select the desired brightness and press the MENU button once to select.

TROUBLESHOOTING

Maintenance

• Clean the surfaces of the camera and monitor with a soft, lint-free cloth
• If the units become dirty, use a lightly damp cloth to wipe surfaces, taking care to not allow water into any openings
• Never use cleaning agents or solvents

SAFETY INSTRUCTIONS

Keep small parts away from children.

Keep small parts away from children.
Strangulation Hazard: Children can become entangled in cords. Power cords should be kept more than 3 feet away from the crib and baby's reach at all times. Baby monitors and cameras with power cords should never be hung on or near the crib.
This product is not a toy and should be kept out of children's reach.
This product contains small parts. Exercise care when unpacking and assembling the product.
Read and Keep Instructions: All the safety and operating instructions should be read before the video baby monitor is operated.
This product cannot replace responsible adult supervision.
Water and Moisture: This product is designed for indoor use only. The unit should not be exposed to rain, moisture, dripping or splashing. No objects filled with liquid should be placed on top of, or beside the product, such as a glass or vase. This item should not be used near water.
Non-Use Periods: Always unplug the AC adapters from the wall outlets during long periods of non-use.
Ventilation: This baby monitor should not be used on a bed, sofa, rug or similar surface that may block the ventilation openings, or be placed in an enclosed area, such as a bookcase or drawer that may impede air flow.
Keep Away from Sources of Heat: This unit should not be exposed to direct heat sources such as a candle, fireplace, radiator, heat register, stove or other appliance that emits heat. The unit should not be left in direct sunlight.
Power Source: This unit should only be used with the AC power adapters included in this package (rated 6V 800mA)
Damage Requiring Service: This unit should be serviced by qualified personnel only when:

1. Objects have fallen or liquid has been spilled into the product
2. The units have been exposed to rain
3. The units do not appear to operate normally or exhibits a distinct change in performance
4. The units have been dropped or the enclosure damaged
