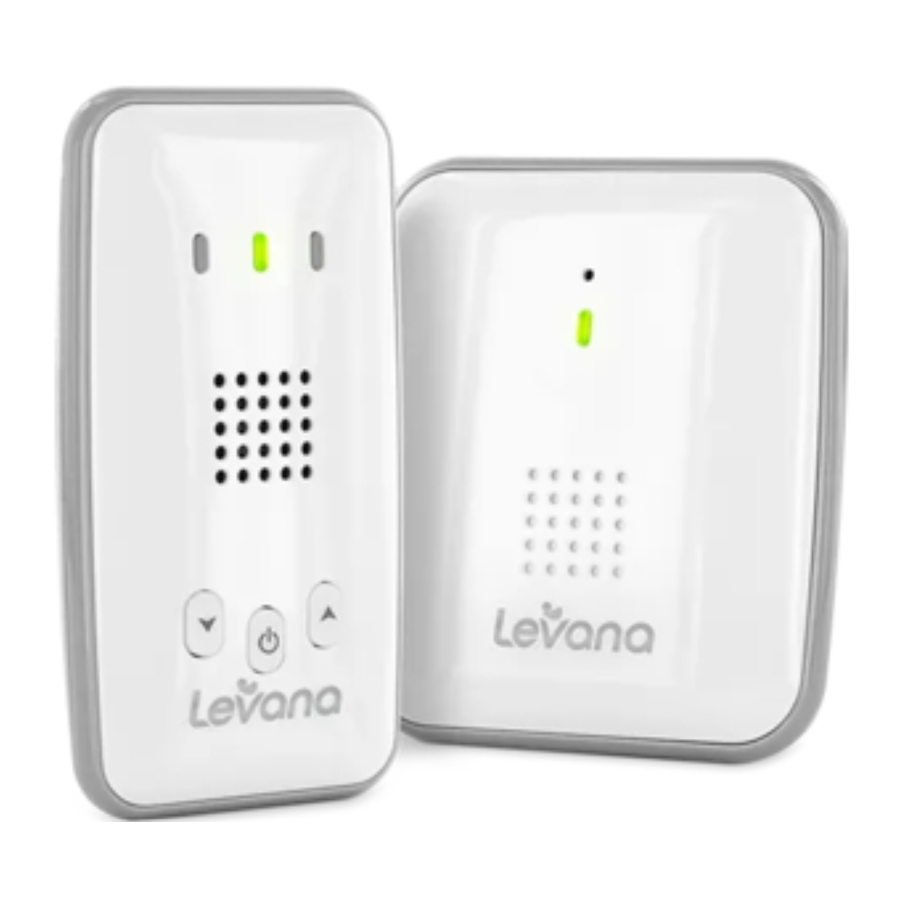

Levana Alix Manual

Also See for Alix:

User manual (12 pages)

Quick start manual (2 pages)

Table of Contents

Contents

1 SAFETY WARNINGS
2 WHAT'S INCLUDED
3 BUTTONS AND CONNECTIONS
4 SETUP
5 MAINTENANCE
6 TROUBLESHOOTING
7 SPECIFICATIONS
8 WARRANTY INFORMATION
9 Documents / Resources
- 9.1 References
- 9.2 Download manual

Levana Alix Manual

SAFETY WARNINGS

Strangulation Hazard!
Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3 ft 0.9 m away).

Keep small parts away from children.
caution Strangulation Hazard: Children can become entangled in cords. Power cords should be kept more than 3 feet away from the crib and baby's reach at all times. Baby monitors with power cords should never be hung on or near the crib.
caution This product is not a toy and should be kept out of children's reach.
caution This product contains small parts. Exercise care when unpacking and assembling the product.
caution Read and Keep Instructions: All the safety and operating instructions should be read before the baby monitor is operated.
caution This product cannot replace responsible adult supervision.
caution Use only with provided power supply.
caution The socket-outlet shall be installed near the equipment and shall be easily accessible.
caution RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE!
caution Dispose of used batteries according to the instructions.
caution Use only batteries/power supplies listed in the user manual.

Water and Moisture: This product is designed for indoor use only. The unit should not be exposed to rain, moisture, dripping or splashing. No objects filled with liquid should be placed on top of, or beside the product, such as a glass or vase. This item should not be used near water.
Non-Use Periods: Always unplug the AC adapters from the wall outlets during long periods of non-use. Ventilation: This baby monitor should not be used on a bed, sofa, rug or similar surface that may block the ventilation openings, or be placed in an enclosed area, such as a bookcase or drawer that may impede air flow.
Keep Away from Sources of Heat: This unit should not be exposed to direct heat sources such as a candle, fireplace, radiator, heat register, stove or other appliance that emits heat. The unit should not be left in direct sunlight.
Power Source: This unit should only be used with the power adapters included in this package (rated 6V ~ 800mA)
Damage Requiring Service: This unit should be serviced by qualified personnel only when:

Objects have fallen or liquid has been spilled into the product
The units have been exposed to rain
The units do not appear to operate normally or exhibits a distinct change in performance
The units have been dropped or the enclosure damaged

WHAT'S INCLUDED

Baby Audio Monitor
2 Power Adapters
Rechargeable Battery
Quick Start Guide
1 year warranty
Lifetime Customer Support

BUTTONS AND CONNECTIONS

BUTTONS AND CONNECTIONS - Part 1

Operating Indicator
Noise Indicator
Reception Indicator
Speaker
Reduce the Volume
Increase the Volume
On/Off
Microphone
Operating Indicator

BUTTONS AND CONNECTIONS - Part 2

Removable Belt Clip
Power Input
Battery Compartment
Power Input
Stand

SETUP

Battery Installation

Slide the Removable Belt Clip down to allow access to the Battery Cover.
Slide Battery Cover down to remove.
Insert the included rechargeable battery
Plug the battery cord into the small jack on the inside of the battery compartment.
Slide the Battery Cover back into place.
Slide the Removable Belt Clip back into place.

For extended periods of non-use, please remove the battery from the Parent Unit.

Connecting the Power Adapters

Connect the Power Adapter to the Power Input on the side of the Parent Unit. Power LED will flash red.
Connect the Power Adapter to the Power Input on the back of the Child Unit. Power LED will be a solid red.

Note: Baby monitors with power cords should never be hung on or near the crib as it is a strangulation hazard. Power cords should be kept no less than 3 feet away from the crib and the baby's reach at all times.

Turn the Parent Unit On/Off

Press and hold the On/Off Button.

	Flashing Red = Parent Unit Charging
	Solid Red = Battery Fully Charged
	Flashing Green = Searching for Signal Solid Green = Strong Signal
	Flashing Green = Sound detected Light off = No sound detected

Mounting the Child Unit on a Tabletop Safely

SETUP - Mounting Child Unit on a Tabletop Safely

Place the Child Unit on a tabletop no less than 3 feet away from your baby's crib.
Feed the power cord down the back of the table or use wall clips (not included) to secure the cord away so the baby cannot reach it.
Plug in the power cord, check the monitor to ensure that you can hear your child.

Placement of the Parent Unit

The monitor can be used two different ways; attached to your belt or mounted on the wall.
SETUP - Placement of the Monitor

Carry the monitor on your belt by sliding the clip over your belt.
Hang the monitor from a screw on the wall using the screw mounting hole in the belt clip.

Power-saving PEEP mode

Voice activated technology helps conserve battery life by putting the system into hibernation mode when sounds are not detected for 30 seconds. If your child starts to cry or make noise, the unit will automatically detect it and the Noise Indicator on the Parent Unit will flash. The preset noise level is preset to a level comparable to a casual conversation.

Flashing Green = Sound detected
Light off = No sound detected

MAINTENANCE

Clean the surfaces of the Parent and Child units with a soft, fluff-free cloth.
If the units become dirty, use a lightly damp cloth to wipe surfaces, taking care to not allow water into any openings.
Never use cleaning agents or solvents.

TROUBLESHOOTING

ISSUE	POSSIBLE SOLUTION
Equipment does not function	Confirm that the Parent and Child units are ON The battery may be depleted; charge battery The power adapter(s) may not be properly connected
No reception	Camera and monitor may not be properly paired; move the Parent and Child units closer together
Static Reception Interference	The Parent and Child units may be too far apart The battery power may be too low Other electronic devices may be interfering with the signal The Parent and/or Child unit may be placed too close to many metal objects
Static/Beeping Noise	Battery power may be too low
The rechargeable battery will not charge	The power adapter may not be connected Battery pack may not be properly connected inside the battery compartment

SPECIFICATIONS

PARENT UNIT		CHILD UNIT
Wireless Frequency	Digital	Maximum Wireless Range	1000 ft
Channel Frequencies	2.4 GHz	Optimum Wireless Range	200 ft
Speaker	Yes	Speaker	No
Microphone	No	Microphone	Yes
Battery Operable	Yes, Rechargeable	Battery Operable	No
Battery Type	NiMH	Operating Temperature	32°F to 104°F (0°C to 40°C)
Battery Life	8 Hrs	Housing Material	ABS Plastic
Charging Time	8 Hrs	Housing Color	White/Gray
PEEP Mode	Yes	Power Adapter	5V ~ 600mA
Operating Temperature	32°F to 104°F (0°C to 40°C)	Dimensions	3.54 x 2.75 x 1.5 in 8.99 x 6.98 x 3.81 cm
Housing Material	ABS Plastic	Weight	0.1 lbs
Housing Color	White/Gray
Power Adapter	5V ~ 600mA
Dimensions	4.25 x 2.25 x 1.25 in 10.79 x 5.71 x 3.17 cm
Weight	0.15 lbs
