Levana Ovia Manual

WHAT'S INCLUDED

Ovia (O-via)
Meaning: Egg

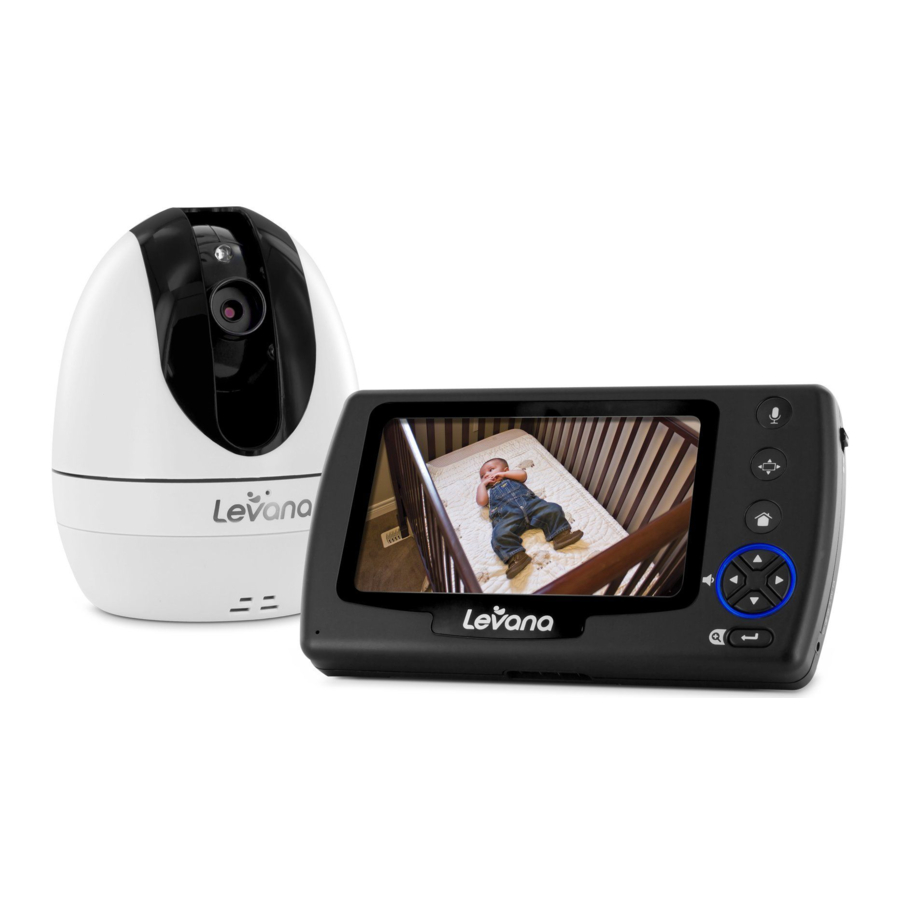

• Pan/Tilt/Zoom Night Vision Camera
• Baby Video Monitor
• Rechargeable Battery
• 2 Power Adapters
• Micro SD Card with Adapter
• Quick Start Guide
• 1 Year Warranty
• Lifetime Customer Support

Battery life of 24 hours based on 10 audio activations while in power save (PEEP) mode. Battery lasts an average of 5 hours with continuous audio/video usage.
Night vision range up to 15ft under ideal conditions. Objects at or beyond this range may be partially or completely obscured, depending on the camera application.
Optimum range is 150 feet when signal is passing through walls or floors. Microwave ovens (when in use) may cause signal disruption at close range. Buildings with metal frames may also cause signal disruption. Maximum transmission range is 750ft.
Strangulation Hazard: Children can become entangled in cords. Power cords should be kept more than 3 feet away from the crib and baby's reach at all times. Baby monitors/cameras with power cords should never be hung on or near the crib. This product is not a toy.
This product contains small parts. Exercise care when unpacking and assembling the product.
This product does not replace responsible adult supervision. Check on your child at regular intervals and make sure your monitor is always adequately charged.

MONITOR

1. LCD SCREEN
2. MICROPHONE
3. POWER ON/OFF
4. TALK TO BABY™ Touch and hold to talk, release to listen
5. LOCK / UNLOCK BUTTON Disables ALL function buttons in the LOCK position

6. PAN / TILT
7. MENU
8. COLOR-CHANGING LED RING Ring changes color with sound intensity
9. DIRECTIONAL ARROWS / VOLUME CONTROL
10. POWER INPUT

CAMERA

SETUP

Install the battery

Connecting Power to the Monitor / Charging Battery

1. Connect the small end of power adapter marked MONITOR into the DC input on the side of the monitor as shown in the diagram. Connect the other end of the adapter into an available wall outlet. For safety reasons, ONLY use the adapters included in the package.
2. Press and hold the POWER button on the top of the monitor to turn the monitor ON.
3. The icon in the top right corner of the main screen will show you the battery power status.
4. The LED Ring on the front of the monitor also indicates the battery power status.

SOLID BLUE = BATTERY FULLY CHARGED
SLOW FLASHING BLUE = BATTERY CHARGING
QUICK FLASHING BLUE = BATTERY LOW
FLASHING PINK = PAIRING UNSUCCESSFUL

Connecting Power to the Camera

1. Take the second power adapter and connect the small end of the power adapter marked CAMERA into the DC input on the side of the camera. For safety reasons, ONLY use the adapters included in the package.
2. On the side of the camera, slide the POWER switch LEFT to the ON position. The POWER LED will light up.

Note: Baby monitors and cameras with power cords should never be hung on or near the crib as it is a strangulation hazard. Power cords should be kept no less than 3 feet away from the crib and the baby's reach at all times.

Get the Most Out of Your Rechargeable Battery

• Fully charge battery (4 hours) before first use.

• To maximize battery life, charge battery before battery is fully drained.

• Avoid extreme heat or cold as this will affect the life of the battery.

• Turn LCD screen OFF; press POWER button on the top of the monitor ONCE.

• PEEP Mode: After 60 seconds of inactivity, monitor enters standby/sleep mode.

• Adjustable Brightness: Decreasing screen brightness will extend battery life.


SCREEN ICONS

OPERATION

Turn the MONITOR ON/OFF

• Press and hold the POWER button on the TOP of the monitor to turn the monitor ON.
• Press and hold the POWER button again to turn OFF the monitor.

Pairing the Camera(s) and Monitor
The camera and monitor come paired (connected) to each other automatically. However, if upon opening this package the devices do not automatically connect and transmit, you may do so manually. To pair additional cameras, repeat steps 1 to 4 and be sure to assign a different camera number to each additional camera.
Note: Before you begin pairing, be sure to have the monitor and the camera(s) side by side.

Placement of the Monitor
This monitor can be placed on a tabletop.

• You can place the monitor on a tabletop by using the retractable table stand on the back of the monitor. When not in use, simply tuck the table stand away into the back of the monitor until you hear a "click".

Placement of the Camera
This camera can be placed on a tabletop or hung on the wall above the area being monitored.

• Place the camera within 15 feet of the area being monitored for best picture results.
• Do not place objects within 2 feet of the field of vision of the camera as the night vision will not activate correctly if objects are too close.

Mounting the Camera on a Tabletop Safely:

1. Place the camera on a tabletop no less than 3 feet away from your 3_ft baby's crib.
2. Feed the power cord down the back of the table or use wall clips (not included) to secure the cord away so the baby cannot reach it.
3. Plug in the power cord, check the monitor to ensure that you are getting a good view of your child and there are no obstructions.

Note: Baby monitors and cameras with power cords should never be hung on or near the crib as it is a strangulation hazard. Power cords should be kept no less than 3 feet away from the crib and the baby's reach at all times.

Mounting the Camera on a Wall Safely:
Before drilling the holes, it is important to check the reception and camera positioning in the intended location on the wall. Ensure you are hanging the camera no less than 3 feet away from baby's crib.
Note: Baby monitors and cameras with power cords should never be hung on or near the crib as it is a strangulation hazard. Power cords should be kept no less than 3 feet away from the crib and the baby's reach at all times.

1. Pre-drill one hole in the wall using a 3/16", 4.8mm drill bit.
2. Insert a wall anchor (not included) into the hole and tap gently with a hammer until the anchor is flush with the wall.
3. Insert a screw (not included) into the wall anchor and tighten until the screw only sticks out about a 1/2 inch.
4. Plug the power cord into the power input of the camera.
5. Locate the wall mounting hole on the bottom of the camera base.
6. Slide the hole over the screw sticking out of the wall.
7. Confirm that the camera is secure, if it is loose you may have to tighten the screw more.
8. Use wall clips (not included) to secure the power cord away from the crib or the baby's reach.
9. Connect the other end of the adapter into an available wall outlet.

Night Vision
The camera is equipped with NEW Invisible IR (infrared) LEDs which keep the nursery dark. The LEDs are located on the front of the camera and allow you to see up to 15 feet in complete darkness so you can check on your baby at any time of night. The night vision LEDs will activate automatically when the Light Sensor on the side of the camera detects that the light levels are too low.

Adjusting the Camera Angle - PTZ
The camera is equipped with Pan / Tilt / Zoom (PTZ). You can adjust the angle 270° degrees horizontal and 110° degrees vertical from the center position.

Volume Control

Note: Placing the monitor and camera too close together will create feedback. DECREASE or MUTE the volume and move the camera away from the monitor.

Using the ZOOM Function

Option 1
From main viewing screen:

Option 2
From main Menu:

Using the Talk to Baby™ Two-Way Intercom
With the simple touch of a button you can talk to your child at any time without entering the nursery.

Note: Placing the monitor too close to your mouth will create feedback. Please keep monitor at least 6 inches from your mouth to ensure good sound quality.

1. To talk, touch and hold the button on the front of the monitor and release to listen.
2. To talk when using multiple cameras, select the camera in the MENU and touch the button, release to listen.

Setting a Lullaby
Choose from three different lullabies to soothe your baby to sleep.

Using PEEP Mode
When in PEEP Mode, the monitor enters standby/sleep mode after 60 seconds of inactivity. When sound is detected, the screen changes to live view. In Quad Screen mode, use the to select the camera that will be triggered by sound.

• To access live view manually when the screen is off, press the POWER button ONCE.
• PEEP Mode extends the battery life up to 24 hours.

NOTE: The Peep Mode feature for this monitor only works on the primary camera (Camera 1). When additional cameras are paired with the monitor the Peep Mode will still only activate when sound is heard on the primary camera (Camera 1). The Peep mode will deactivate itself when in sequential/sequence on any monitors that support sequential/sequence mode.

Changing the Camera View

• When in Quad View, volume +/– and PTZ functions default to camera 1 unless another camera has been selected.


Setting the Brightness
Brightness Mode sets the brightness of the the screen. Brightness Mode also extends the battery life.

Sound Sensitivity Settings
Sensitivity Mode allows you to adjust the sensitivity of the sound the that the camera picks up. The LED Ring on the front of the monitor also indicates how loud the sound in the room is with colors.

Record Video & Snap Photos Instantly
Capture precious moments as they are happening with your choice of recorded video or still photos on the included micro SD card. No need to scramble for a camera! Simply select 1 of 4 camera views (if more than one camera is connected) and follow the instructions below.

Taking a picture

To exit CAMERA mode, touch MENU once to enter MENU, then again to exit.

Capturing video

To exit VIDEO mode, touch MENU once to enter MENU, then again to exit.

Viewing Saved Photos & Videos - Monitor
You can view your saved photos and videos that are on the included SD card from the monitor or on your computer using the included SD Card Adapter.

Viewing/Deleting pictures - Monitor

Viewing/Deleting video - Monitor

Viewing Saved Photos & Videos - Computer
You can view your saved photos and videos that are on the included SD card from your computer using the included SD Card Adapter.
**If you do not have an SD card slot on your computer, an SD Card Reader (not included) will be required.

1. Turn the monitor off and remove the battery cover on the back of the monitor. Remove the battery to expose the Micro SD card.
2. To remove the SD card, push up on the bottom of the SD card until you hear a "click" as it is on a spring system. Slide the card down to remove.
3. Place the Micro SD card in the SD Card Adapter provided and insert the SD Card Adapter in your computer or SD Card Reader.
4. To re-install the card, slide it up until you hear a "click".

Checking SD card space

Format SD card

Default Factory Settings

Contacting Customer Support
Customer Support is just a click away whenever you need it! Our customer support team can be reached by live web chat or on our website at www.mylevana.com/support. Our experts will be happy to assist you in English, French and Spanish.

TROUBLESHOOTING

Maintenance

• Clean the surfaces of the camera and monitor with a soft, lint-free cloth
• If the units become dirty, use a lightly dampened cloth to wipe surfaces, taking care to not allow water into any openings
• Never use cleaning agents or solvents

SPECIFICATIONS

MONITOR

CAMERA

POWER
Adapter (for FCC, IC): BLJ5W059100P—U; Input: 100– 240VAC 50/60Hz 150mA; Output: 5.9V 1A; Adapter(for EU): BLJ5W059100P-V; Input: 100-240VAC 50/60 Hz 150 mA; Output: 5.9V, 1A

1. Use only with provided power supply;
2. The socket-outlet shall be installed near the equipment and shall be easily accessible;

Battery: Model: 464854P, Li-ion battery, 3.7V 1700mAh 6.290Wh, Limited charge voltage: 4.2V. OR Battery: Model: 495255AR; Li-ion battery, 3.7V 1700mAh 6.290Wh, Limited charge voltage: 4.2V. OR Battery: Model: 495255; Li-ion battery, 3.7V 1700mAh 6.290Wh, Limited charge voltage: 4.2V.

Dispose of used batteries according to the instructions; Use Only Batteries/Power Supplies Listed in the user Instructions. Risk of explosion if battery is replaced by an incorrect type; This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

Water and Moisture: This product is designed for indoor use only. The unit should not be exposed to rain, moisture, dripping or splashing. No objects filled with liquid should be placed on top of, or beside the product, such as a glass or vase. This item should not be used near water.
Non-Use Periods: Always unplug the AC adapters from the wall outlets during long periods of non-use.
Ventilation: This baby monitor should not be used on a bed, sofa, rug or similar surface that may block the ventilation openings, or be placed in an enclosed area, such as a bookcase or drawer that may impede air flow.
Keep Away from Sources of Heat: This unit should not be exposed to direct heat sources such as a candle, fireplace, radiator, heat register, stove or other appliance that emits heat. The unit should not be left in direct sunlight.
Power Source: This unit should only be used with the AC power adapters included in this package (rated 5.9V, 1A)
Damage Requiring Service: This unit should be serviced by qualified personnel only when:

1. Objects have fallen or liquid has been spilled into the product
2. The units have been exposed to rain
3. The units do not appear to operate normally or exhibits a distinct change in performance
4. The units have been dropped or the enclosure damaged
