INTRODUCTION Digital Wireless 2.4" Video Baby Monitor w/ Talk To Baby Intercom and Rechargeable Monitor Congratulations! You’ve just taken a step to help ensure your child’s safety and enjoy more of your child’s special moments. Please take a few minutes to read this manual so you can use this monitor to its full potential. -
Page 4: Disclaimers
TABLE OF CONTENTS continued... TROUBLESHOOTING............................16 FEATURE NOTES ..............................16 SPECIFICATIONS ..............................17 NOTES SECTION ..............................20 DRILLING TEMPLATE ............................21 COLORING PAGE ..............................23 DISCLAIMERS CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (BACK). NO USER SERVICEABLE PARTS INSIDE. -
Page 5: What's Included
GENERAL CARE AND MAINTENANCE • Do not overload electrical outlets or extension cords. This can result in fire or electric shocks • Keep all parts and accessories out of young children’s reach • Fingerprints or dirt on the lens surface can adversely affect camera performance. Avoid touching the lens surface with your fingers • Should the lens become dirty, use a blower to blow off dirt and dust, or a soft, dry cloth to wipe off the lens • Keep the camera dry. Precipitation, humidity, and other liquids contain minerals which will corrode electronic circuits • Do not use or store in dusty, dirty areas • Do not store in hot areas. High temperatures can shorten the life of electronic devices and warp or melt certain plastics WHAT’S INCLUDED Wireless Monitor Wireless Camera ENERGY STAR® Crib Mount Adapter for Monitor • Rechargeable Lithium-Ion Battery (built-in) • Instruction Manual • Base Charging Station... -
Page 6: Fcc Statement
FCC APPROVED This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 7 You can power the camera with a rechargeable battery (not included, Model # LV-TW300-B) and use the monitor’s fold-out stand to watch from any table or counter. You’ll always know that your precious one is safe.
-
Page 8: Knowing Your Baby Monitor

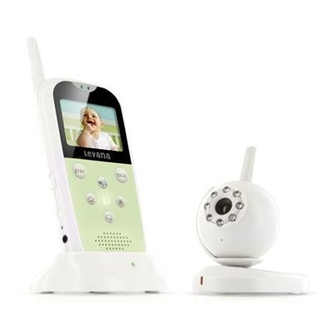

KNOWING YOUR BABY MONITOR MONITOR 1. Antenna 2. Power LED Indicator Lights 3. 2.4" LCD screen 4. Standby • Pressing this button turns off the monitor’s LCD screen and audio until noise is detected near the camera. Then the monitor alerts you, preserving battery power 5. Talk • Pressing this button allows you to speak to your baby through the monitor 6. - Page 9 KNOWING YOUR BABY MONITOR 13. Pair Switch • Pressing this button gives 30 seconds to connect the monitor to the camera (signal search) 14. Charging Conductors • The monitor charges through these contacts when it is connected to the cradle 15. ON/OFF Switch • Switches monitor on and off 16. Charge LED Light • Lights up when monitor is being charged 17. DC 5V • Plug area for monitor – plugs the ENERGY STAR®...
-
Page 10: Camera Setup
KNOWING YOUR BABY MONITOR 6. Speaker • Transmits your voice to your baby when using the “talk” function on the monitor 7. Pair • Pressed within 30 seconds of pressing pair button on monitor to connect the camera to the monitor (signal search) 8. Camera Mount • Can be mounted on a table top or wall mounted 9. Power Connection • Connects the camera to a power source (battery or power adapter) 10. -
Page 11: Mounting The Camera
CAMERA SETUP Mounting the Camera to a Wall or Table The mounting equipment gives you the option to put the camera on a table top or mount and secure it on a wall. To Mount the Camera to a Wall or Table Top: 1. -
Page 12: Using Optional Battery
CAMERA SETUP Using the Camera’s Battery Power You have the option to purchase a rechargeable battery pack that can be attached to the base of the camera. When the battery life is low the LED on the front of the camera will be red and faded to warn you. The battery pack can be plugged in to charge on its own, or charge while connected to the camera. -
Page 13: Night Vision
CAMERA SETUP Using Night Vision The camera has eight night vision LEDs so you can see a clear picture in the dark. This night vision uses the power of infrared light, which is 100% safe for babies. The camera has a light sensor and will activate the night vision only when it gets dark. When you turn off the lights, you will notice a faint red glow in the front of the camera;... -
Page 14: Standing Monitor Up
MONITOR SETUP Caring For Your Battery To get the longest battery life and the best battery performance, fully charge the battery before use. Do not reconnect the power until the battery has fully drained. This is especially important to do the first few times you use your TWINKLE300. -
Page 15: Turning Monitor On
1. Make sure the battery is charged or the monitor is plugged in. 2. To turn on monitor, move the ON/OFF switch to ON. 3. The top green LED light will light up along with the LCD screen, which will read LEVANA and display the logo. 4. If the camera is already plugged in the monitor should immediately find the camera and display the image. -
Page 16: Alarm
MONITOR SETUP Audio Information (Automatic Mute) This unit is not designed to be transmitting audio all of the time. If there is a low volume level (background noise) the monitor will turn off the audio to save power and avoid having noise constantly coming through the monitor. This is most helpful at night so that only when there are sounds in the baby’s room will the audio activate and be heard through the monitor. -
Page 17: Talk To Baby Intercom
MONITOR SETUP Talk to Baby Intercom Function The TWINKLE300 allows for two way communication. This means that you can talk into the monitor and your voice will be heard through the camera, and that your child can talk back to you. This is a good function for toddlers and older children. -
Page 18: Troubleshooting
TROUBLESHOOTING If the signal is poor, or there is interference: • If there is a microwave oven or other electrical devices being used in the path between the camera and monitor, they may affect the signal range. Try powering off the other electrical devices to see if this improves performance • Pair the monitor and camera again to see if this resolves the issue • Make sure the camera and the monitor are within range of each other (range of approximately 100 ft; 200 ft in a clear line of sight) The screen is black and the buttons are not working: • Make sure you are not in Standby Mode • Make sure the monitor is charged and switched on The screen says there is no signal: • Make sure the camera and monitor are plugged into a working power source • Try turning the camera and monitor OFF and ON again... -
Page 19: Specifications
MONITOR SPECIFICATIONS Monitor Type Color TFT-LCD Screen Size 2.4" Wireless Frequency 2.4GHz Channel Frequencies 2.402GHz~2.480GHz Number of Cameras Supported Audio/Video Output Resolution 320 x 240 Pixels(LCD) Built in Microphone Built in Speaker Audio Activated Alert Motion Activated Alert Adjustable Alarm Volume Control Adjustable Speaker Volume Control Auto-Scanning Battery Operable... - Page 20 MONITOR SPECIFICATIONS Adjustable Color Adjustable V-Hold Manual Sync Button Power Indicator LED Charging Indicator LED Built in Stand Operating Temperature 14°F ~ 140°F Operating Humidity 10%-85% Housing Material Housing Color White and baby aqua Monitor Power Input DC 5V 1A Power Adapter Input AC 100-240V- 50/60Hz Dimensions...
- Page 21 CAMERA SPECIFICATIONS Optimum Wireless Range (Line of Sight) 100ft Wireless Frequency 2.4GHz TV System NTSC Focal Length 2.9 mm Focus Type Fixed Optimal Focal Distance Manual Sync Button Microphone Motion Detection Audio Activation Sun Shield Housing Material Housing Color White and baby aqua Electronic shutter speed 1/60 ~ 1/15,000 sec Signal/Noise Ratio...
-
Page 22: Notes Section
NOTE SECTION... -
Page 23: Drilling Template
DRILLING TEMPLATE DRILL HOLES IN CIRCLED AREAS... - Page 24 DRILLING TEMPLATE DRILL HOLES IN CIRCLED AREAS...
-
Page 25: Coloring Page
COLORING THE STORY OF LEVANA Levana, whose name means "to rise", was an ancient Roman goddess of newborn children, a protector and care-giver who devoted her existence to the well-being of infants. Levana would send children pleasant dreams in their sleep and keep a watchful eye. She knew that the rise of a child from its sleep brought a series...
