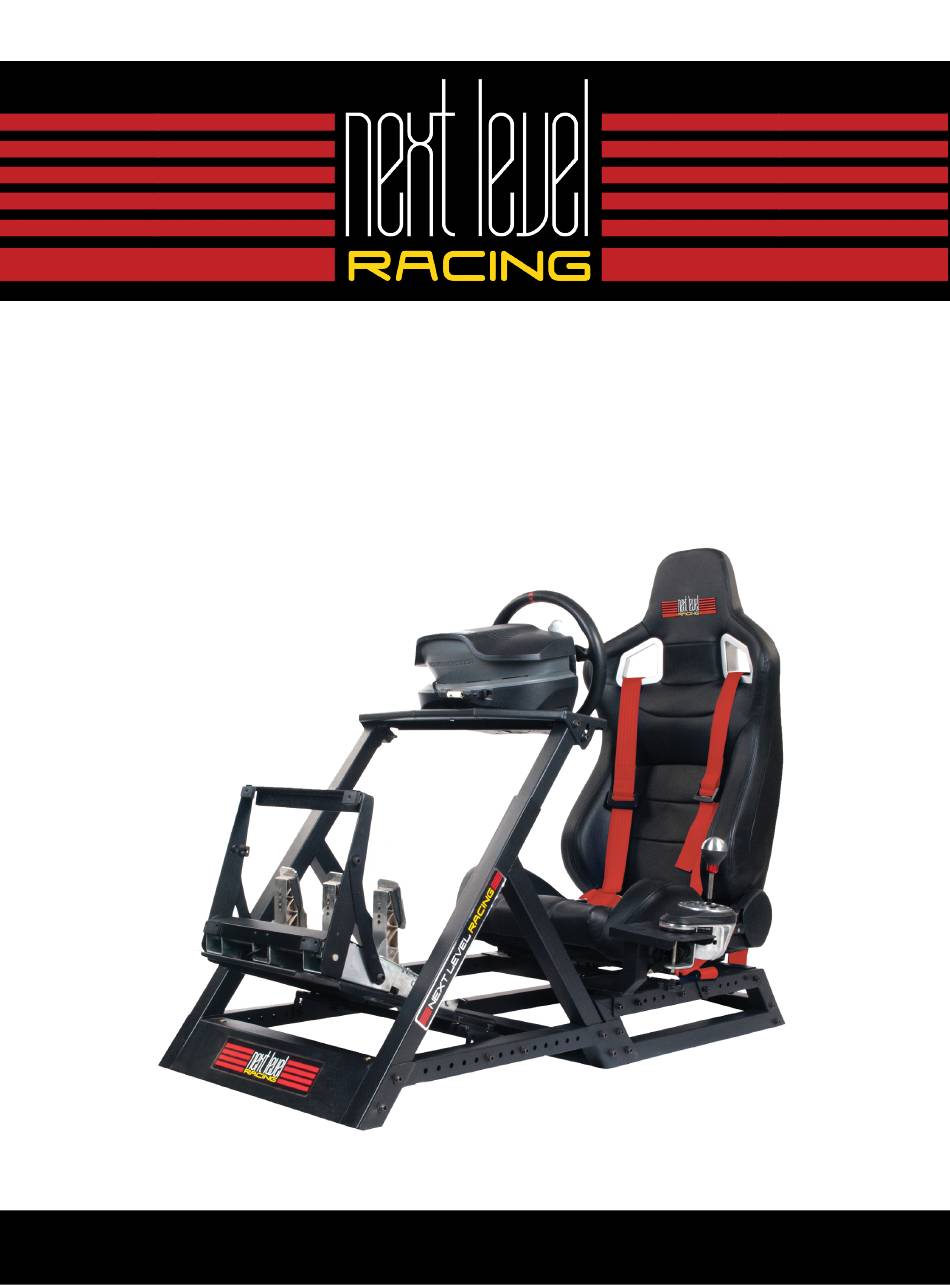

- Page 1 INSTRUCTION MANUAL FOR NEXT LEVEL RACING GTTRACK For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 2 GTTRACK Thank-you for purchasing a If you require any support with your product please contact our friendly team at: support@nextlevelracing.com for a prompt response. WARNING -Please do not use power tools for assembly as over tightening can damage your frame.
- Page 3 GTTRACK What’s In The Box: 1 X M8 ALLEN KEY 36 X M8 60MM 1 X M6 ALLEN KEY 2 X M8 110MM 1 X WRENCH 12 X M8 15MM 2 X M8 20MM 1 X SMALL WRENCH 12 X M6 15MM...
- Page 4 GTTRACK What’s In The Box: MOTION PACK 6 X M8 60MM 2 X M8 15MM 4 X M8 20MM 1 X MOTION SHIFTER ARM 12 X M8 WASHERS 2 X M8 NUTS WARNING IF YOU OWN A TRACTION PLUS MOTION...
- Page 5 Step 1: 8 X M8 X 60MM Step 2: 2 X M8 X 15MM 4 X M8 X 60MM For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 6 GTTRACK Step M1: SKIP STEP M1 & M2 IF YOU DON'T HAVE MOTION INSTALL MOTION TO FRAME BEFORE ATTACHING SEAT 3 X M8 X 60MM REPEAT ON OPPOSITE SIDE For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 7 GTTRACK Step M2: INSTALL SEAT TO MOTION PLATFORM 2 X M8 X 20MM REPEAT ON OPPOSITE SIDE CONTINUE TO STEP 3 For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 8 GTTRACK Step 3: HAND BRAKE PLATE SHIFTER PLATE 3 X M8 X 60MM 3 X SPIKED WASHERS For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 9 GTTRACK Step M3: SKIP STEP M3 & M4 IF YOU DON'T HAVE MOTION 2 X M8 X 60MM Step M4: 3 X M8 X 60MM 3 X SPIKED WASHERS For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 10 GTTRACK Step 4: 4 X M8 X 15MM 4 X M8 X 60MM Step 5: 8 X M8 X 60MM For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 11 GTTRACK Step 6: 4 X M8 X 15MM Step 7: 3 X M8 X 60MM 3 X SPIKED WASHERS For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 12 GTTRACK Step 8: 4 X M8 X 60MM For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 13 GTTRACK Step 9: OPTIONAL BUTTKICKER MOUNT -SKIP IF YOU HAVE MOTION 2 X M8 X 60MM For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 14 GTTRACK Step 10: 2 X M8 X 20MM STEP M5: MOTION USERS MUST ATTACH LAP BELTS TO MOTION PLATFORM, NOT COCKPIT FRAME 2 X M8 X 15MM REPEAT ON OPPOSITE SIDE For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 15 GTTRACK TIPS: PEDAL STRENGTHENING BOLT ADJUSTABLE WHEEL ANGLE PEDAL PLATE ANGLE & LENGTH ADJUSTMENT For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
-
Page 16: Need Assistance
GTTRACK NEED ASSISTANCE? If you require any support with your product please contact our friendly team at: support@nextlevelracing.com for a prompt response. For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com... - Page 17 GTTRACK ASSEMBLY VIDEO: For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
